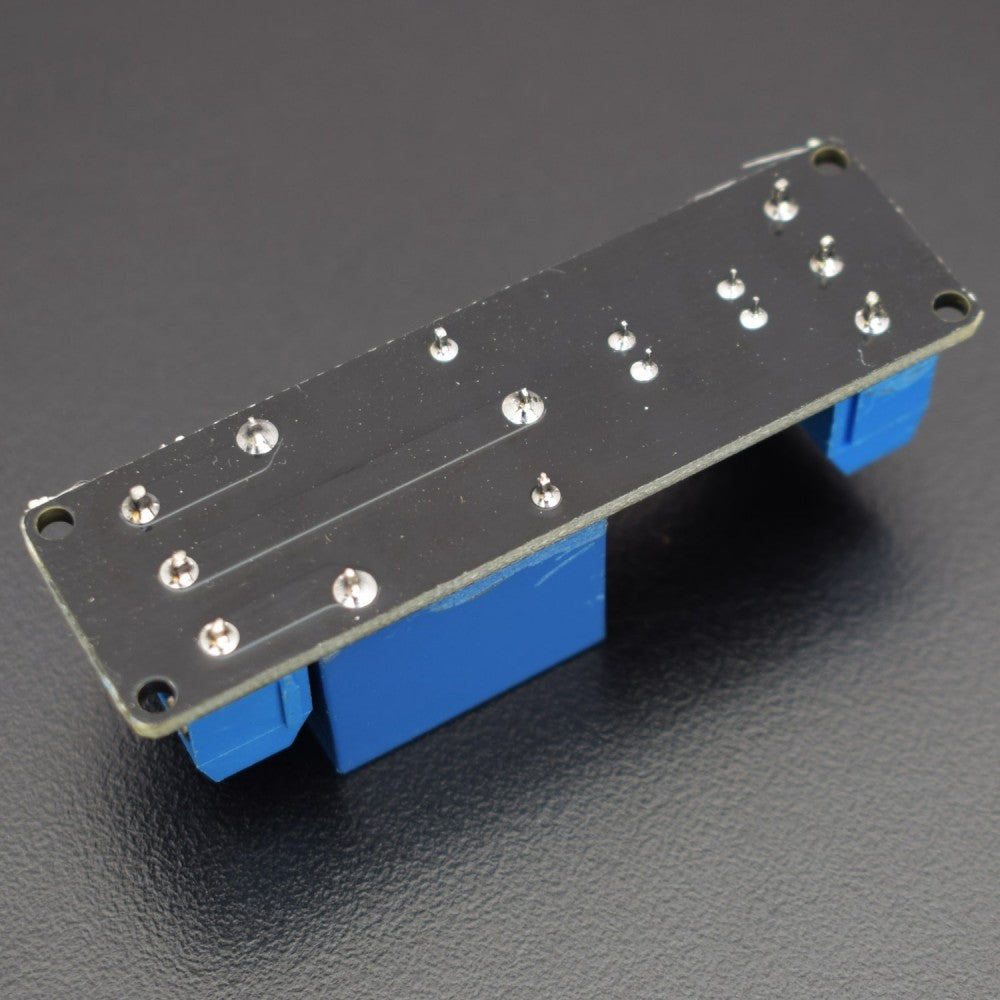

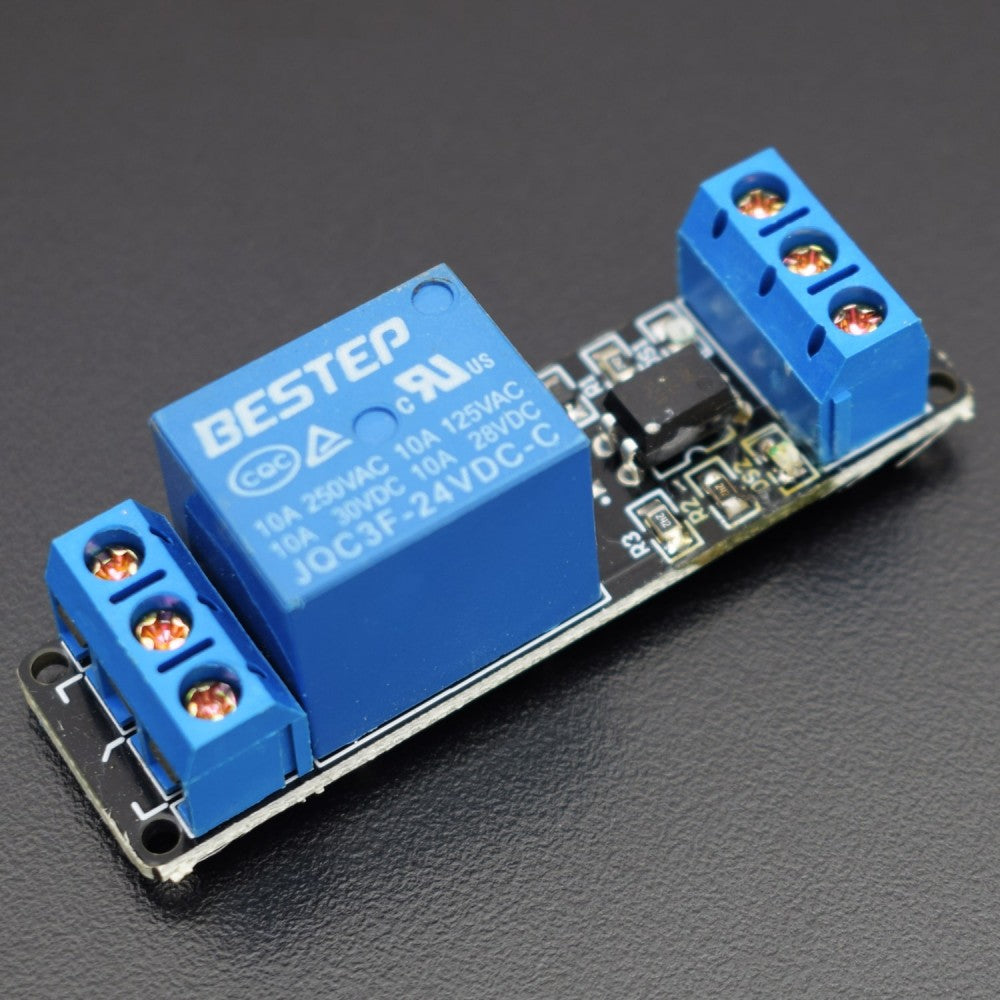

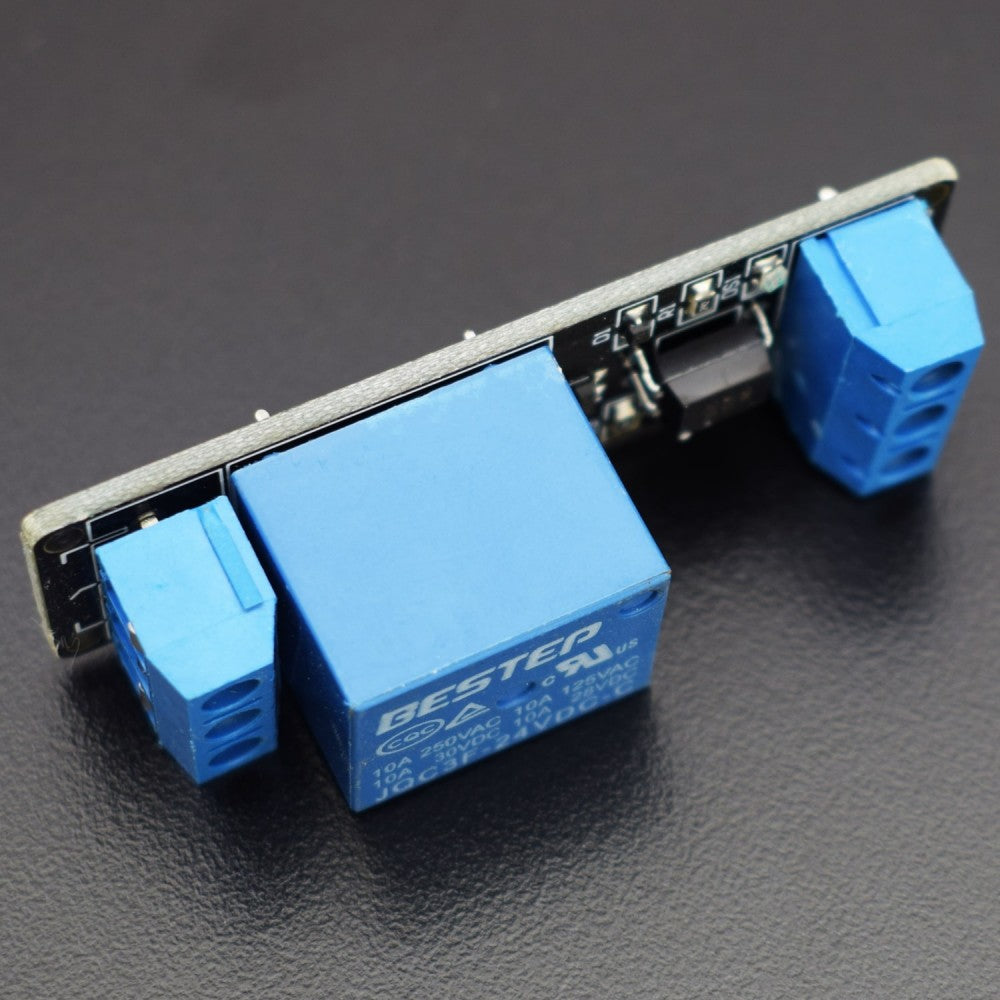

Relay Module 5V 10A 1 Channel with Optocoupler

This is normally open interface maximum load: AC 250V/10A, DC 30V/10A. SMD optocoupler isolation, strong driving capability, stable performance; trigger current 5mA. Fault-tolerant design, the relay will not move even if the control line is broken. Power indicator (green), relay status indicator (red). All the interfaces can be directly connected by wiring terminals, which is very convenient.

Specification:

• Relay version: 5V
• Quiescent current: 5mA
• Maximum current: 50mA
• Trigger current: 2-4mA

Module Interface:

• DC +: then the power supply positive (voltage according to the relay requirements, with 5V; 2, DC-: connected to the power supply negative;
• IN1: 1 signal trigger side, you can set the high or low-level control relay pull; 1, NO1: 1 relay normally-open interface; 2, COM1: 1 relay common interface;
• NC1: 1 relay normally closed interface

Relay outputs:

• NO: Normally open relay interface, the relay before the vacant after the pull shorted with COM;
• COM: Common Interface Relays;
• NC: Normally closed relay interface relay shorted with COM ago , after the pull- vacant.

In the world of electronics and automation, relays play a pivotal role in controlling high-power devices with low-power signals. One of the most common and versatile relays used in various projects is the 5V 10A 1 Channel Relay Module with Optocoupler.

This module is especially favored by hobbyists and professionals alike for its simplicity and effectiveness. We’ll delve into what makes this relay module so valuable, how it works, and its typical applications.

What is a Relay Module?

A relay is an electrically operated switch that allows you to control a high-power circuit with a low-power signal. Relay modules like the 5V 10A 1 Channel are essentially a board that integrates a relay with additional components to simplify the process of switching high-power devices using low-power controllers like microcontrollers or Arduino boards.

Features of the 5V 10A 1 Channel Relay Module

• Voltage and Current Ratings: As the name suggests, this relay module operates at 5V DC and can handle up to 10A of current. This makes it suitable for controlling a wide range of devices, from household appliances to industrial machinery.
• Single Channel: This particular module features a single relay channel. This means it can control one device or circuit. For more complex applications, multiple channel relay modules are available.
• Optocoupler Isolation: One of the standout features of this module is the inclusion of an optocoupler (or opto-isolator). This component provides electrical isolation between the low-voltage control side and the high-voltage switching side. This is crucial for protecting sensitive control circuits from high voltages and electrical noise.
• LED Indicator: The module typically includes an LED indicator that shows the status of the relay. When the relay is activated, the LED lights up, providing a visual indication that the relay is working.

How Does It Work?

The 5V 10A 1 Channel Relay Module operates based on the principle of electromagnetic switching. Here’s a step-by-step breakdown of its operation:

• Control Signal: When a low-power signal (typically 5V DC) is applied to the relay module's input terminal, it activates the optocoupler. This optocoupler consists of an LED and a phototransistor. The LED is turned on by the control signal, which then triggers the phototransistor.
• Isolation: The optocoupler provides isolation between the low-power control signal and the high-power relay circuit. This prevents electrical noise and potential damage to the control system from the high-power side.
• Relay Activation: The activation of the optocoupler triggers the relay coil, causing the relay to switch its contacts. When the relay is activated, it closes or opens the high-power circuit, depending on the relay's configuration (normally open or normally closed).
• Device Control: With the relay’s contacts switched, you can control a high-power device like a motor or lamp. The relay’s 10A rating allows it to handle substantial loads without issues.

Typical Applications

The 5V 10A 1 Channel Relay Module is incredibly versatile and finds applications in various fields:

• Home Automation: Used in smart home projects to control lights, fans, and appliances.
• Industrial Automation: Facilitates control of machinery and equipment.
• Microcontroller Projects: Integrates with Arduino, Raspberry Pi, and other microcontrollers for various automated tasks.
• DIY Electronics: Ideal for hobbyist projects where controlling high-power devices is necessary.

Conclusion

The 5V 10A 1 Channel Relay Module with Optocoupler is an essential component for anyone working with electronic control systems. Its ability to manage high-power devices using low-power signals, combined with the added protection of an optocoupler, makes it an invaluable tool in both hobbyist and professional settings.

Whether you're automating your home, working on industrial applications, or diving into DIY electronics, this relay module provides a reliable and straightforward solution for switching and controlling high-power circuits.
