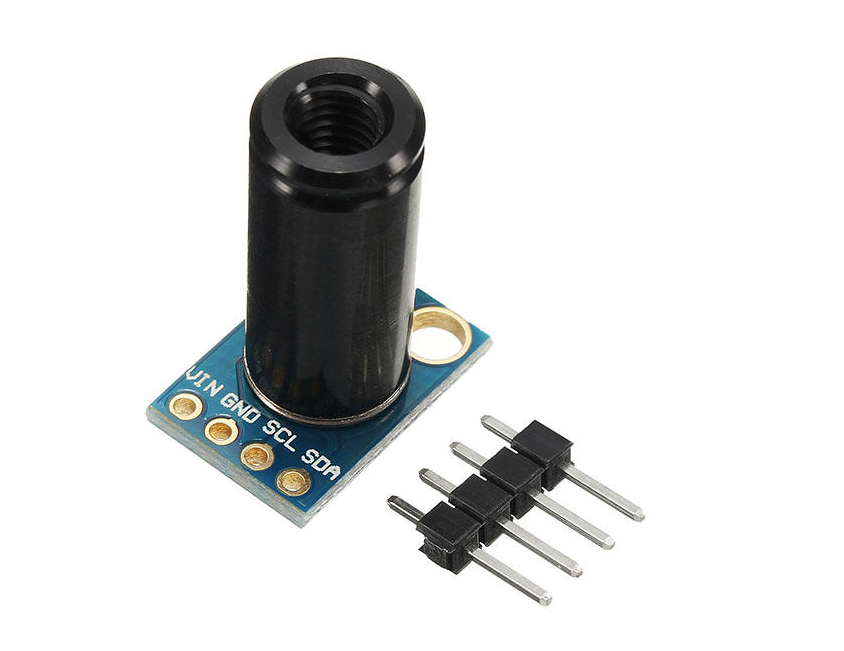

Long Range IR Thermometer GY-MLX90614-DCI

This sensor module uses an MLX90614 thermometer sensor. The MLX90614 is an infrared thermometer for non contact temperature measurements. Both the IR sensitive thermopile detector chip and the signal conditioning ASSP are integrated in the same TO-39 can. Thanks to its low noise amplifier, 17-bit ADC and powerful DSP unit, a high accuracy and resolution of the thermometer is achieved. This sensor module is an automotive grade device. It gives highly accurate and precise results even if placed in high temperature environments.


Specifications:

  • Distance measured: 50cm
  • Sensor temperature range: -40 to +125 °C
  • Object temperature range: -70 to + 380 °C
  • Ta and To range from 0 to +50 °C with an accuracy of 0.5 °C
  • Measurement resolution: up to 0.02 °C
  • D ---- 3V medical application accuracy
  • C ---- Temperature gradient compensation
  • I ----- 3 ° FOV (angle)
  • Module model: GY-906-DCI
  • Use chip: MLX90614-DCI
  • Power supply: 3-5V (internal low voltage regulator)
  • Communication: Standard IIC communication protocol
  • Size: 11.5 x 16.5mm
  • Weight: 2g

Long Range IR Thermometer GY-MLX90614-DCI

Long Range IR Thermometer GY-MLX90614-DCI

Low stock: 9 left

Product Code

SKU:2694

Regular price ₱ 1,297.00
Regular price Sale price ₱ 1,297.00
