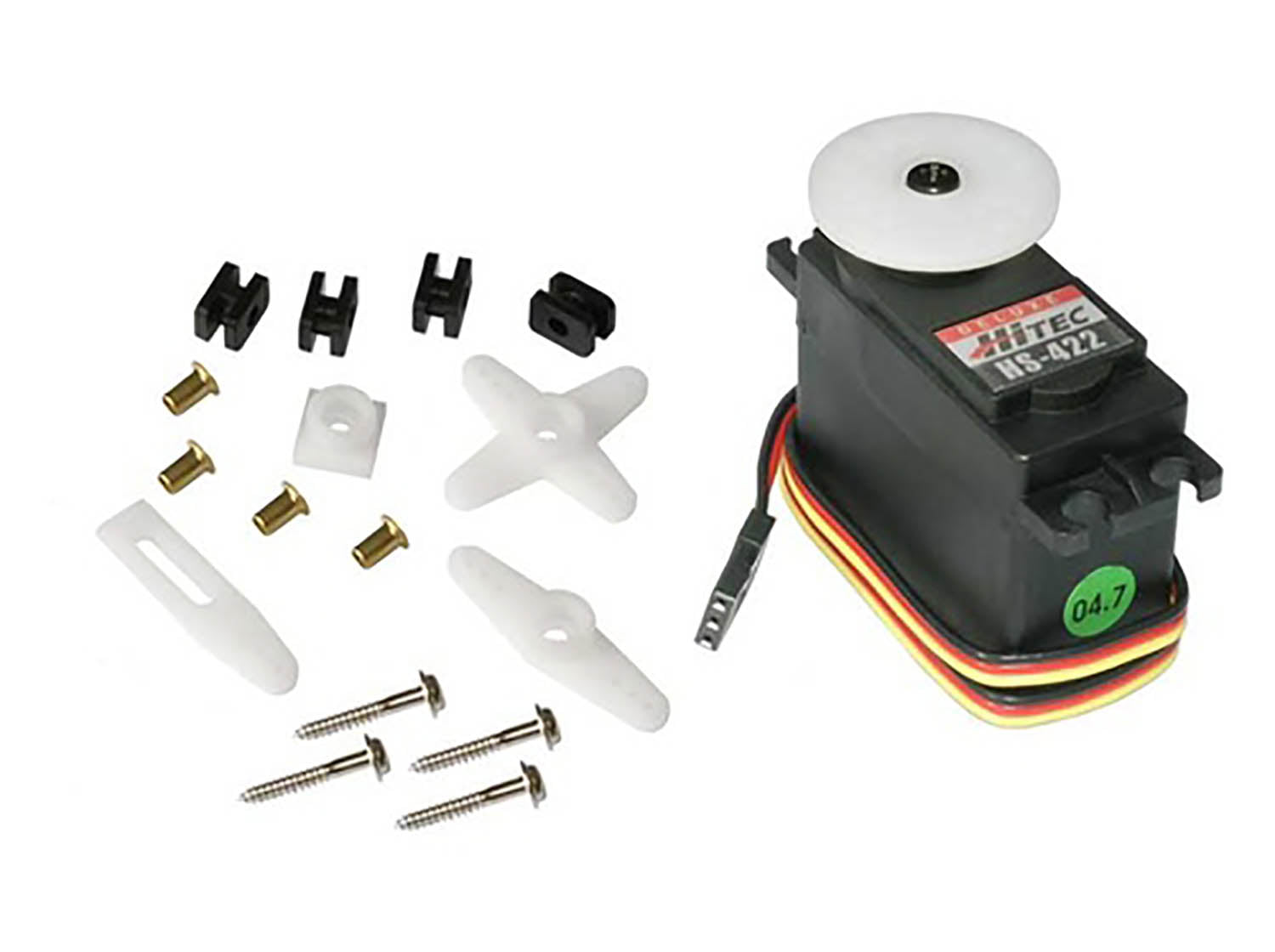

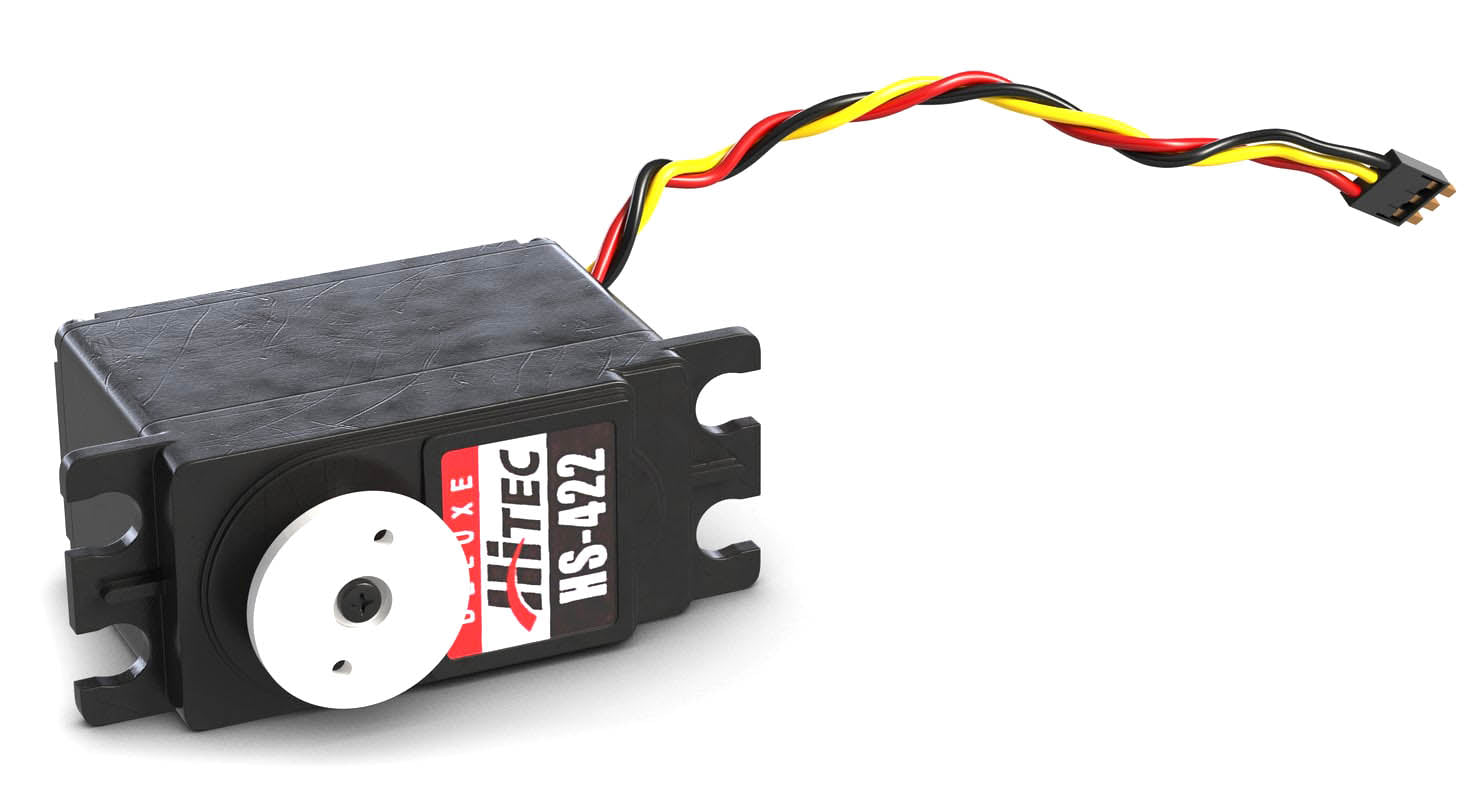

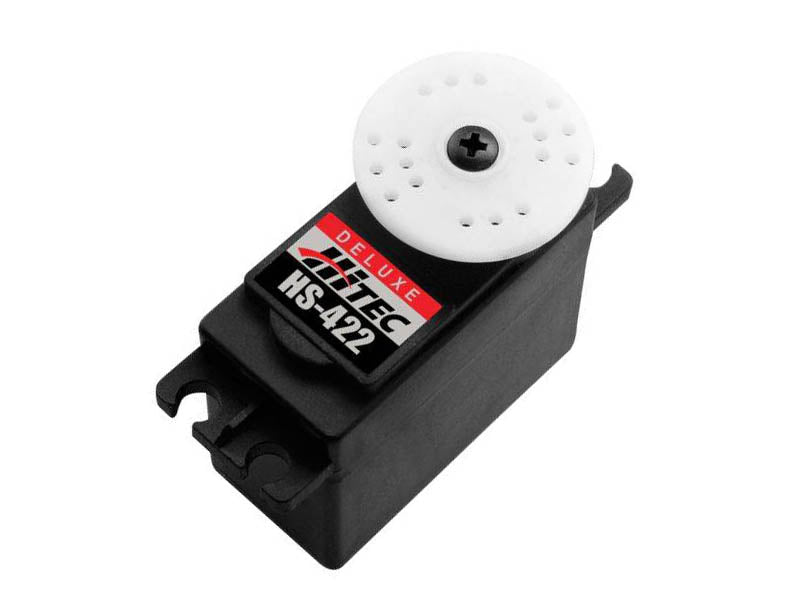

Servo HS422 Hitec

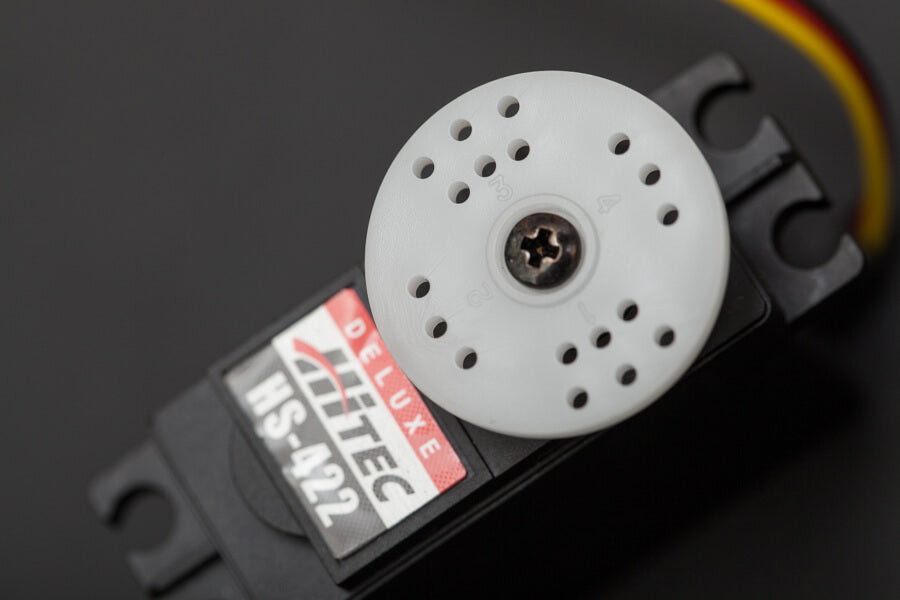

Known for its durability and could be easily modified, this servo is perfect for robotic applications. The output shaft is supported on the bottom and top with bronze bushing. The circuit board is separated from the motor shaft, so the potentiometer could be easily accessed.

Compatible Robot Gripper: Gripper LG-NS Robot

SPECIFICATION

• Control System: +Pulse Width Control 1500usec Neutral
• Required Pulse: 3-5 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8-6.0 Volts
• Operating Temperature Range: -20 to +60 Degree C
• Operating Speed (4.8V): 0.21sec/60° at no load
• Operating Speed (6.0V): 0.16sec/60° at no load
• Stall Torque (4.8V): 45.82 oz/in. (3.3kg.cm)
• Stall Torque (6.0V): 56.93 oz/in. (4.1kg.cm)
• Operating Angle: 45 Deg. one side pulse traveling 400usec
• 360 Modifiable: Yes
• Direction: Clockwise/Pulse Traveling 1500 to 1900usec
• Current Drain (4.8V): 8mA/idle and 150mA no load operating
• Current Drain (6.0V): 8.8mA/idle and 180mA no load operating
• Dead Band Width: 8usec
• Motor Type: 3 Pole Ferrite
• Potentiometer Drive: Indirect Drive
• Bearing Type: Dual Oilite Bushing
• Gear Type: Nylon

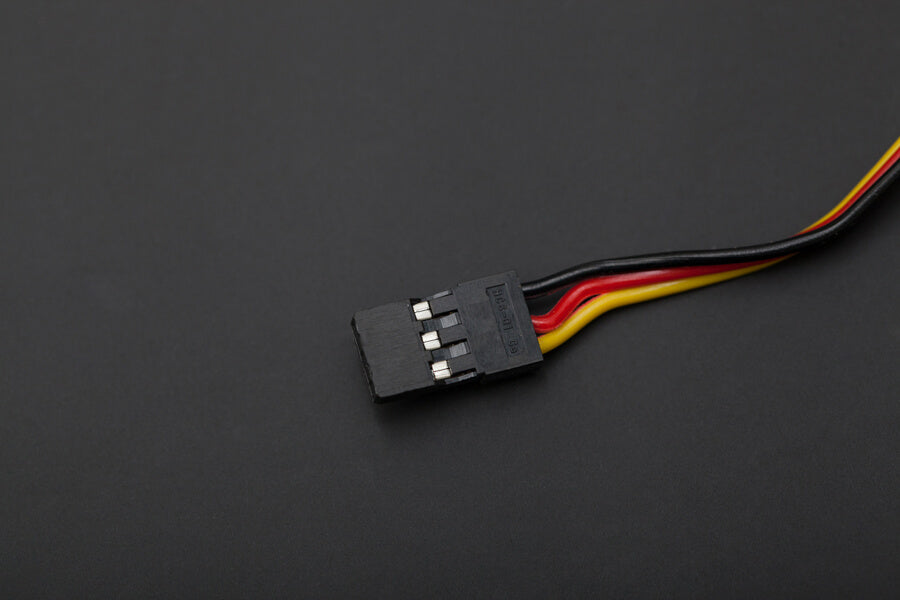

• Connector Wire Length: 11.81" (300mm=11.81in)
• Dimensions: See Schematics
• Weight: 45.5g
