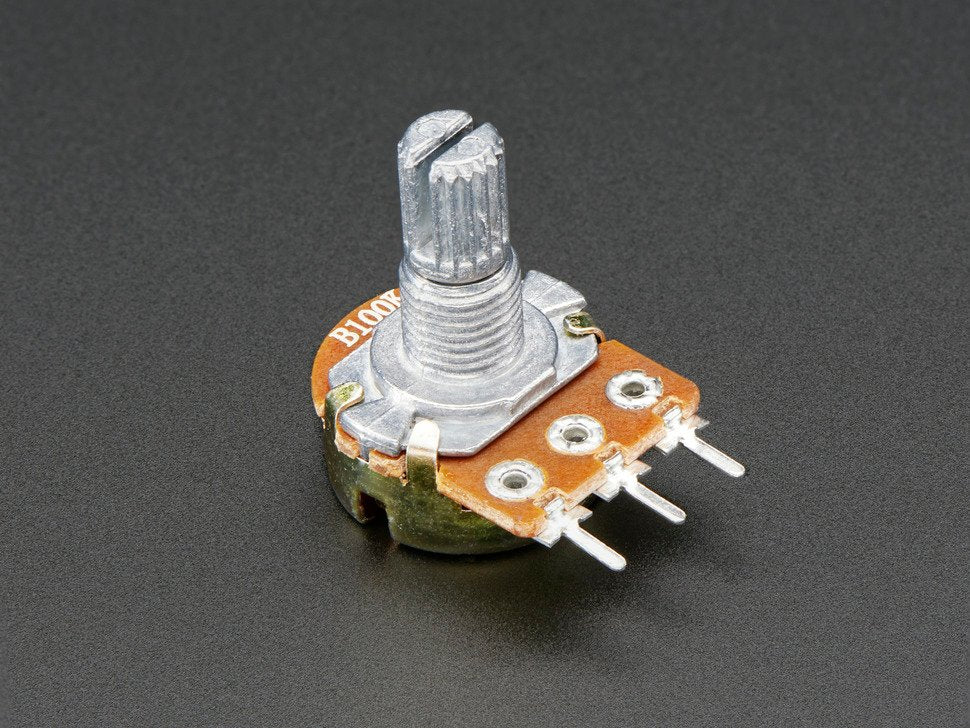

Potentiometer Panel Mount 100K


This potentiometer is a two-in-one, good in a breadboard or with a panel. It's a fairly standard linear taper 100K ohm potentiometer, with a grippy shaft. It's smooth and easy to turn, but not so loose that it will shift on its own. We like this one because the legs are 0.2" apart with pin-points, so you can plug it into a breadboard or perfboard. Once you're done prototyping, you can drill a hole into your project box and mount the potentiometer that way.

Dimensions:

  • Body: 16mm / 0.6"
  • Body Circumference: 50mm / 2"
  • Shaft Length: 15mm / 0.6"
  • Weight: 6g
  • 100K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • Rotational travel: 300 °
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in

Potentiometer Panel Mount 100K

Potentiometer Panel Mount 100K

358 in stock

Product Code

SKU:AJ426-100

Regular price ₱ 29.00
Regular price Sale price ₱ 29.00
Sale Sold out
