Photoelectric Counter IR LM393

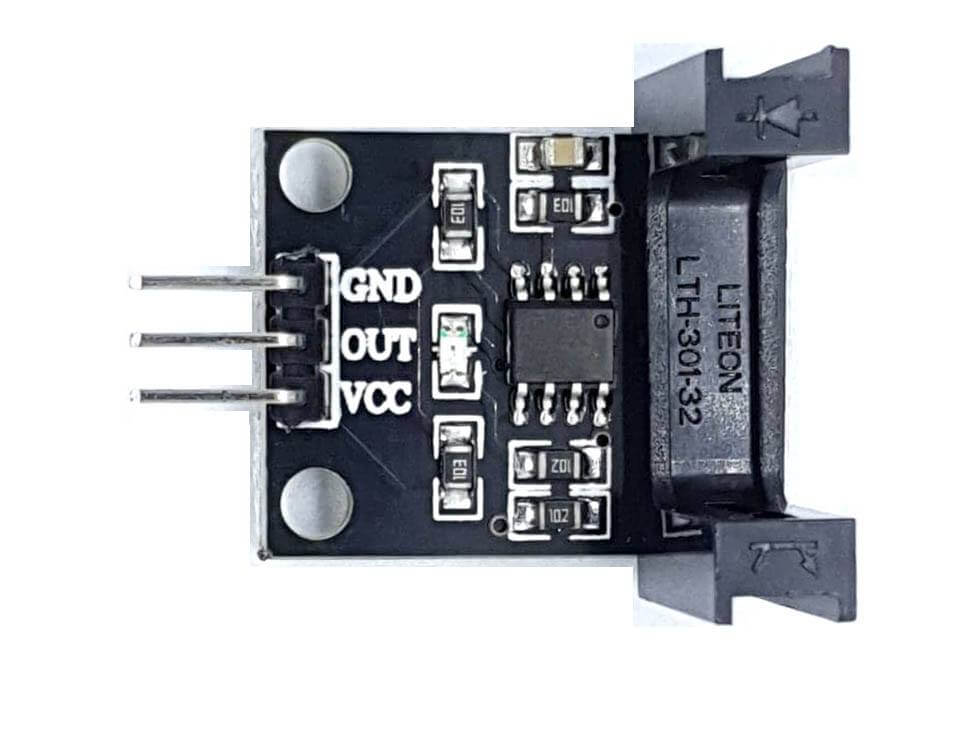

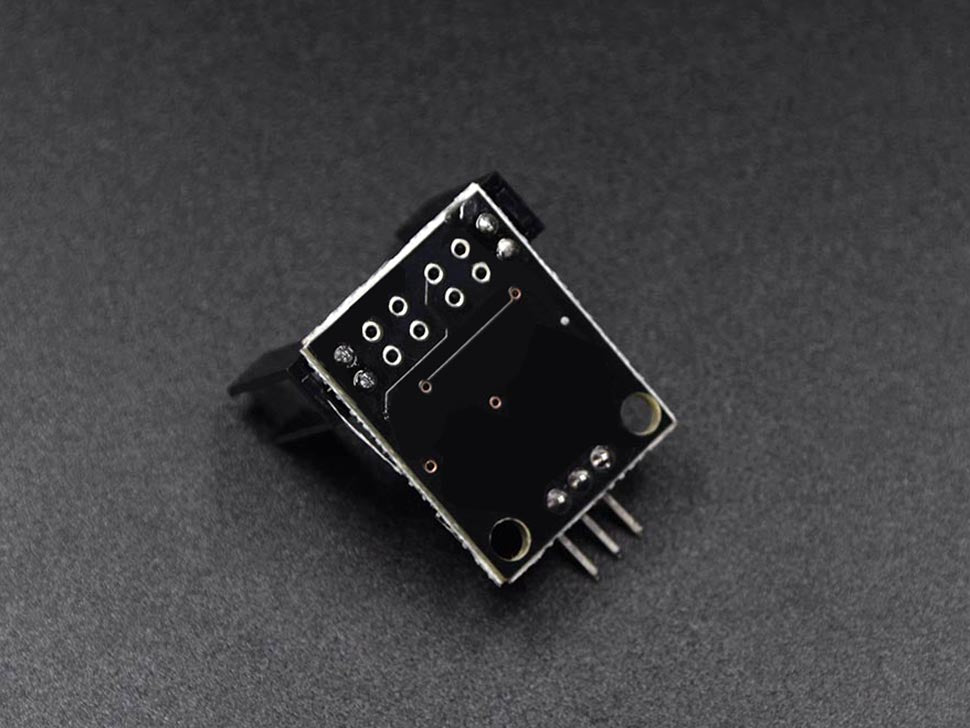

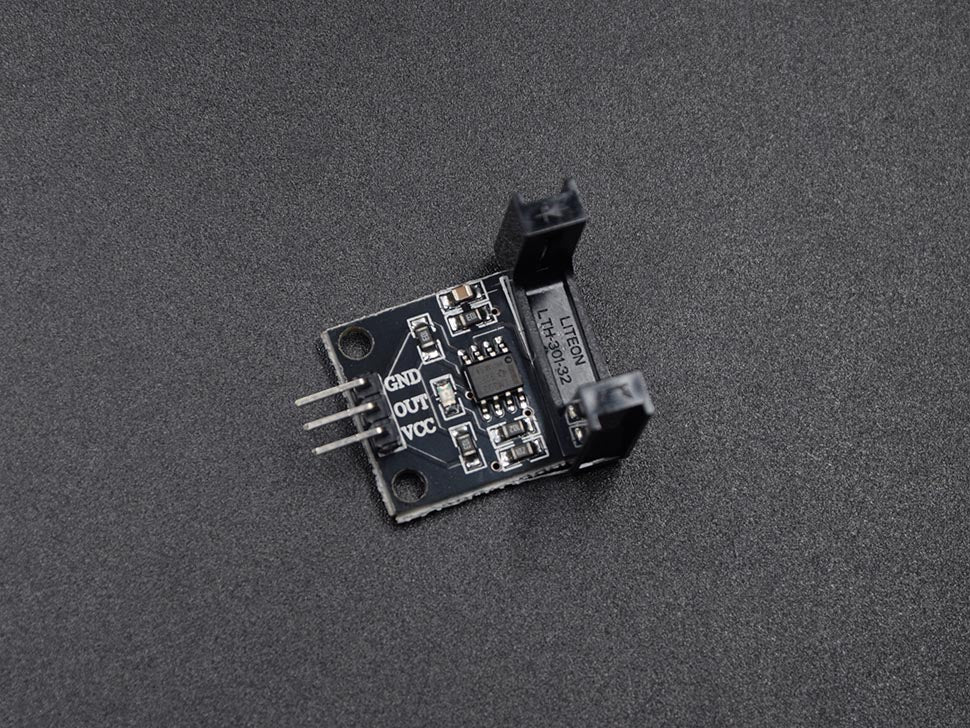

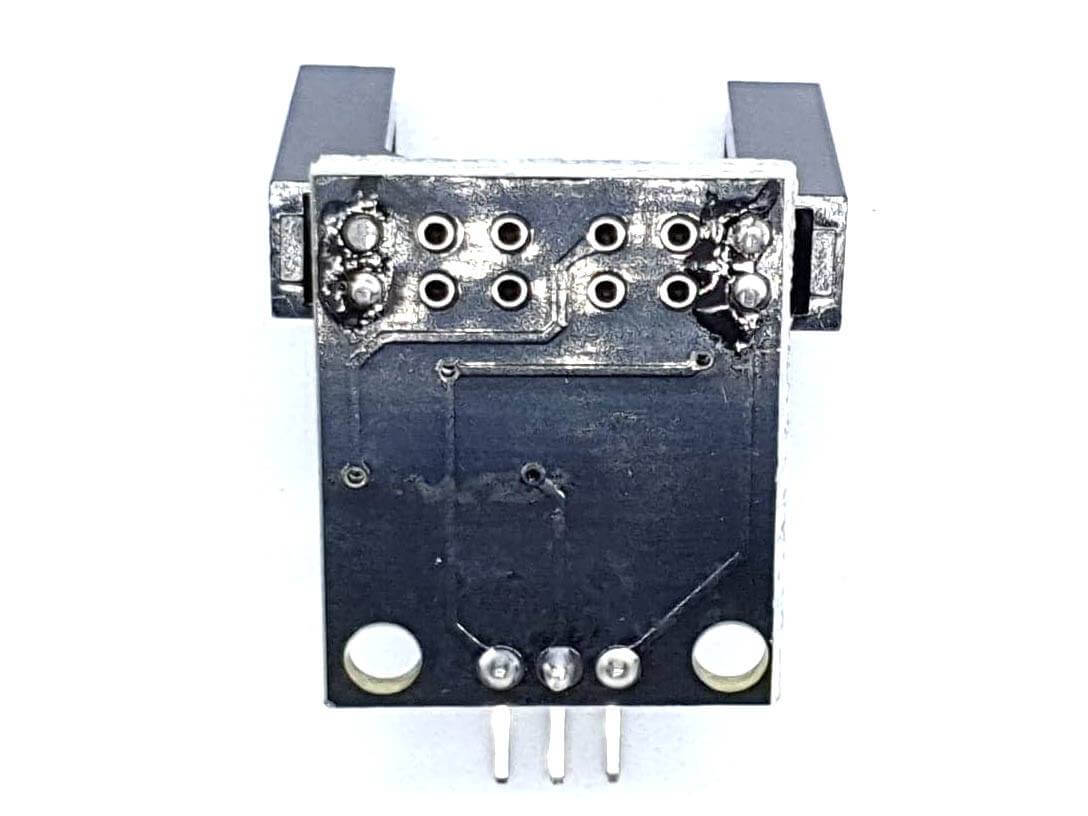

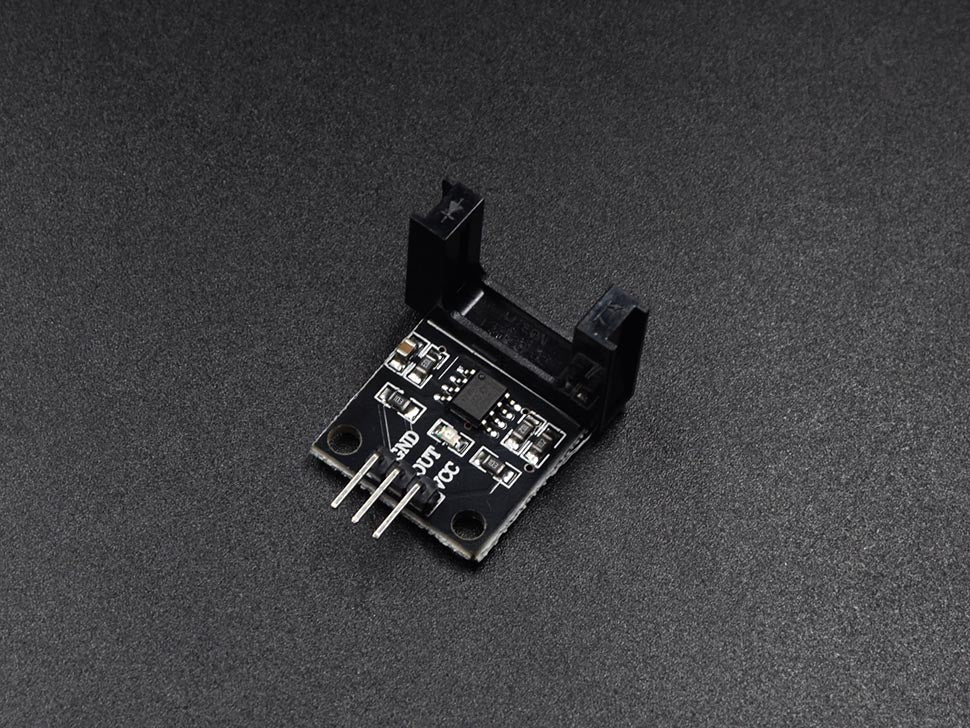

Photoelectric Counter IR LM393 - This Photoelectric IR Counter module, which is based on the LM939 comparator chip, detects objects that are in between its two arms. It sends a HIGH signal when something passes the photoelectric sensor. You can then use this to measure the RPM of a motor by counting the HIGH pulses sent in a minute. With its absence of magnetic property, it provides an excellent sensing solution for systems composed of metal.
Frequently asked questions about Photoelectric Counter IR LM393
Q1: What is a photoelectric counter?
A photoelectric counter is a device that utilizes a photoelectric sensor to count objects or events passing through a detection area. It typically consists of an infrared (IR) light emitter and receiver pair, where interruption of the infrared beam triggers a count. The counter is commonly used in industrial automation, packaging, conveyor systems, and other applications requiring accurate counting.
Q2: What is the LM393?
LM393 is an integrated circuit (IC) commonly used as a comparator in various electronic applications. It consists of two independent voltage comparators, which can be used for comparing analog voltage signals. The LM393 IC is often used in conjunction with a photoelectric sensor for object detection or counting applications, including photoelectric counter systems.
Q3: How does a photoelectric counter with LM393 work?
In a photoelectric counter system using the LM393, the photoelectric sensor emits an infrared beam towards a receiver. When an object or event interrupts the beam, the receiver detects the interruption and generates an electrical signal. The LM393 then compares this signal to a reference voltage and produces an output signal based on the comparison result. This output signal can be used to trigger a count, typically by interfacing with a microcontroller or a digital display.
Q4: What are the advantages of using a photoelectric counter with LM393?
With LM393, a photoelectric counter has the following benefits:
- Reliable and exact counting of items or events passing through the detection region is possible with the system.
- Non-contact operation: The counter can identify things without making direct physical touch since it employs an infrared beam, making it appropriate for delicate or fragile products.
- Flexibility: The LM393 is a versatile electronic component that integrates readily with other electronic parts, enabling creative design and modification of the counter system.
- Wide range of applications: Due to their adaptability and precision, photoelectric counters with LM393 are used in a variety of sectors, including manufacturing, logistics, and automation.
Q5: Can a photoelectric counter with LM393 be interfaced with other devices or systems?
Yes, many devices or systems may be interfaced with a photoelectric counter with LM393. In most cases, the LM393 offers a digital output signal that may be linked to microcontrollers, PLCs, or other digital input devices. This enables data logging, connection with other devices, and integration with bigger automation systems.
- Dimensions L x W x H: 32mm x 11mm x 20mm
- Coupling Slot Width is 5mm.
- Output Signal indicator
- Can serve as a switch
- Working voltage: DC 5 V
Inclusions: 1 x Photoelectric Counter IR LM393
