Opto Interrupter TCST2103

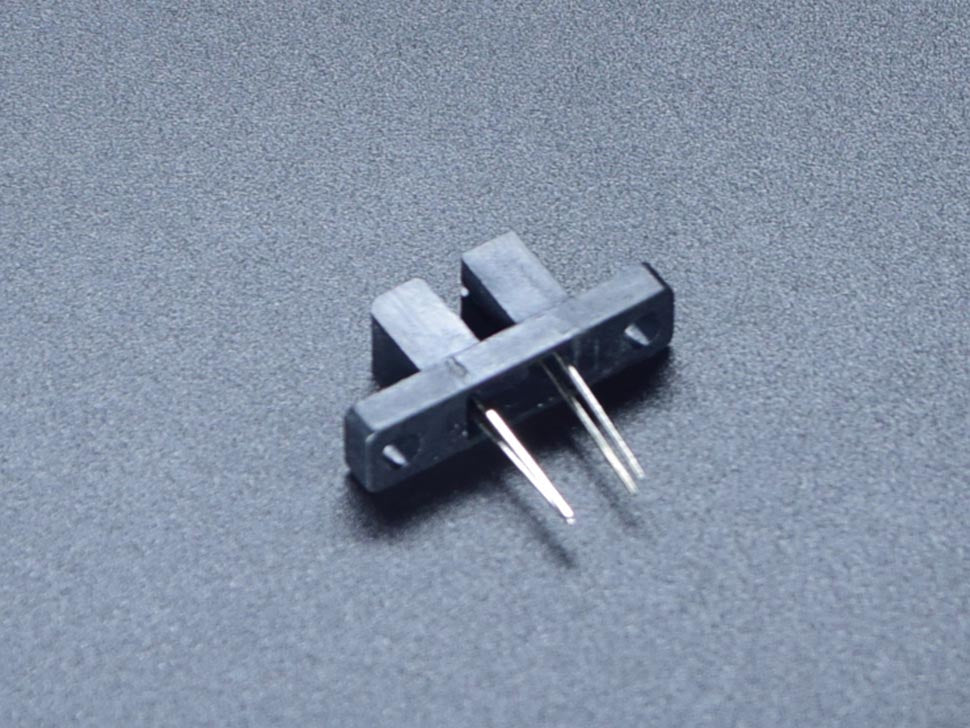

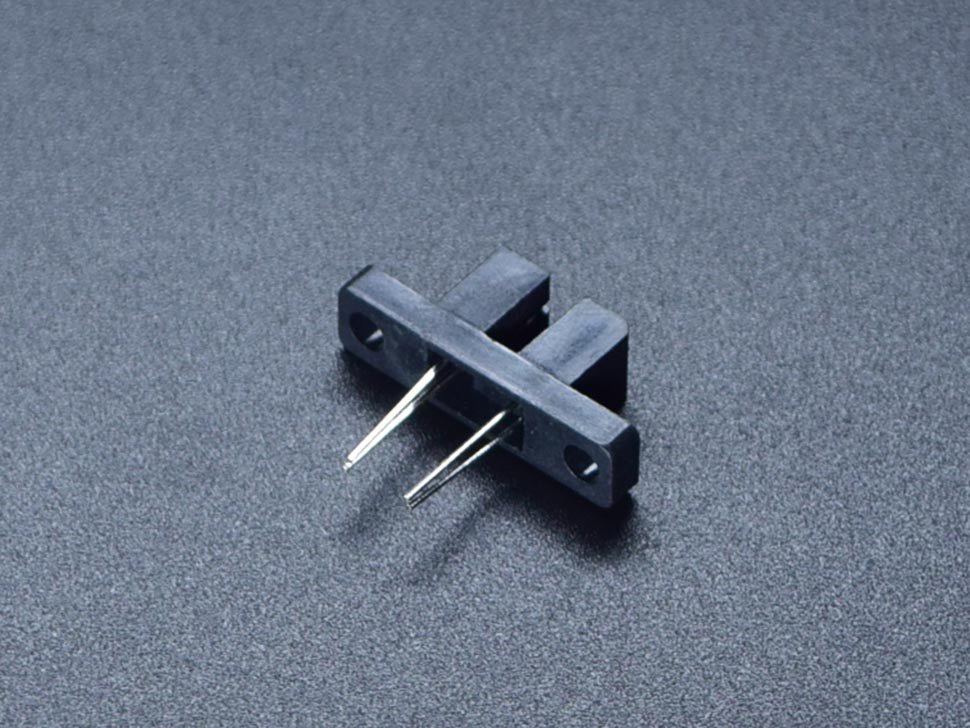

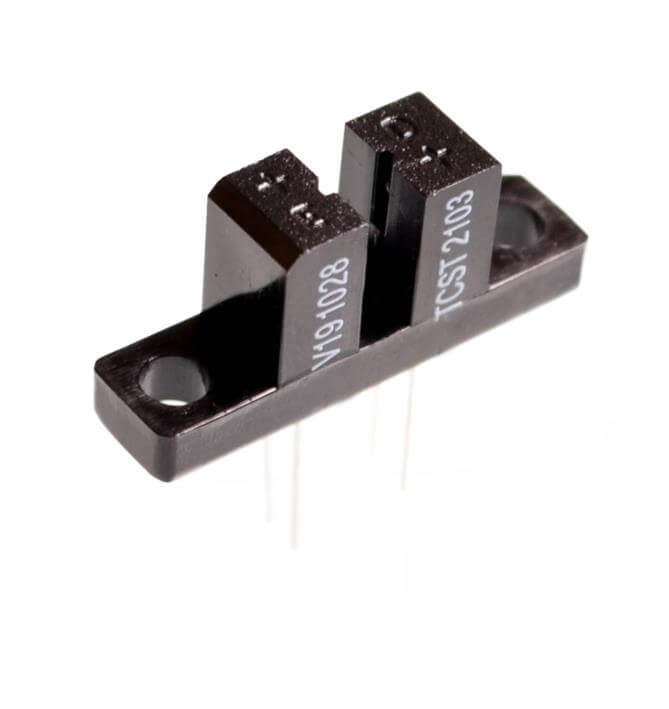

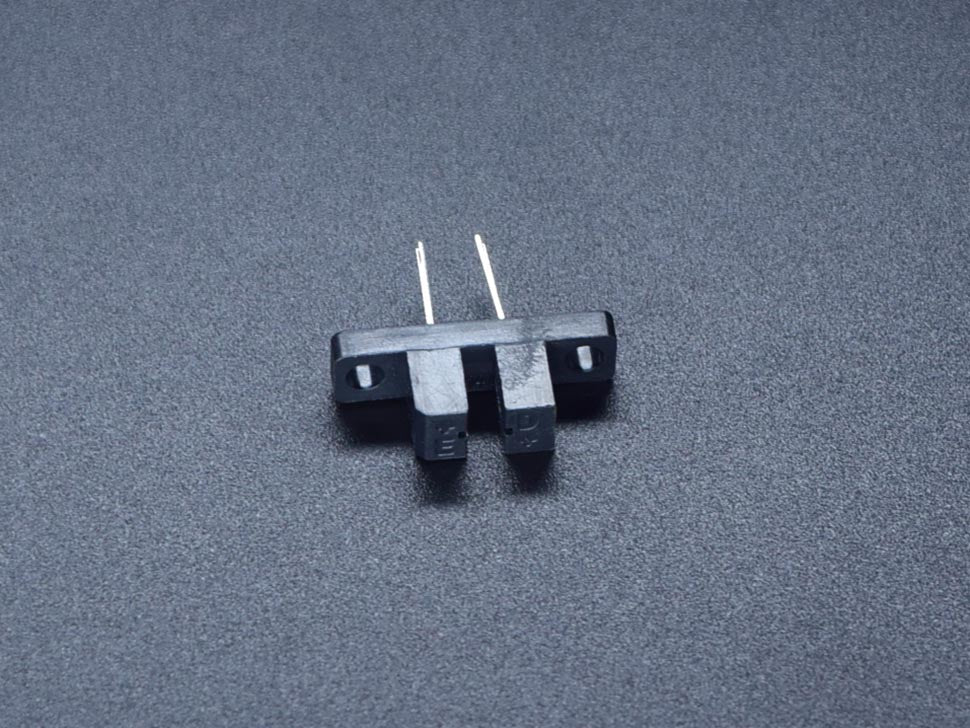

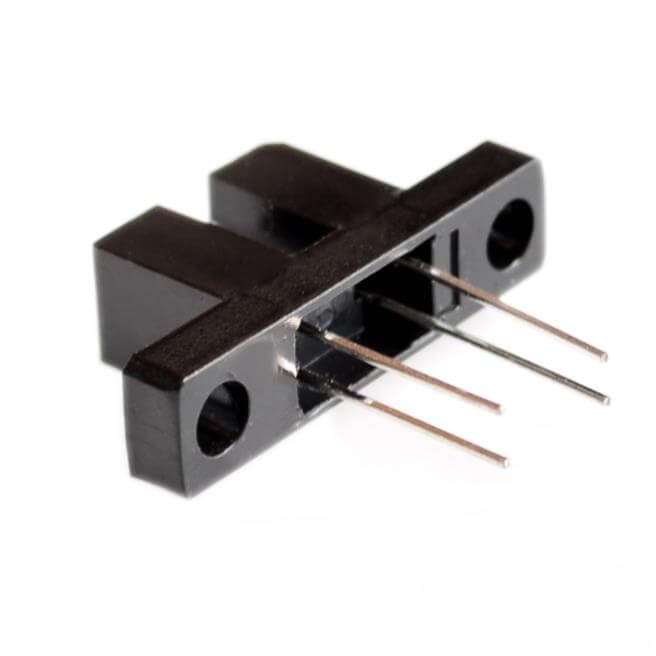

The Opto Interrupter TCST2103 is a compact sensor module that includes an infrared LED emitter and a phototransistor detector positioned face-to-face in a slotted housing. It functions by allowing infrared light from the emitter to continuously reach the detector, enabling current to flow. When an object passes through the slot and interrupts the light beam, the current flow is cut off—making it an ideal choice for detecting motion, position, or the presence of objects. This simple yet effective switching mechanism makes it popular for use in optical encoders, motor feedback systems, and automation projects.

What sets the TCST2103 apart is its built-in daylight filter, which helps block out ambient light interference. This means the sensor remains reliable and accurate even in bright environments, such as near windows or outdoors. Whether you're building a line-following robot, a rotating wheel sensor, or any project that requires non-contact object detection, this opto interrupter is a dependable and easy-to-integrate component.

Features:

Integrated infrared LED and phototransistor in one compact unit
Reliable object detection using beam interruption
Built-in daylight blocking filter for stable performance in bright environments
Ideal for use in optical switches, encoders, and automation projects
Lead-free and environmentally compliant (RoHS & WEEE)
Easy to mount and integrate into DIY or industrial applications
Supports non-contact sensing for longer component life

Specifications:

Package Type: Leaded
Detector Type: Phototransistor
Size (L x W x H): 24.5 × 6.3 × 10.8 mm
Gap Width: 3.1 mm
Typical Output Current:
- TCST2103: 4 mA
- TCST2202: 2 mA
- TCST2300: 0.5 mA
Wavelength: 950 nm IR
Filter: Daylight blocking
Compliance: RoHS & WEEE certified
Soldering: Lead-free compatible

Frequently Asked Questions:

Q1: What is the Opto Interrupter TCST2103?

An electrical part called the Opto Interrupter TCST2103 combines an infrared emitter with a phototransistor in a single package. Applications involving object identification, motion sensing, and speed measurement frequently employ it.

Q2: How does the Opto Interrupter TCST2103 work?

Based on the interruption of an infrared light beam, the Opto Interrupter TCST2103 operates. The conductivity of the phototransistor changes when anything passes between the infrared emitter and the phototransistor and blocks the light. The presence, absence, or movement of objects can be determined with this alteration.

Q3: What are the main features of the Opto Interrupter TCST2103?

Typically, the Opto Interrupter TCST2103 has the following characteristics:

High sensitivity and quick reaction times
A combined infrared emitter and phototransistor
A compact design that makes integration simple
Low power usage, and a wide operating voltage range
The output type of the phototransistor (digital or analogue).

Q4: What is the Opto Interrupter TCST2103's usual operating voltage?

The Opto Interrupter TCST2103 typically operates at a voltage of about 5 volts.

Q5: What kind of output does the Opto Interrupter TCST2103 produce?

Depending on the model, the output type may vary, but typical options include digital (on/off) output or analogue output, which delivers a fluctuating voltage or current according to the measured light intensity.

Q6: Which typical uses are there for the Opto Interrupter TCST2103?

The TCST2103 Opto Interrupter is frequently utilised in a variety of applications, including:

Position sensing in conveyor belts and assembly lines
Proximity sensing in robotics
Speed measurement in printers and motor control systems
Object identification in industrial automation
Motion detection in security systems

Q7: Can outdoor applications of the Opto Interrupter TCST2103 be made?

Due to environmental conditions like moisture or sunlight interference, the Opto Interrupter TCST2103 is primarily intended for indoor usage and may not be suited for outside applications. Additional safety precautions can be needed if outdoor use is required.

Q8: Do I need to take any safety measures when utilising the Opto Interrupter TCST2103?

Yes, here are some safety measures to think about:

Refrain from coming into close contact with bright light sources since they can impair the accuracy of detection.
Keep impurities like moisture and dust away from the sensor.
Take the required precautions while dealing with electrical components by adhering to the authorised operating voltage and current limitations.

Disclaimer: Please be aware that the information above is only a broad overview and may not include all the specifics of the Opto Interrupter TCST 2103.
