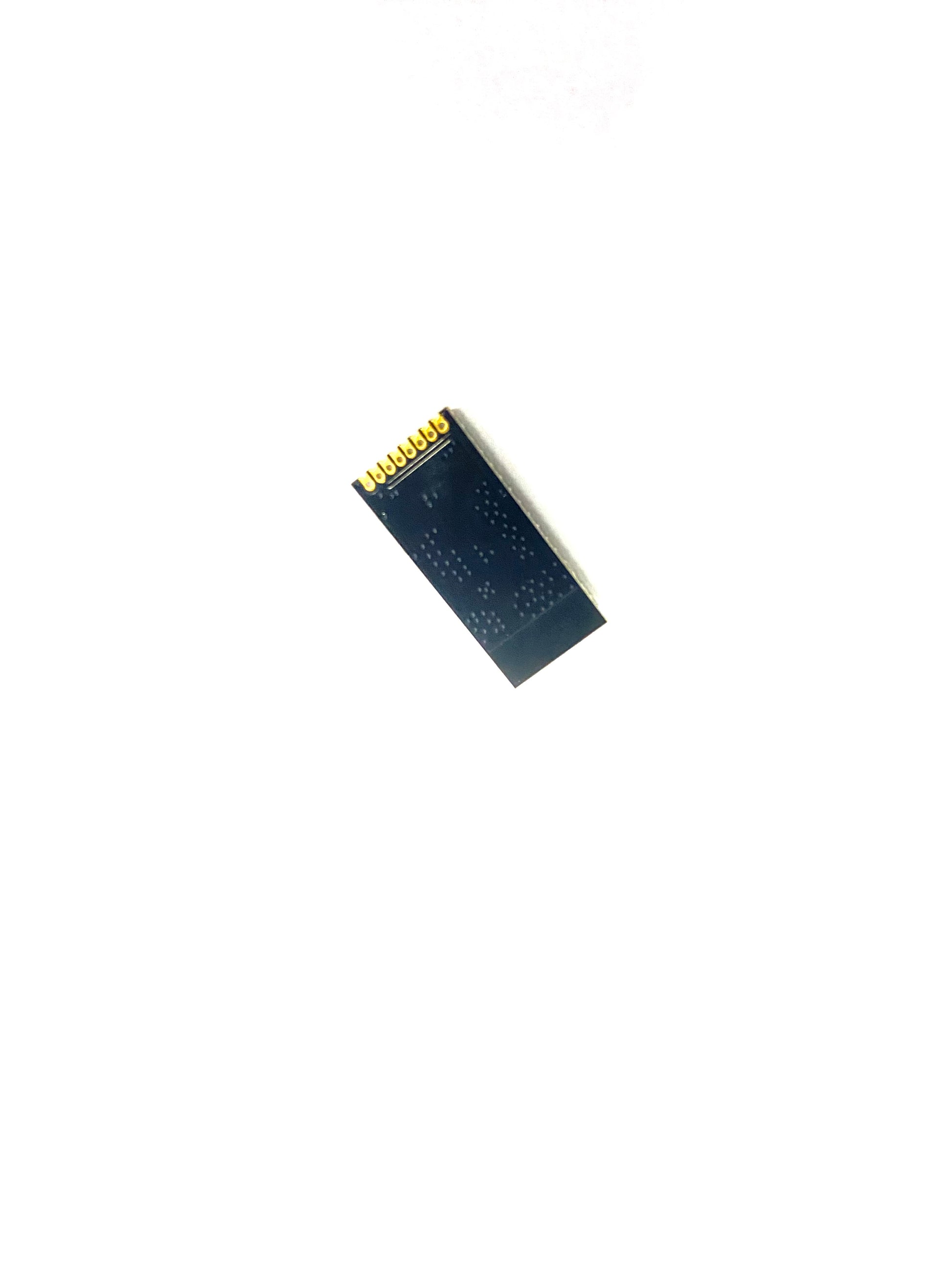

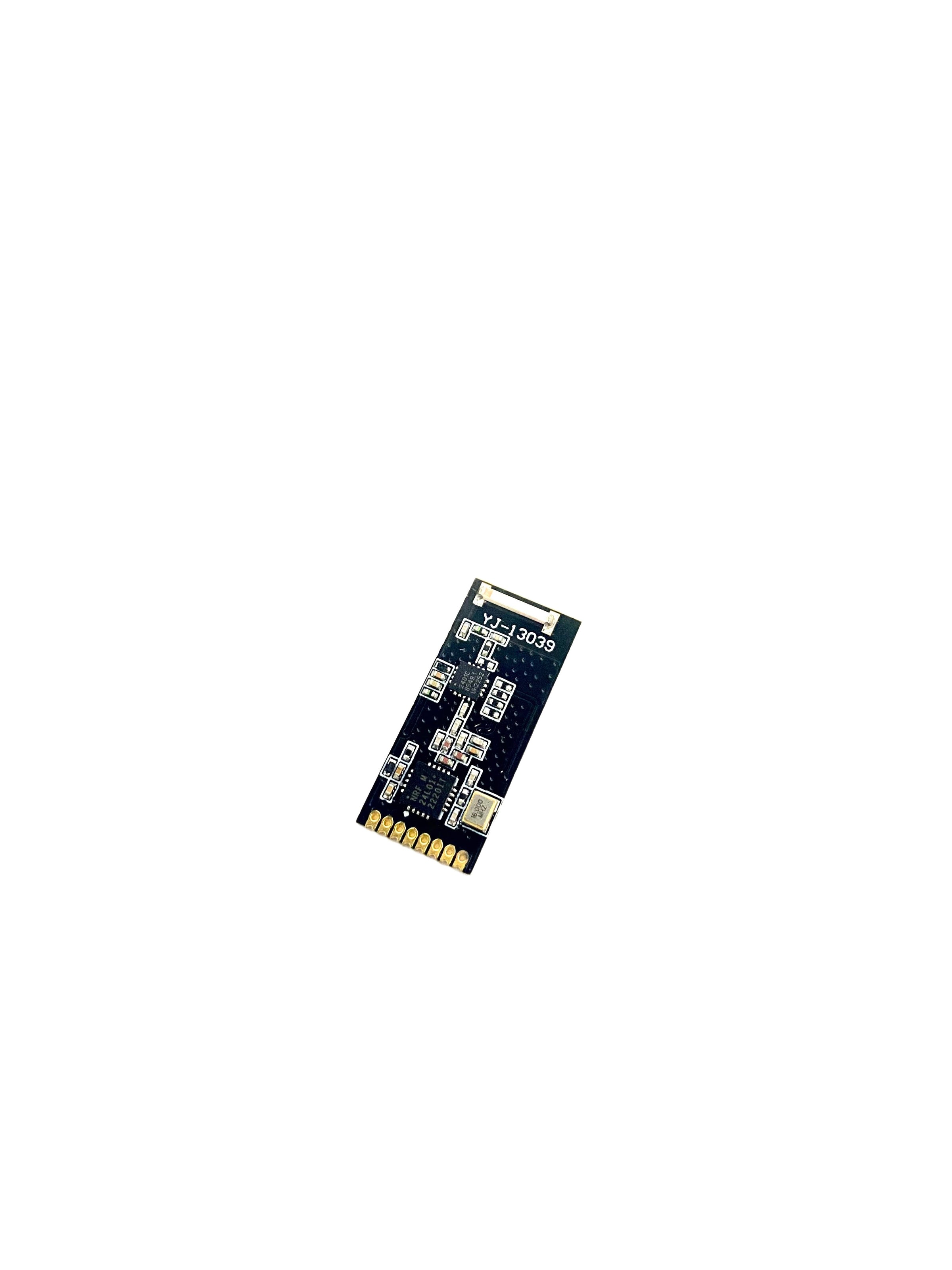

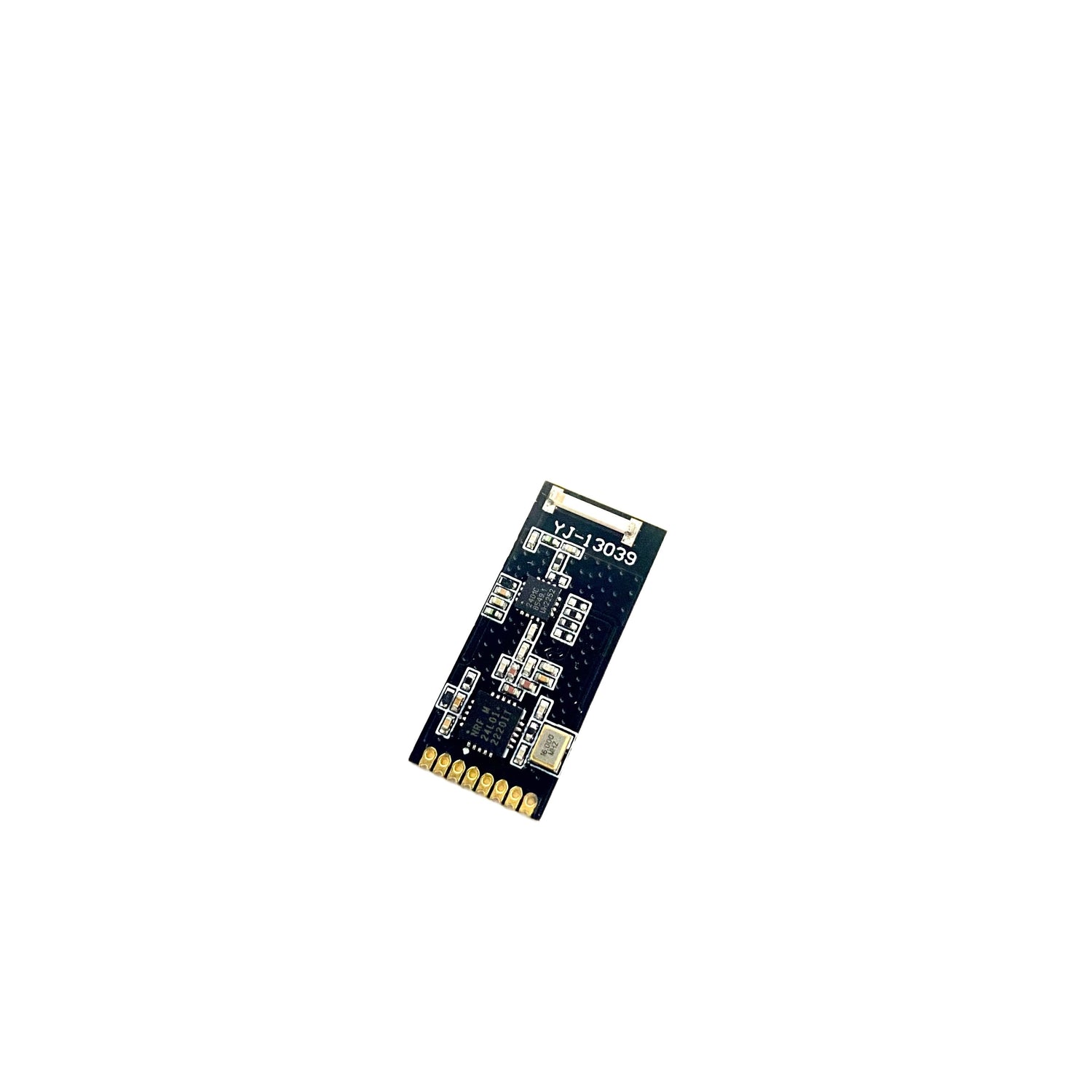

NRF24L01+PA+LNA SMD Wireless Module from Circuitrocks is ideal for DIY electronics builds.
Great for Arduino, ESP32, Raspberry Pi, and robotics or school projects here in the Philippines.
Unlock long-range, reliable wireless communication for your projects with the NRF24L01+PA+LNA SMD Wireless Module! Featuring a powerful built-in power amplifier and low-noise amplifier, this compact 2.4 GHz transceiver delivers excellent range and sensitivity, supporting speeds up to 2 Mbps for smooth data transmission. Perfect for home automation, robotics, and IoT solutions, it offers low power consumption, quick activation times, and easy SPI interface integration with popular microcontrollers like Arduino and ESP32. Upgrade your wireless projects with this professional-grade, cost-effective module today.
Features:
- 2.4 GHz ISM band operation for global, license-free use
- Built-in Power Amplifier (PA) for extended transmission range
- Low Noise Amplifier (LNA) for improved reception sensitivity
- High data rates up to 2 Mbps for fast, reliable communication
- Ultra-low power consumption with sleep and standby modes
- SPI interface for easy connection to Arduino, ESP32, and other microcontrollers
Specifications:
- Frequency: 2.4 GHz ISM band
- Transmit Power: +20 dBm max (with PA)
- Data Rate: 250 kbps / 1 Mbps / 2 Mbps selectable
- RX Current: 25 mA (at 2 Mbps)
- TX Current: 45 mA (at 0 dBm), higher with PA on
- Standby Current: 32 µA
- Power Down Current: 400 nA
- Voltage Range: 2.2 V – 3.6 V
- Activation Time: 130 µs
- Dimensions: 27 mm × 12 mm SMD package
- Pin Pitch: 1.27 mm 10-pin standard
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
