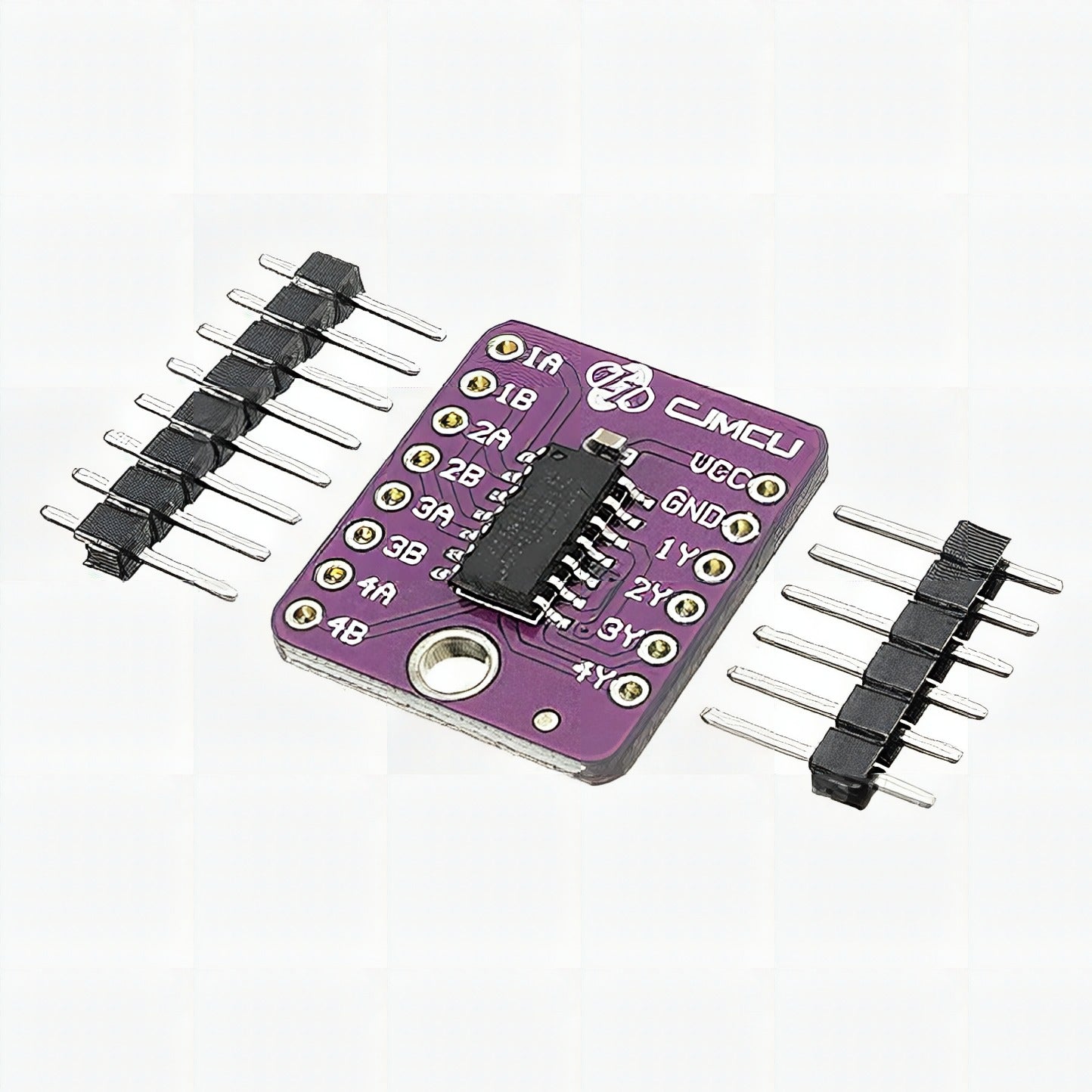

NAND gates SN74LS00 Quad 2-input positive Module

The 74HC00 device contains four independent 2-input NAND gates.

74HC00 logic function expression: Y = / (A · B) or Y = A + B, positive logic

FEATURES:

• Wide operating voltage range: 2.0 ~ 6.0 V

• Output drive capability up to 10 LSTTL loads

• Low power consumption, maximum ICC 20μA

• Typical tpd = 8 ns

• The drive current is ± 4 mA at 5 V

• Low input current, max. 1μA
