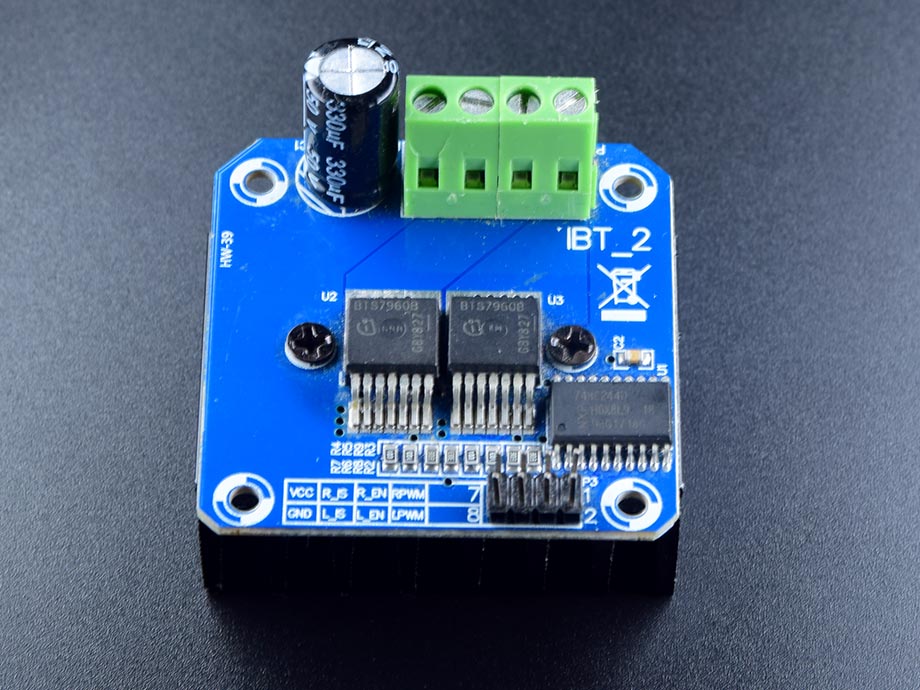

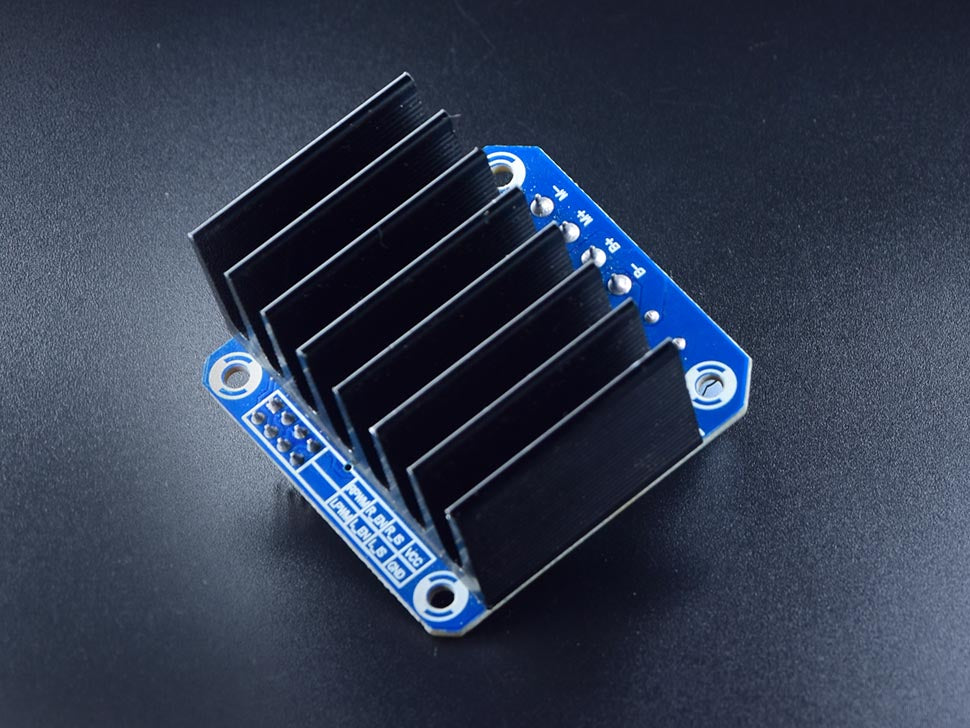

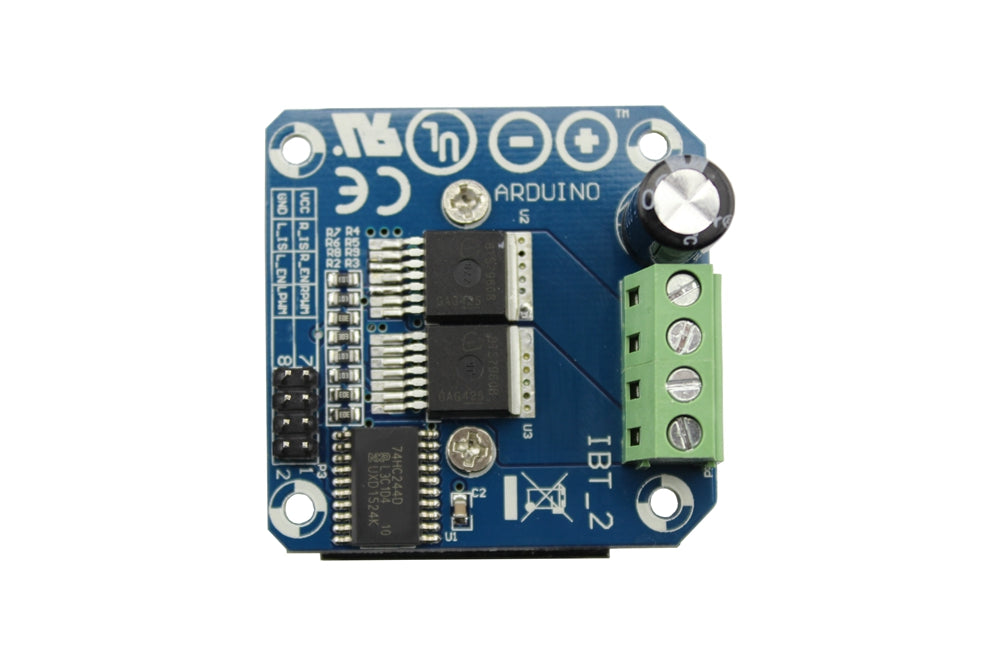

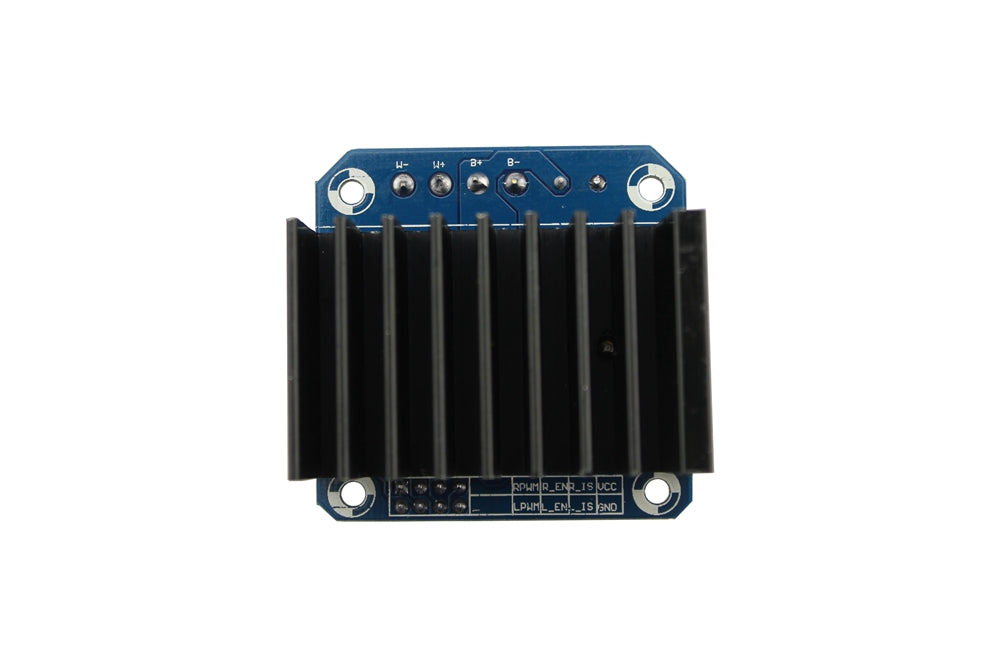

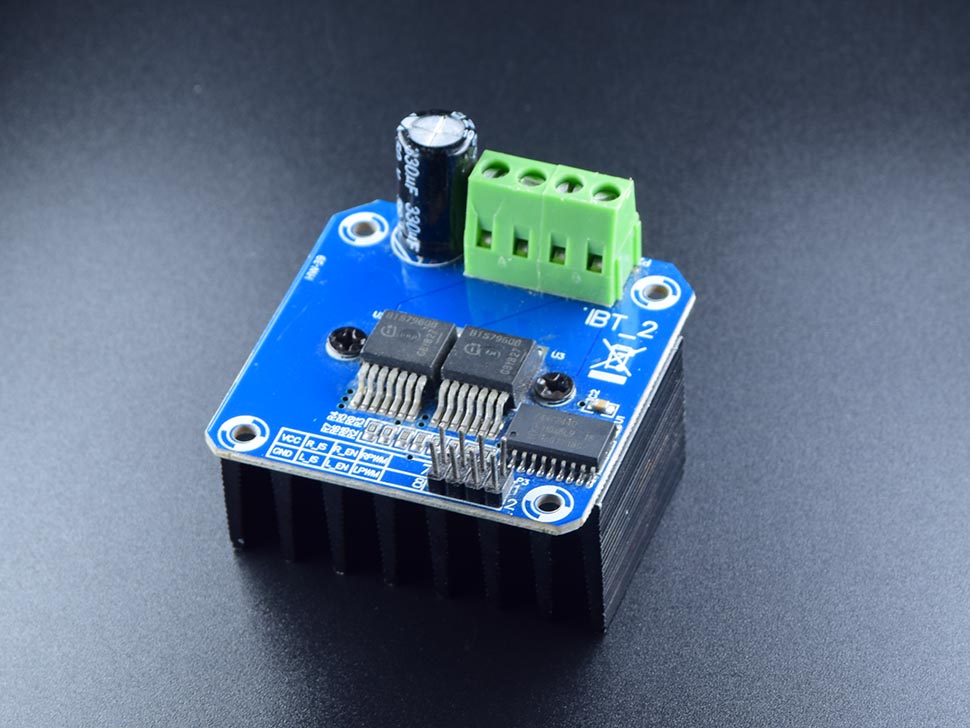

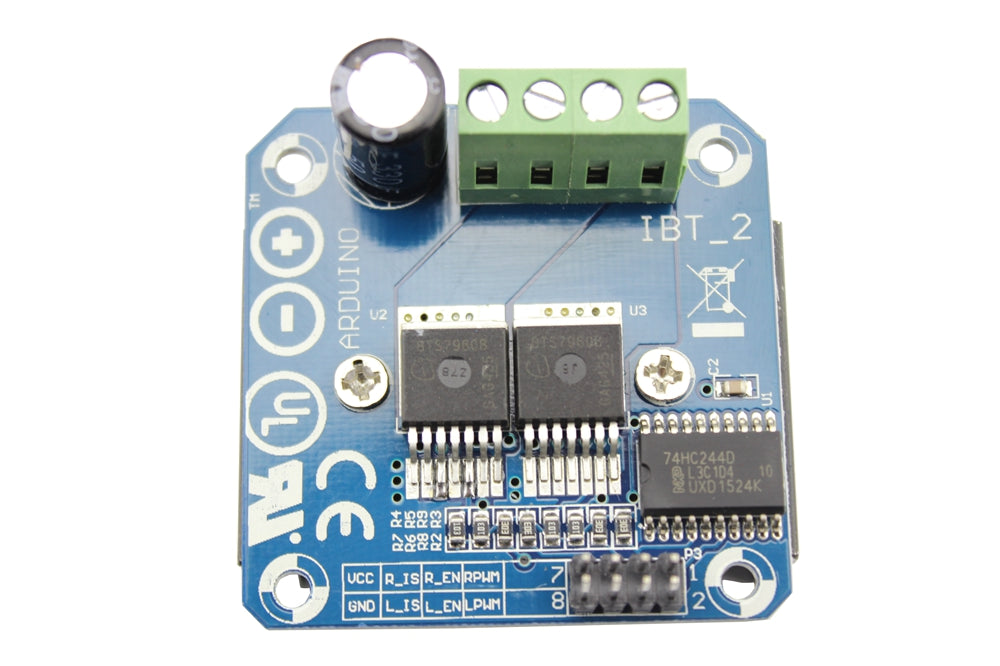

Motor Large Current Driver Module BTS7960 43A


Looking for a way to control big DC motors? Say no more, for we have this fantastic motor driver for you. This motor driver uses two Infineon power drive chip BTS7960, which has overheating and over-current protection, with a strong drive and braking effect. It also uses a 74HC244 chip effectively to create isolation between the microcontrollers and the motor driver. This module can drive up to 43A of continuous current. You may power this module up with 3.3V to 5V power supply, with the motor power supply of 6V to 27V. Its duty cycle is from 0% to 100%.

Integrating this with your MCU and DC motor needs 8 wires, two for the module's power supply, two for the signal (PWM) control, two for the motor's power supply, and the last two for the DC motor connection.

Circuit Rocks

Motor Large Current Driver Module BTS7960 43A

Motor Large Current Driver Module BTS7960 43A

Low stock: 9 left

Product Code

SKU:AB487

Regular price ₱199.00 PHP
Regular price Sale price ₱199.00 PHP
Sale Sold out
Shipping calculated at checkout.
View full details
