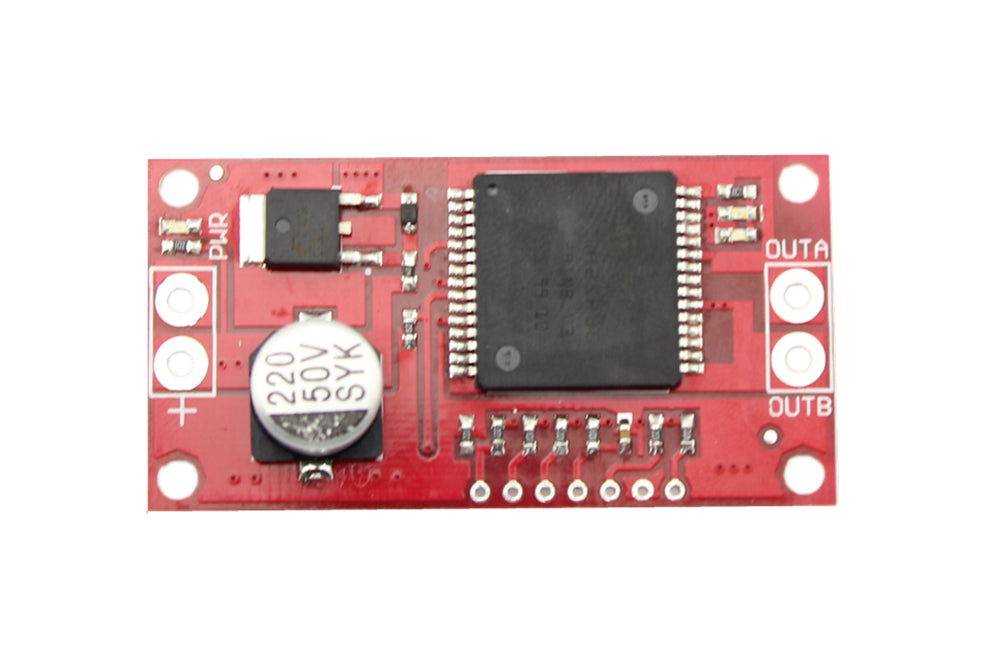

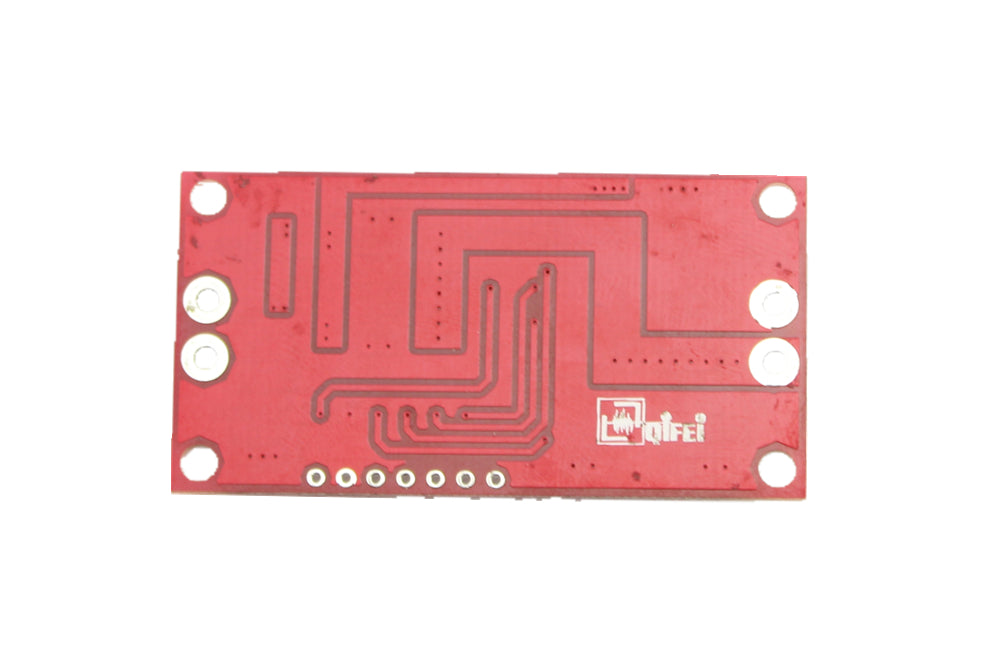

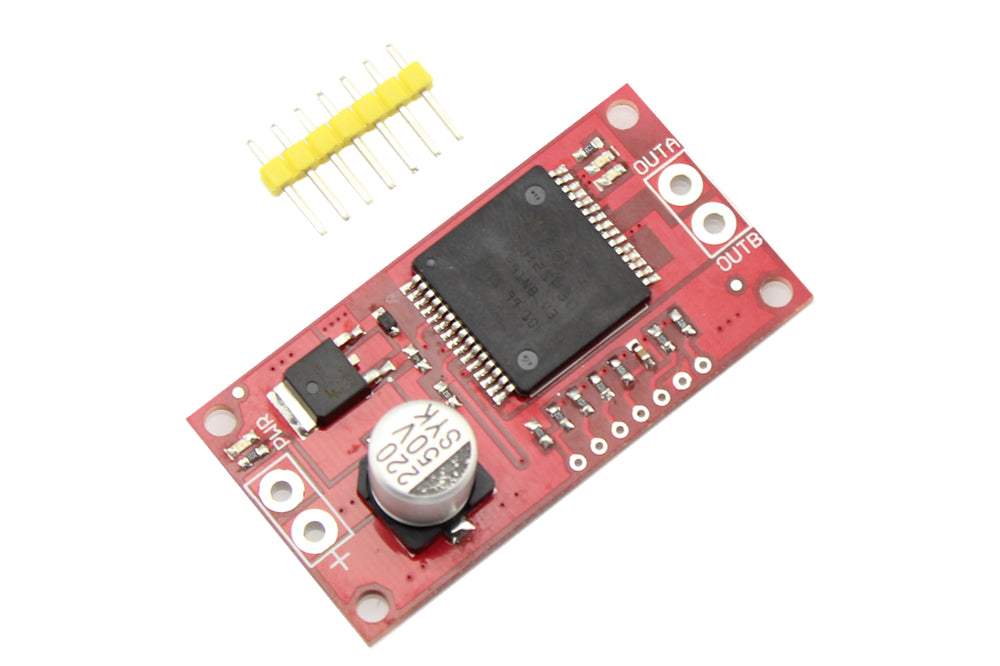

Motor Large Current Driver VNH2SP30 Module 30A

This module is designed for high-powered motor driver. Only a pair of this tiny module can we see their superior performance. We've also beefed up the circuitry, so that it can be capable of driving a pair of high-current motors. The input and output are connected with our 5mm screw terminals (not included), making it easy to connect large size of wires.

Features

• Thermal Shutdown

• Under voltage and Overvoltage shutdown

• Current sensing available to Arduino analog pin


Specification

• Maximum voltage: 16V

• Maximum current rating: 30A

• Practical Continuous Current: 14A

• Maximum PWM frequency: 20 kHz

• MOSFET on-resistance: 19 mΩ (per leg)


Wiki & External links

• VNH2SP30 Datasheet
