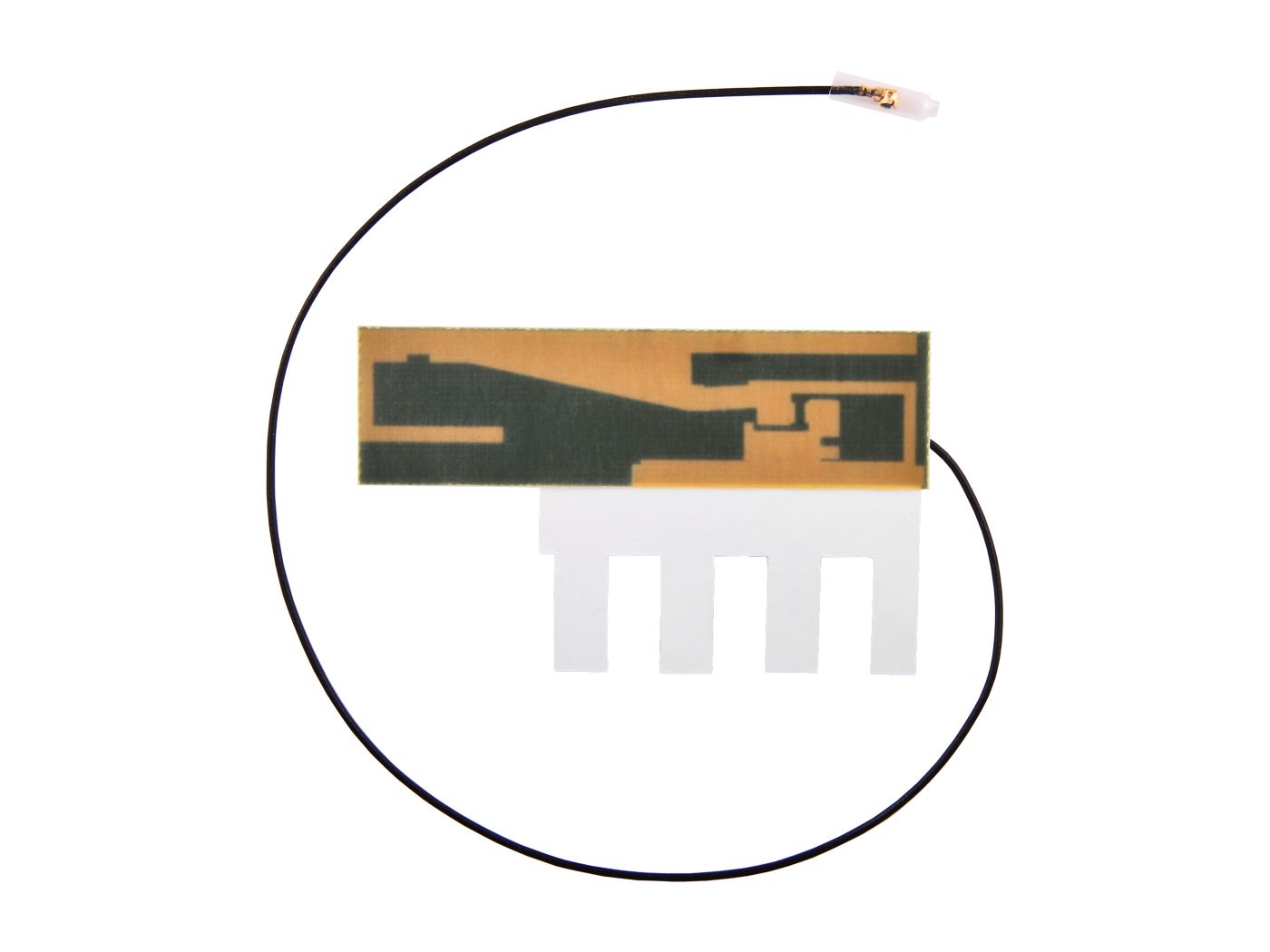

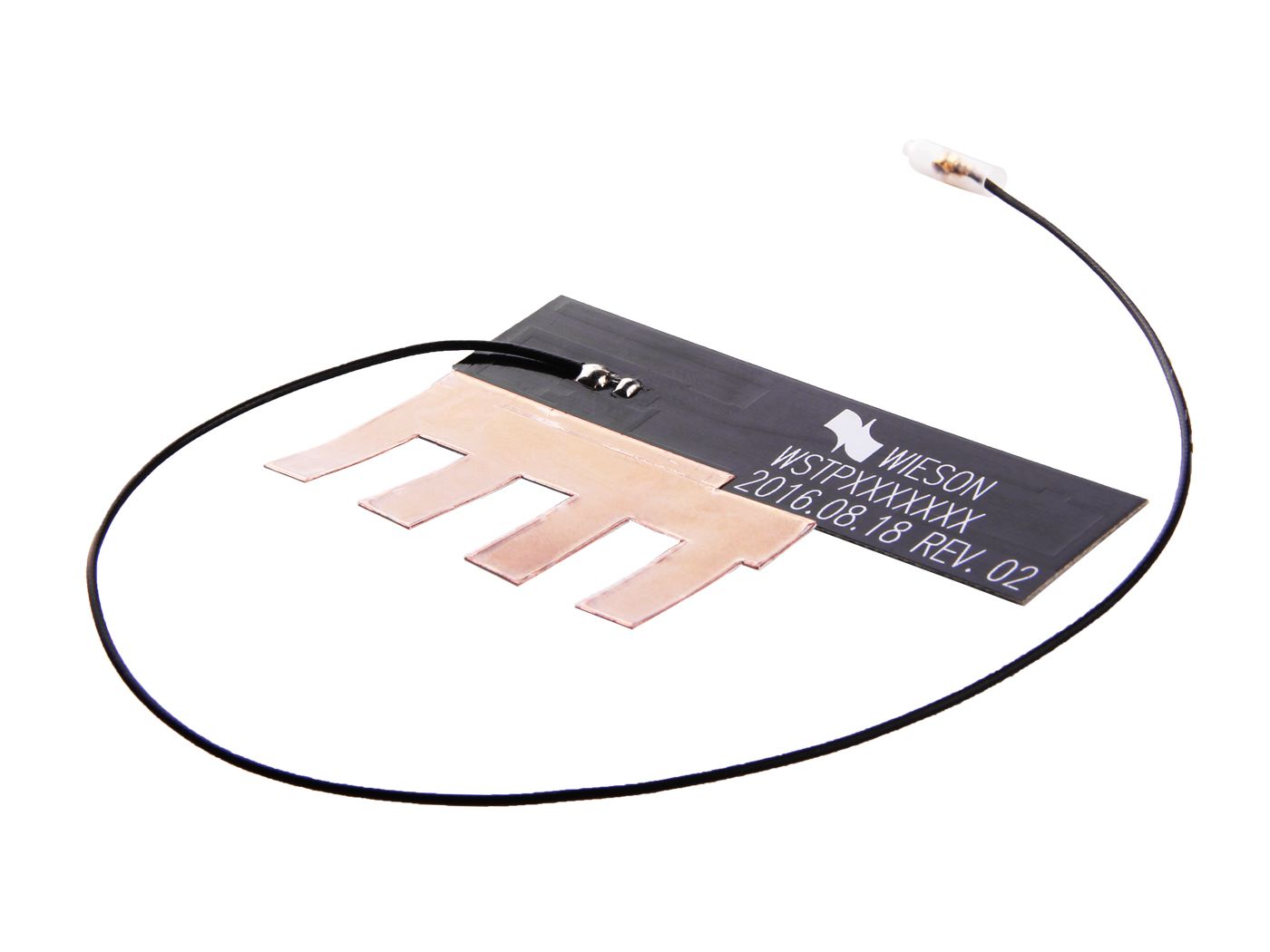

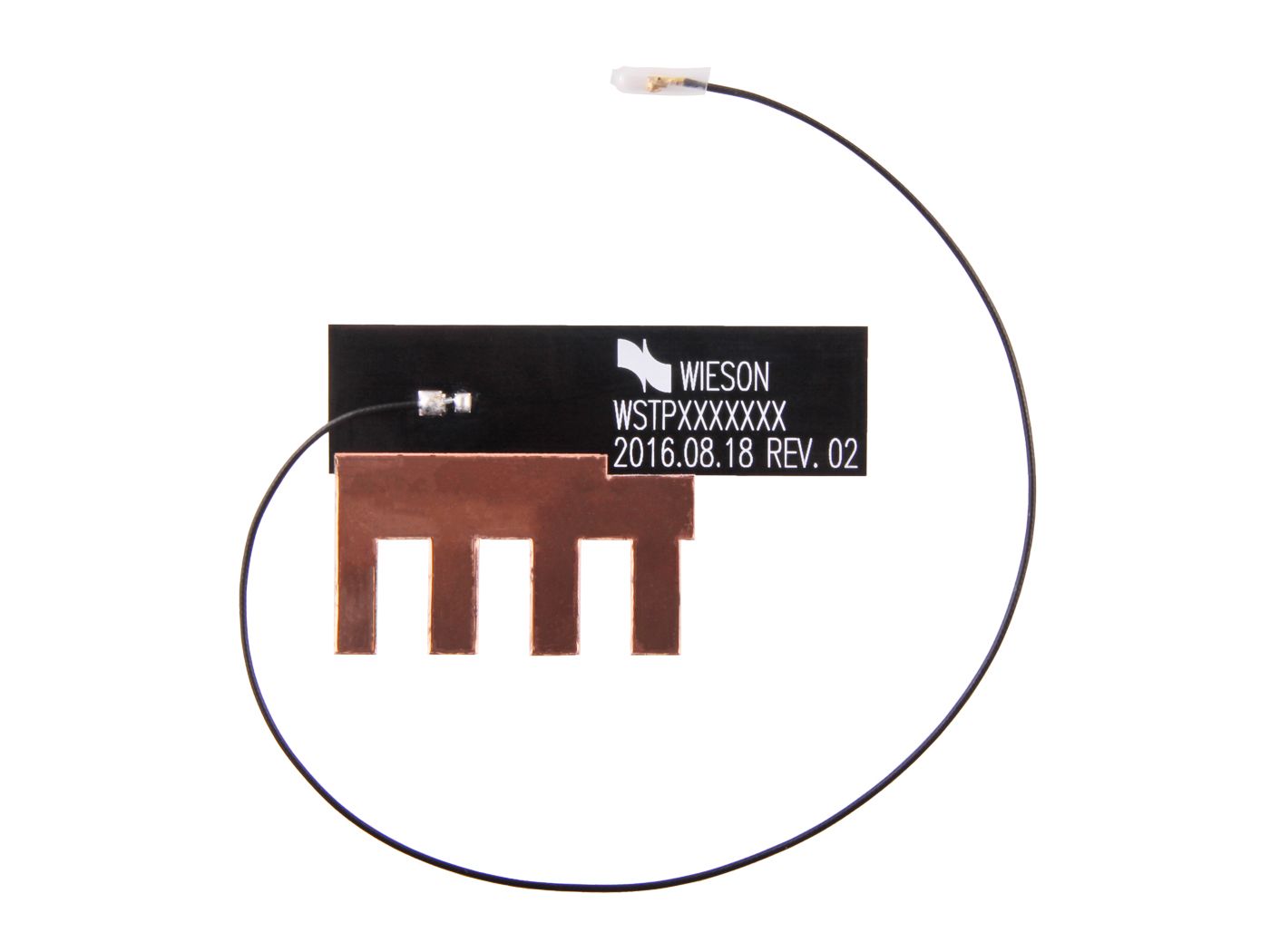

LTE-M Antenna for Pycom

External LTE-M Antenna Kit for use with the FiPy and GPy development boards.

Specification

• LTE band 28/38*2
• Frequency: 703~803 2520~2620(MHz)
• Antenna size: 75 x 21 (mm)
• PCB 0.6 mm

Low Bands

• (5, 8, 12, 13, 18, 19, 20, 28)
• Tx frequencies 699 to 915 MHz
• Rx frequencies 729 to 960 MHz

Mid Bands

• (1, 2, 3, 4)
• Tx frequencies 1710 to 1980MHz
• Rx frequencies 1805 to 2170 MHz

Technical details

• Dimensions: 75mm 21mm 21mm
• Weight: 40g
