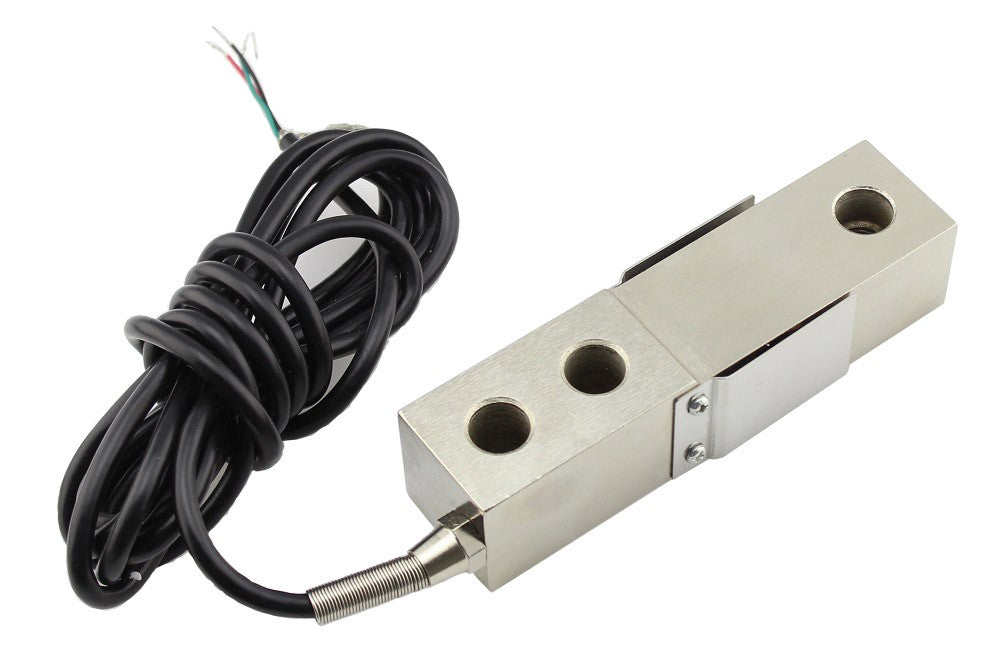

Weight Load Cell Straight Bar 200kg

The sensor elastic body was shear or bending of cantilever beam structure, one end fixed, one end bearing, shape of low height, high strength structure, it can be used for a variety of tensile and compressive force bearing and the measurement. It has: dust proof sealing, wide capacity, high precision, stable and reliable performance. Tt is convenient to install and use.Apply to electronic scale, weighing apparatus etc. ,such as weighing the various measuring, weighing industrial automation measurement and control system.


  • Rated load :200KG
  • Sensitivity :2.0±0.05mV/V
  • Zero balance : ±1%F.S
  • TCO : ±0.05%F.S
  • Input resistance : 350±20Ω
  • Output resistance : 350±5Ω
  • Insulation resistance : ≥5000MΩ
  • Safe overload : 150%F.S
  • Recomended excitation: 10~15V DC
  • Operating temperature range : -20~80°C
  • Cable Color Code :Input: Red(+) Black(-); Output: Green(+) White(-);

Weight Load Cell Straight Bar 200kg

Weight Load Cell Straight Bar 200kg
