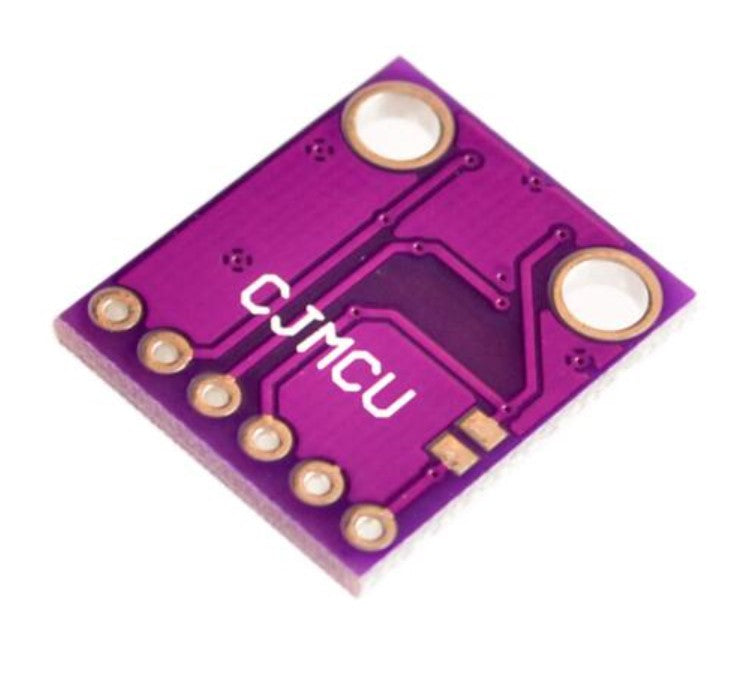

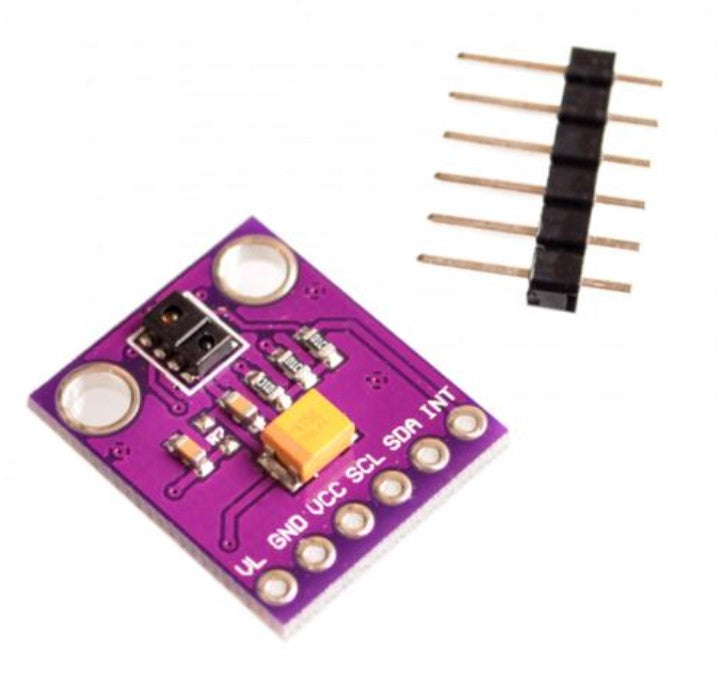

Light Ambient and Proximity Sensor APDS9900

Light Ambient and Proximity Sensor APDS9900 - Light Proximity Sensor APDS9900 provides digital light and proximity sensor data. It has a detection range of 100mm thus excluding a factory calibration. It can operate in bright sunlight and dark rooms. As an internal state machine it provides the function to be in low power mode between ALS and proximity reading. The ALS provides a photopic response to light intensity in very low light condition or behind a dark faceplate.

Frequently Asked Questions about Light Ambient and Proximity Sensor APDS9900

Q1: How do you define an ambient light sensor?

A sensor that measures the amount of ambient light in the environment is called an ambient light sensor. The functioning of lighting systems or the automated adjustment of display brightness can both be controlled using this information.

Q2: A proximity sensor is what?

A proximity sensor is a device that recognizes the presence of anything or someone nearby. Applications for safety and security as well as touchless device control can both benefit from this knowledge.

Q3: What exactly is an APDS9900?

A digital ambient light and proximity sensor, the APDS9900 combines proximity detection with ambient light in a single, small device. It provides precise proximity detection and ambient light level measurement using an integrated IR LED and photodiode.

Q4: How does the APDS9900 function?

The APDS9900 emits and detects light using integrated IR LEDs and photodiodes, respectively. When the IR LED is switched on, it produces light that is detected by the photodiode after reflecting off adjacent objects. The sensor utilizes this data to calculate how close the item is by measuring the quantity of light that is reflected. Similar to how it monitors ambient light levels, the sensor also provides the microcontroller with this data.

Q5: What is the proximity sensor's range in the APDS9900?

Depending on the object's reflectance, the proximity sensor in the APDS9900 has a range of up to 100 mm.

Q6: What is the APDS9900's ambient light sensor's sensitivity?

The APDS9900's ambient light sensor may be used in a variety of lighting settings thanks to its sensitivity range of 0.01 lux to 10,000 lux.

Q7: What kinds of uses do you see for the APDS9900 most frequently?

The APDS9900 is frequently utilized in applications that call for touchless device control, automated display brightness adjustment, and energy-efficient lighting systems. Mobile devices, laptops, TVs, smart homes, and vehicle interiors are a few specialized uses.

Q8: How is a microcontroller interfaced with the APDS9900?

The APDS9900 uses an I2C interface to talk to a microcontroller. A set of commands that are transmitted via the I2C connection can be used to set up and control the sensor.

Q9: What is the APDS9900's power consumption?

The APDS9900 uses just 90 UA of power when it is active and 0.3 uA when it is in power-down mode.

Q10: What is the APDS9900's working temperature range?

The APDS9900 may be used in a variety of settings thanks to its working temperature range of -40°C to +85°C.


Light Ambient and Proximity Sensor APDS9900

Light Ambient and Proximity Sensor APDS9900

Low stock: 7 left

Product Code


Regular price ₱ 135.00
Regular price Sale price ₱ 135.00
Sale Sold out
View full details
