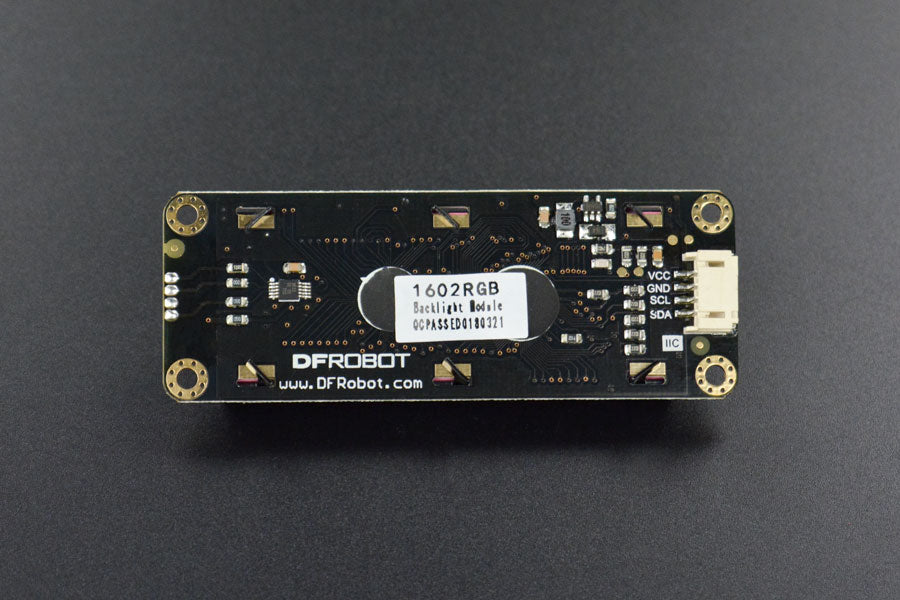

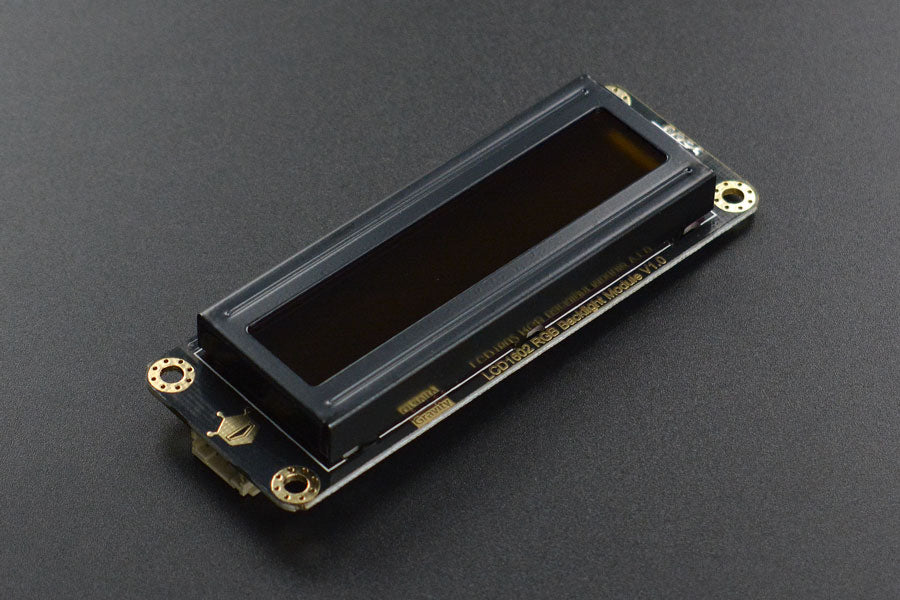

LCD RGB I2C 16x2 Gravity


Accustomed to the same LCD screen, do you want to have a different experience? DFRobot LCD1602 will bring you a new visual feeling, It is not the same as the previous LCD monochrome screen, supports RGB full-color font, can provide 16 million kinds of color combinations. DFRobot Gravity I2C 16x2 Arduino LCD with RGB Font Display use universal Gravity I2C interface, it means only two communication lines, you can realize communication and backlight control. The LCD screen can display 2x16 characters, support screen scrolling, cursor movement and other functions. Through dedicated Arduino library, you can complete all the design without cumbersome wiring and complex code.

SPECIFICATION

  • Operating Voltage: 3.3V~5.0V
  • Operating Current: ≤60mA
  • Display Description: 16*2

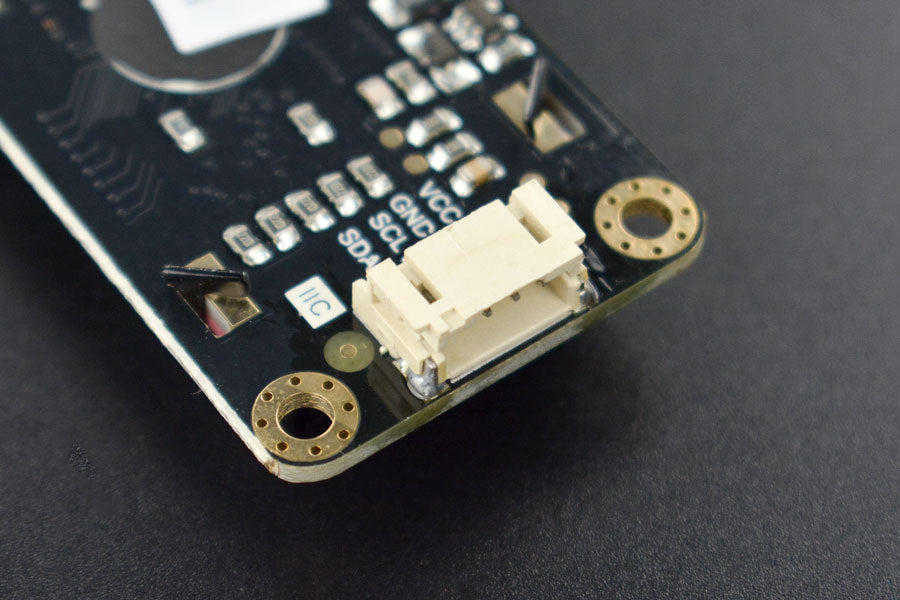

  • Communication Mode: IIC/I2C
  • Backlight: RGB can adjust backlight
  • Operating Temperature: -20 to +70℃
  • Storage Temperature: -30 to +80℃

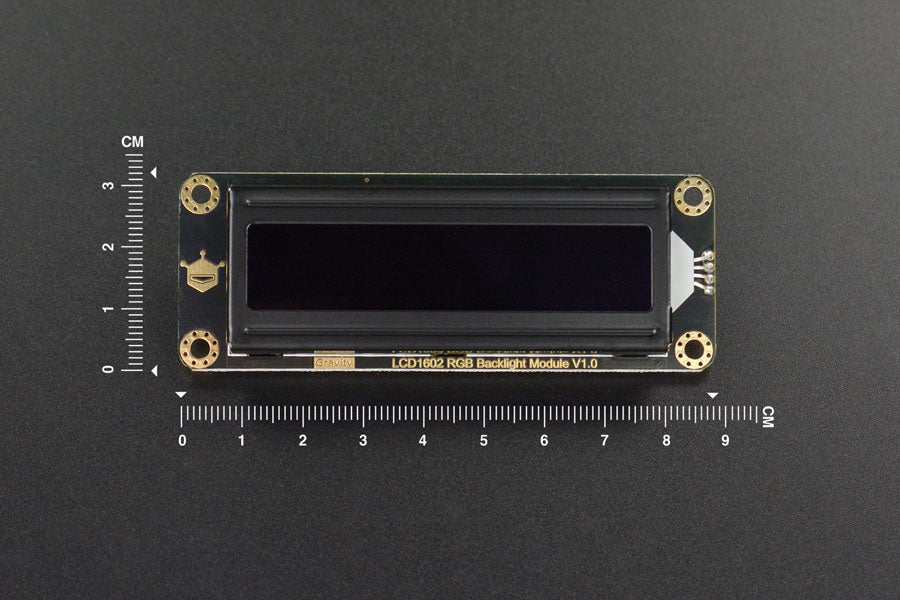

  • Dimension: 87.0*32.0*13.0mm/3.43*1.26*0.51in

DOCUMENTS

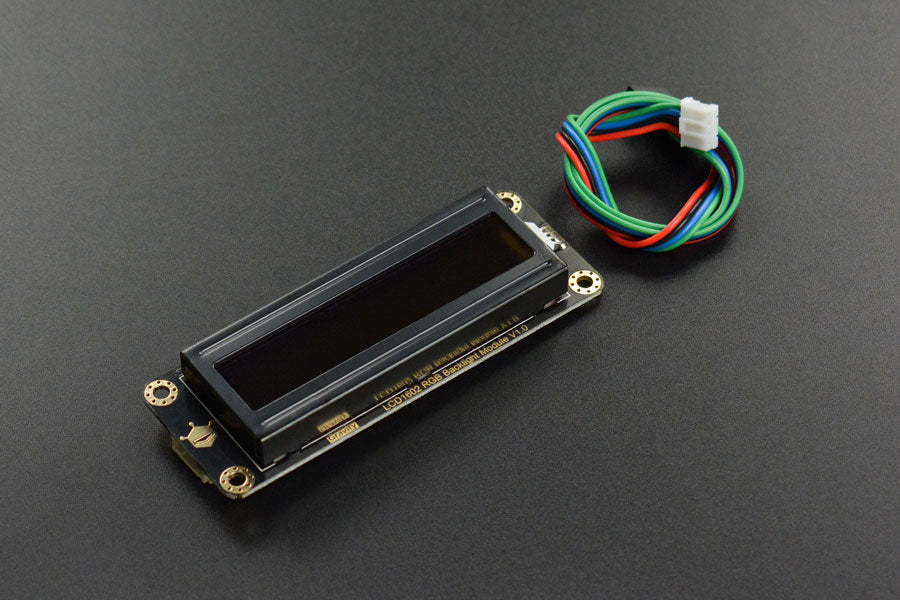

SHIPPING LIST

  • Gravity: I2C 16x2 Arduino LCD with RGB Font Display x1
  • Gravity I2C/UART sensor cable x1

LCD RGB I2C 16x2 Gravity

LCD RGB I2C 16x2 Gravity

Low stock: 2 left

Product Code

SKU:DFR0554

Regular price ₱ 705.00
Regular price Sale price ₱ 705.00
