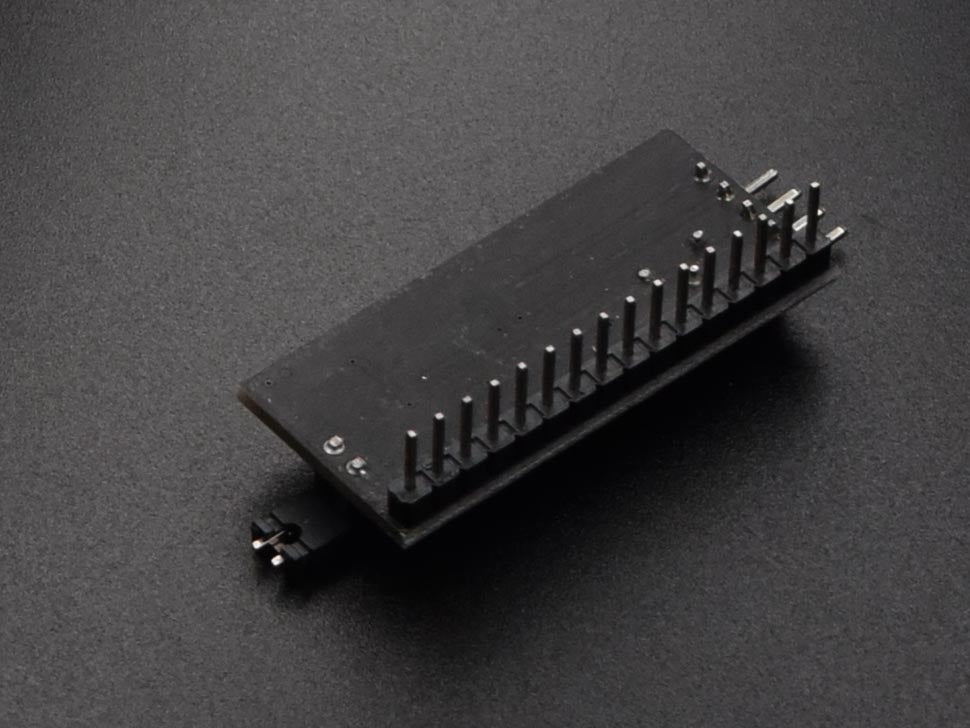

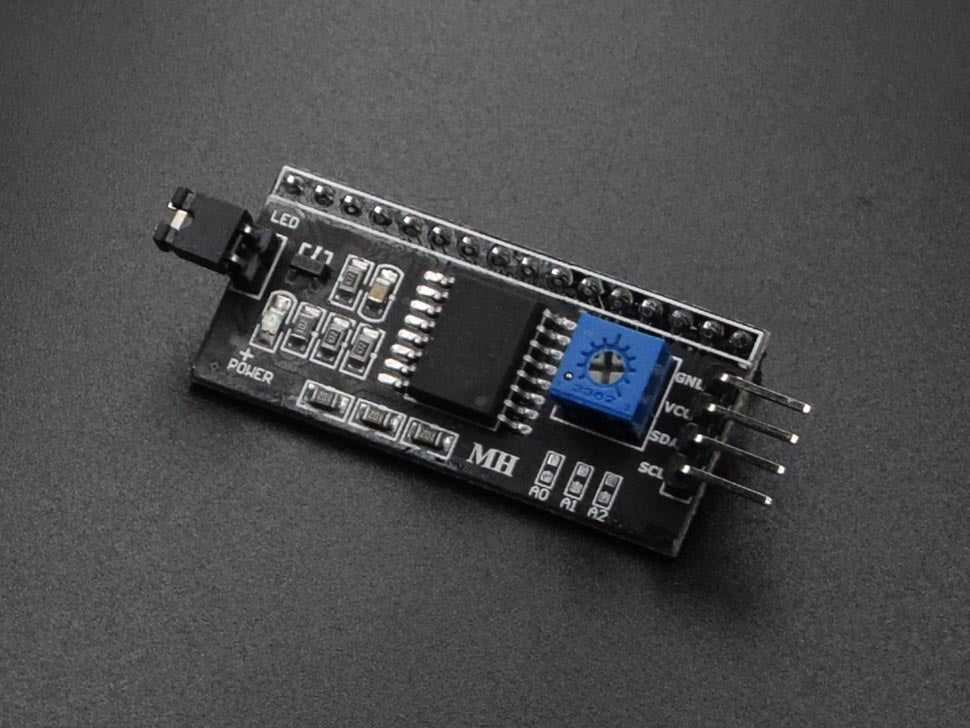

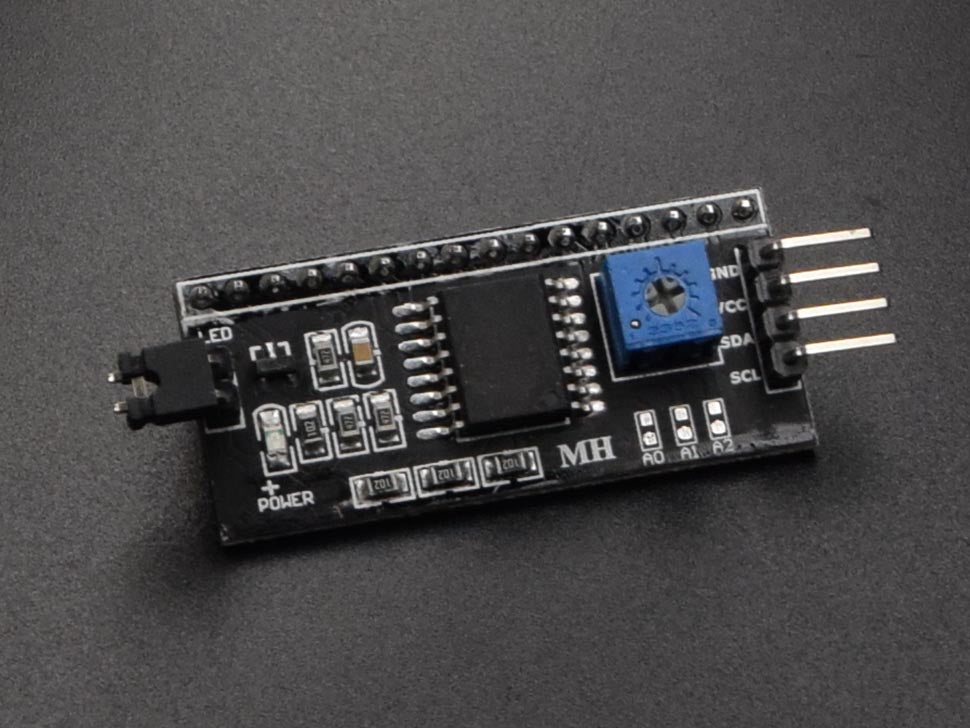

LCD1602 IIC I2C Interface Adapter Plate


The standard 1602 LCD needs at least 7 wire connections to work. With this LCD1692 I2C Interface Adapter Plate, you only need a total of 4 lines for both data transmission and power. This LCD adapter is based on the PCA8574, and you can check the datasheet below for more information. Although the form-factor is perfect for 1602 displays, this adapter plate is also compatible with other displays, including LCD1601, LCD1604, and LCD2004. For experienced users, you can also use this as a General Purpose Input/Output expansion.

Specifications:

  • I2C Address: 0x20-0x27(0x20 default)
  • Adjustable contrast
  • Supply voltage: 5V
  • Interface: IIC/TWIx1,Gadgeteer interface x2
  • 8-bit quasi-bidirectional port
  • LCDs supported: LCD1601,LCD1602,LCD1604,LCD2004
  • Size:40x20x10mm, 58x20x10mm(2.28x1.18x0.39")
  • Library: https://github.com/fdebrabander/Arduino-LiquidCrystal-I2C-library

LCD1602 IIC I2C Interface Adapter Plate

LCD1602 IIC I2C Interface Adapter Plate

25 in stock

Product Code

SKU:2365

Regular price ₱ 65.00
Regular price Sale price ₱ 65.00
