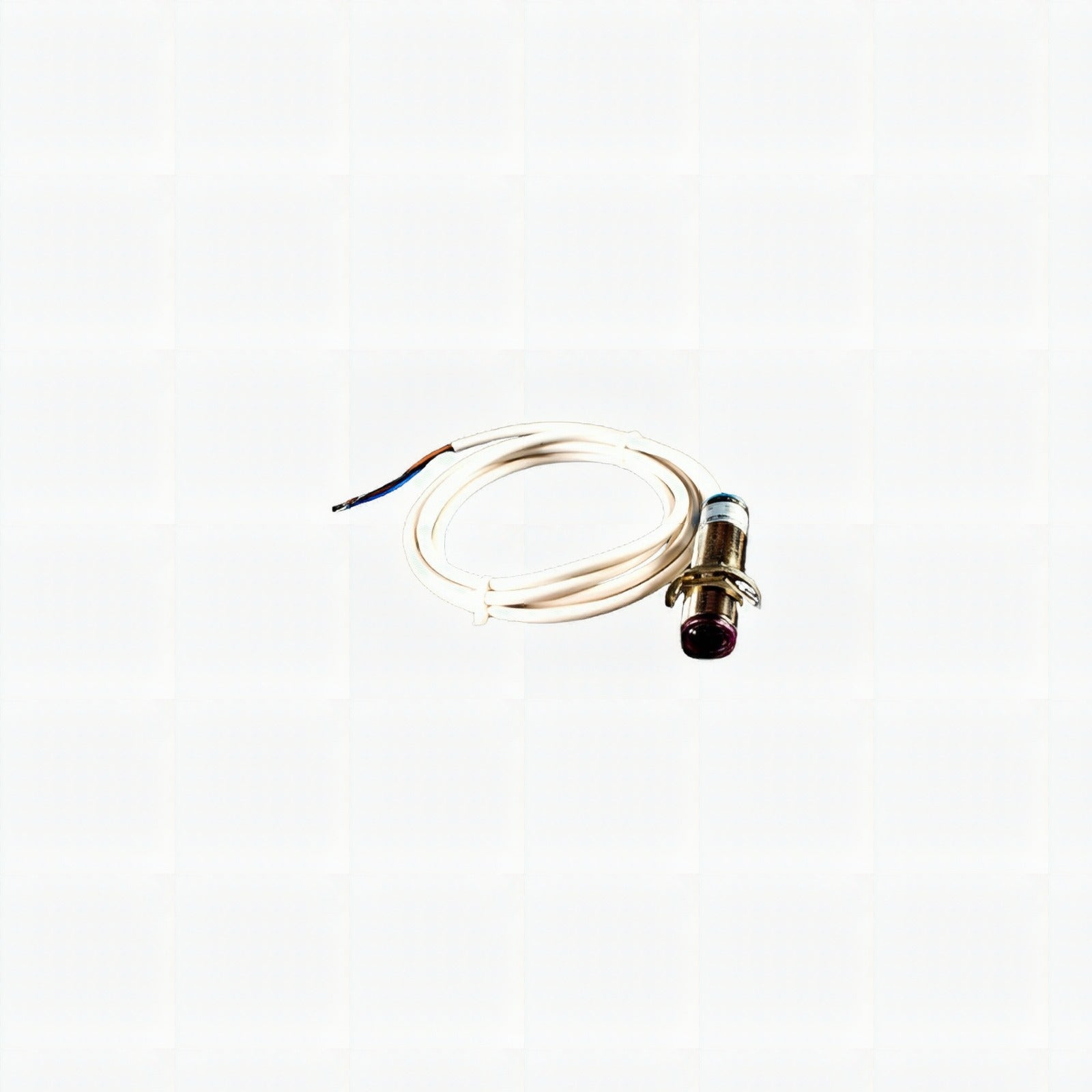

Measure Light and Optical Changes with a Compact Sensor
The Laser Photoelectric Switch GAB100M-AK-5V is a button or switch input module with digital output designed for light logging, optical switching, line tracking, and brightness-aware projects. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Detection Range: 65M (2559"); Voltage: 5VDC; Interface of the receiver: Digital.
Important: Water-quality sensors usually need calibration solutions and regular probe care. Probe condition and temperature can affect the reading.
Why you’ll love it
- Easy wiring: Digital
- Sensing range: 65M (2559")
- Power range: 5VDC
- Compact size: 65*M18 (mm)
- Useful spec: 30mW
- Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| Laser Photoelectric Switch GAB100M-AK-5V | button or switch input module with digital output | Current item |
| Photoelectric Counter IR LM393 | infrared proximity sensor | model LM393 |
| Reflective Optical Sensor with Transistor Output CNY70 | optical interrupter sensor | infrared sensing, temperature sensing |
| Opto Interrupter TCST2103 | optical interrupter sensor | infrared sensing |
What you can build
This sensor is a good fit for automatic brightness control, line followers, light meters, UV monitors, flame detection, and optical encoders.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard and jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include a microcontroller board, jumper wires, and pull-up or pull-down support when needed, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | Laser Photoelectric Switch GAB100M-AK-5V |
|---|---|
| Interface of the receiver | Digital |
| Detection Range | 65M (2559") |
| Voltage | 5VDC |
| Size | 65*M18 (mm) |
| Power(Emitter) | 30mW |
| Pointing Angle | 3℃ |
| Protection grade | IP66 |
| Corresponding Time | <5ms |
| Interface | Digital GPIO |
Wiring & usage notes
Connect power and ground, then wire the output pin to a digital GPIO input. Check whether the module uses active-high or active-low logic in your code. Water-quality sensors usually need calibration solutions and regular probe care. Probe condition and temperature can affect the reading.
What’s in the box
1 × Laser Photoelectric Switch GAB100M-AK-5V
Frequently Asked Questions
What does the Laser Photoelectric Switch GAB100M-AK-5V measure?
It is designed to measure light, color, or optical changes.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this Digital GPIO sensor?
This sensor provides a digital switching-style signal that is easy to read from a GPIO pin.
Does it need calibration?
Yes. Chemical and gas sensors usually need warm-up time, calibration, and periodic checking if you want stable readings.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
