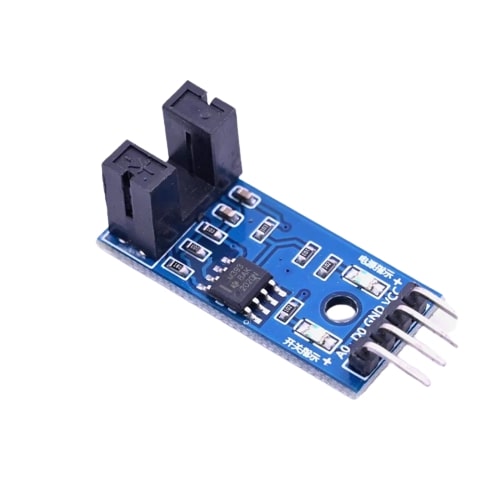

IR Speed Sensor Module Based on LM393

IR Speed Sensor Module Based on LM393 - Speed-sensing is very important in industrial applications in which process control require precise speed control of production belts to control the rate of manufacturing and also in robotics and autonomous system to determine the exact position of the arm or the tool and its movement. In industry, we use two types of speed sensors: magnetic induction and infrared. This 4 Pin Infrared Speed Sensor Module is used in speed control applications where you need to read the rotation of a disk. It is powered by any of the 3.3V or 5V supplies and gives digital output, which you can easily read with the help of the interrupt function on your microcontroller or development board.

  • LM393 Comparator onboard to give digital output
  • Low power requirement
  • Sensor output is High when the object is detected in the groove; otherwise, Low

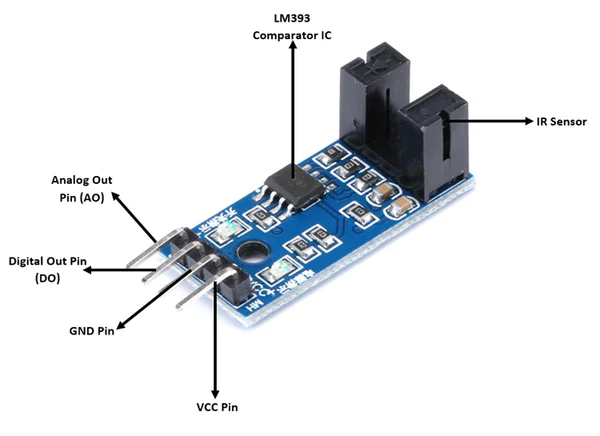

  • 4 Pins VCC, GND, Dout and Aout

Frequently Asked Questions About IR Speed Sensor Module Based On LM393


Q1: What is an LM393-based IR speed sensor module?


A device that employs an infrared (IR) sensor and the LM393 comparator IC to determine an object's speed or rotation is known as an IR speed sensor module based on LM393. It is often utilized in projects like industrial automation, robotics, and motor speed control.

Q2: How does a module for an IR speed sensor operate?


An IR transmitter and an IR receiver normally make up the IR speed sensor module. Infrared light from the transmitter is reflected off of a surface or object. An electrical signal is produced by the receiver once it recognizes the reflected light. The analog signal from the IR receiver is transformed into a digital output that shows whether or not the reflected light is present by the LM393 comparator IC. The speed or rotation of the item may be calculated by counting the intervals between pulses.

Q3: What distinguishing qualities does an IR speed sensor module based on the LM393 have?


Depending on the model and maker, an IR speed sensor module's functionality may change. However, a few typical traits include:

  • Compact size and easy integration.
  • Adjustable detection distance.
  • Digital output for easy interfacing with microcontrollers or other digital circuits.
  • Wide voltage input range.
  • High sensitivity and accuracy.
  • Low power consumption.
  • Wide operating temperature range.

Q4: How can I interface an IR speed sensor module with a microcontroller?


Interfacing an IR speed sensor module with a microcontroller typically involves connecting the digital output of the module to a digital input pin of the microcontroller. The microcontroller can then read the state of the digital input to determine the presence or absence of the reflected light. The specific connections and programming code may vary depending on the microcontroller and sensor module used. It is important to refer to the datasheets and documentation provided by the manufacturer for detailed instructions.

Q5: What are the applications of an IR speed sensor module based on LM393?


The IR speed sensor module based on LM393 has various applications, including:

  • Motor speed control: It can be used to measure the speed of motors and adjust their operation accordingly.
  • Robotics: It can be used to detect the rotation or speed of robot wheels or joints.
  • Conveyor belt monitoring: It can be used to monitor the speed of conveyor belts in industrial settings.
  • RPM measurement: It can be used to measure the rotational speed of objects like fans, wheels, or shafts.
  • Object detection: It can be used as a proximity sensor to detect the presence or absence of objects based on their reflective properties.
