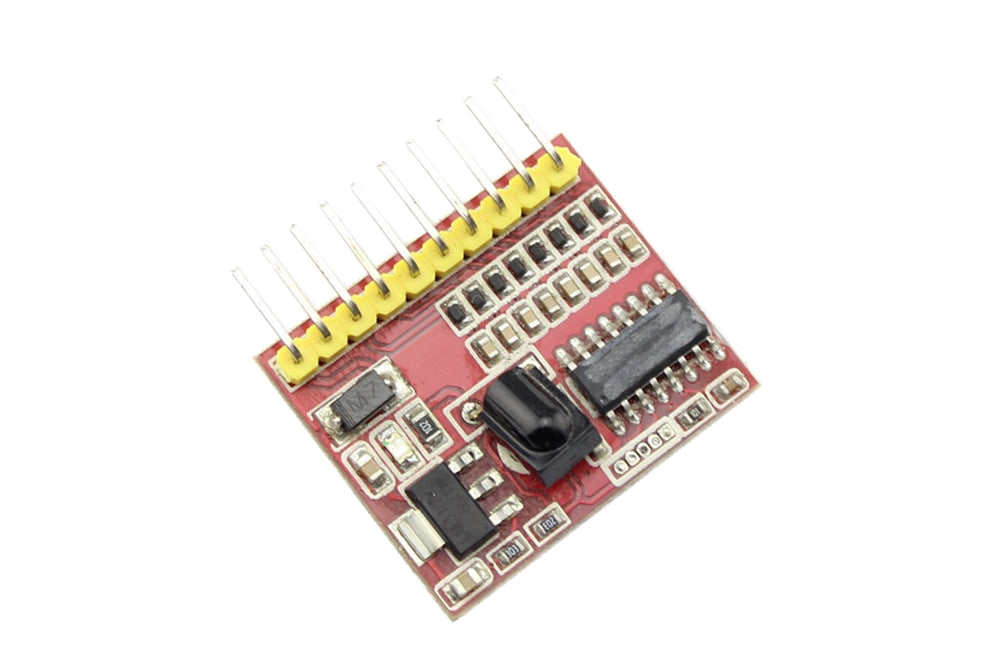

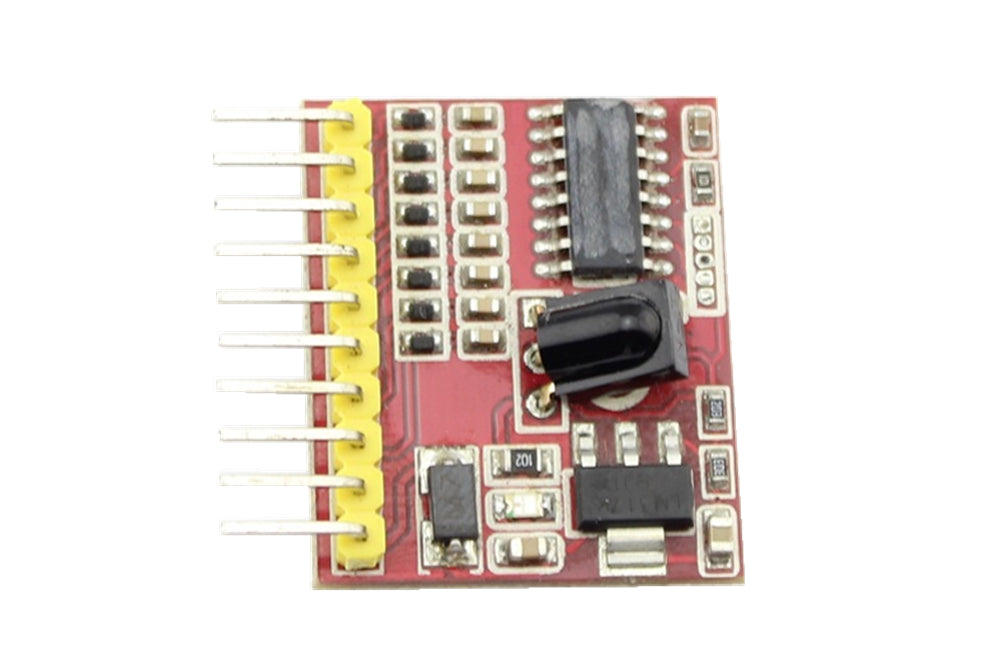

Infrared Remote Control 8 Channel Module with Digital Output

The infrared receiver is hardware that sends information from an infrared remote control to another device by receiving and decoding signals. The theoretic test distance of the kit is about 5-8 meters, but the practical application depends on the ambient factors you use, as well as the middle barrier, such as diaphragm, glass, obstructions or other material blocking.

Features

• Infrared remote control

• Digital output

• It can control all kinds of digital module

• It also can be used as DC motor controller

• Suitable for relay


Specification

• High level range: 3V-5V

• Low level range: 0-0.5V

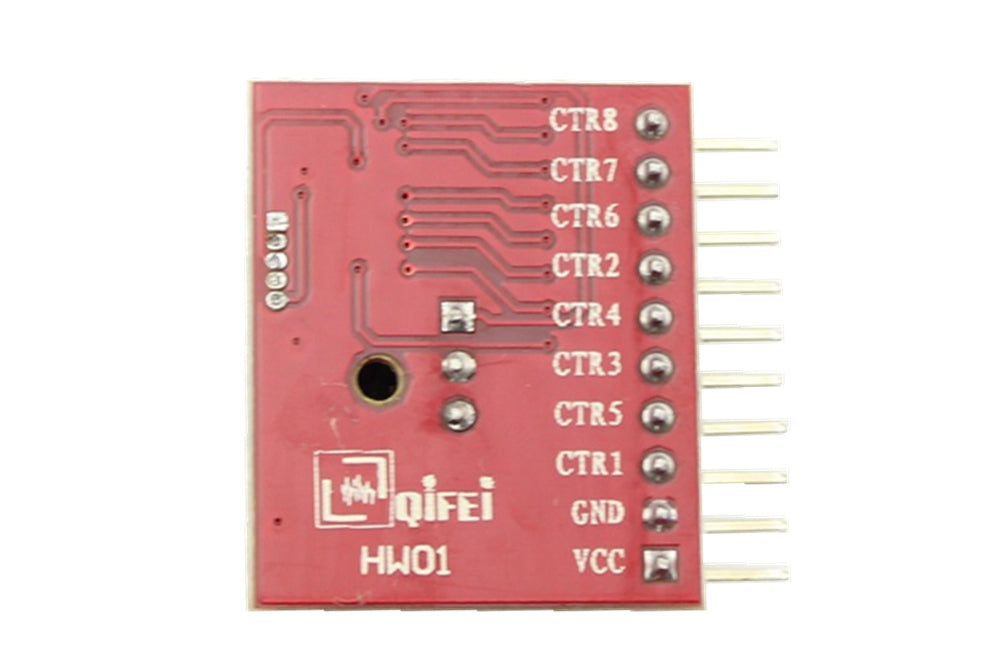

• VCC connect with 5V-24V voltage, others are used as control interface

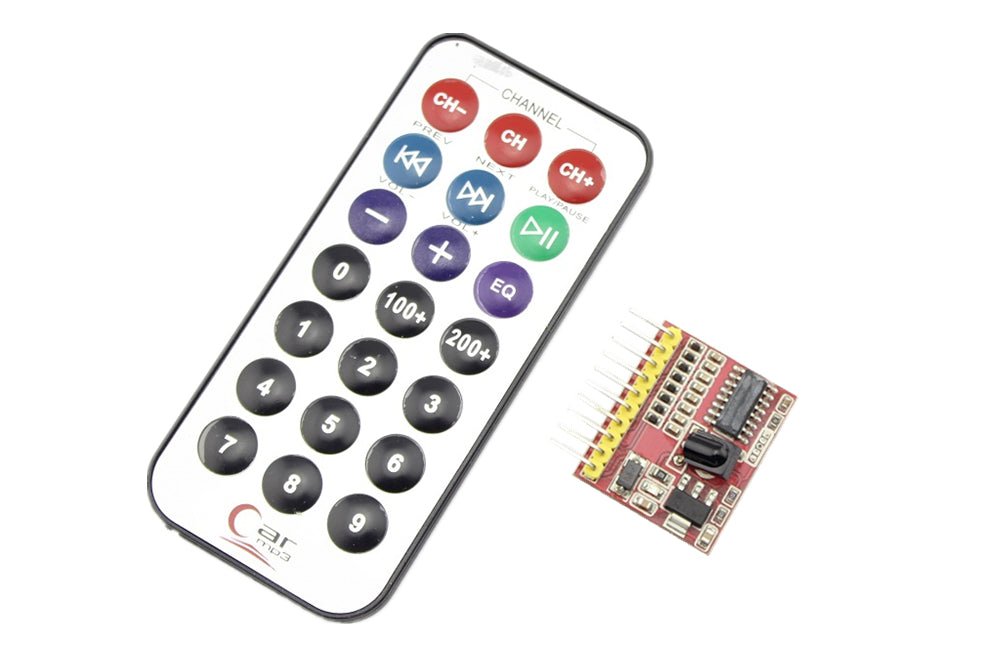

Package list

• 8 Channels Infrared Remote Control Module with Digital Output x1

• Infrared Remote Controller x1
