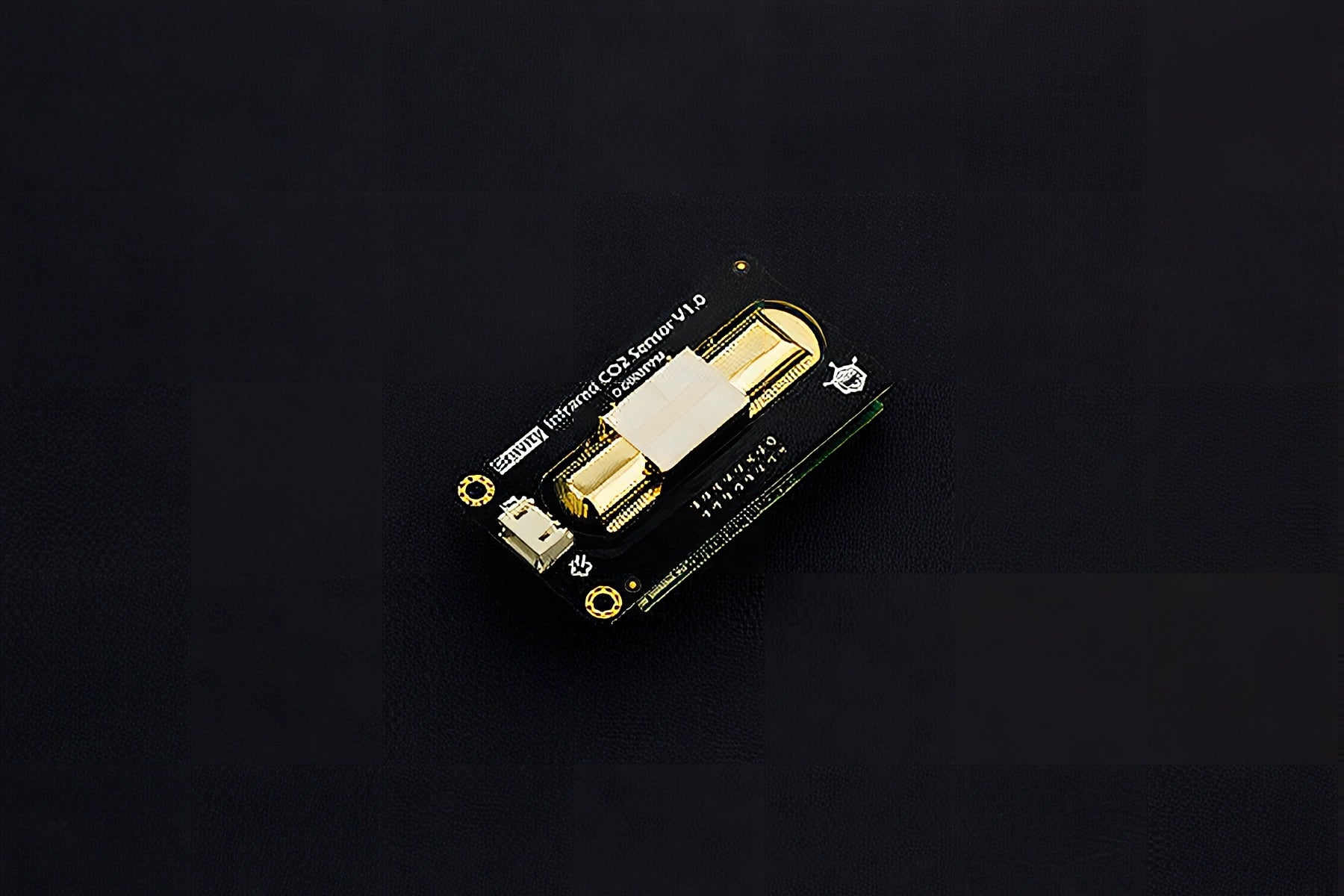

Add Reliable Infrared CO2 Sensor Analog For Arduino 0~5000 ppm Gravity Sensing to Your Next Build
The concentration of carbon dioxide (0.03% usuallly) is related to daily life. Recently, there’s a study showing that the atmospheric CO2 content has reached 0.0385% (385 ppm) which is the highest value since 2.1 million years. The raise of atmospheric CO2 content to some extent results in global climate change. How to accurately measure the carbon dioxide gas concentration is becoming a universal research topic.
DFRobot released its latest high-precision analog infrared CO2 sensor. The effectively measuring range is from 0 to 5000ppm. This sensor is based on non-dispersive infrared ( NDIR ) technology and has good selectivity and oxygen-free dependency. Besides, its service life could up to 5 years! It integrates temperature compensation and support DAC output. Most importantly, the product is easy to use; it is compatible with all types of microcontrollers such as Arduino with ADC function.
Important: Use the official DFRobot links below for wiring, sample code, downloads, and the latest setup notes for this SKU.
Why you'll love it
- Waterproof and anti-corrosion
- High sensitivity
- Low power consumption
- Excellent stability
- Temperature compensation
- Excellent linear output
What you can build
This part fits monitoring, measurement, logging, alarms, and automation builds. It works well in Arduino, ESP32, and Raspberry Pi style projects where you need reliable real-world data from the infrared co2 sensor analog for arduino 0~5000 ppm gravity.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus sensor cables, headers, or a matching expansion shield for faster setup.
Recommended add-ons
Useful add-ons include displays, data logging modules, waterproof enclosures, and matching Gravity cables or sensor shields.
Technical specifications
| Product | Infrared CO2 Sensor Analog For Arduino 0~5000 ppm Gravity |
|---|---|
| SKU | SEN0219 |
| Brand | DFRobot |
| Interface | Analog, USB |
| Gas Detection | Carbon Dioxide |
| Operating voltage | 4.5 ~ 5.5V DC |
| Average Current | <60mA @ 5V |
| Peak Current | 150mA @ 5V |
| Output Signal | Analog output (0.4 ~ 2V) |
| Measuring Range | 0 ~ 5000ppm |
Pinout & usage notes
For analog readings, use a stable reference and keep wiring short when possible for cleaner signals. If you are using Gravity connectors, align the plug correctly and avoid forcing the cable into the wrong header.
DFRobot resources
Official product page: View on DFRobot
Wiki / documentation: Open DFRobot wiki
What’s in the box
1 × Infrared CO2 Sensor Analog For Arduino 0~5000 ppm Gravity
Frequently Asked Questions
Can I use this for logging or monitoring projects? Yes. It is a good fit for data collection, automation, and alert-based builds when paired with a supported controller.
Does it work with other boards too? Often yes, as long as voltage, interface, and pin mapping match. ESP32 and Raspberry Pi users should still check the official docs first.
Where can I find wiring and examples? Use the official DFRobot product page and wiki links below for guides, downloads, and code examples.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
