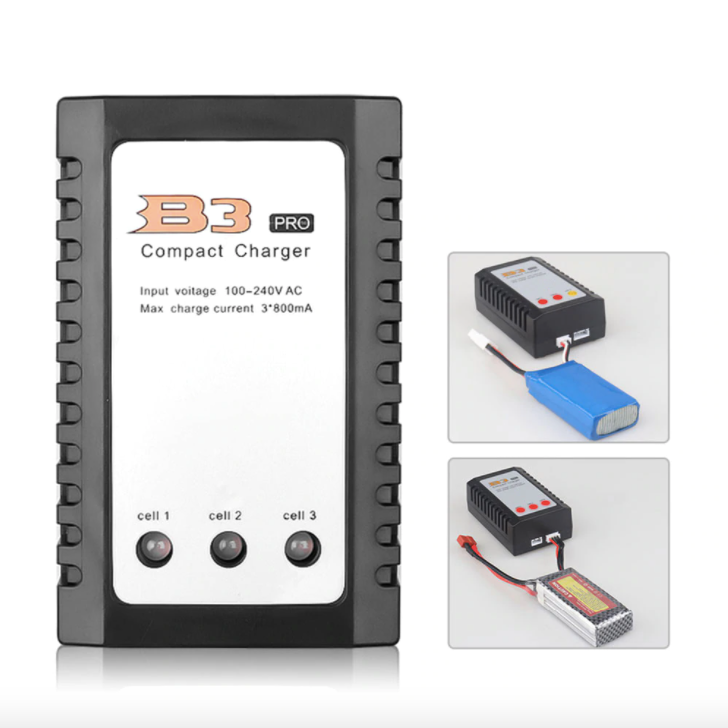

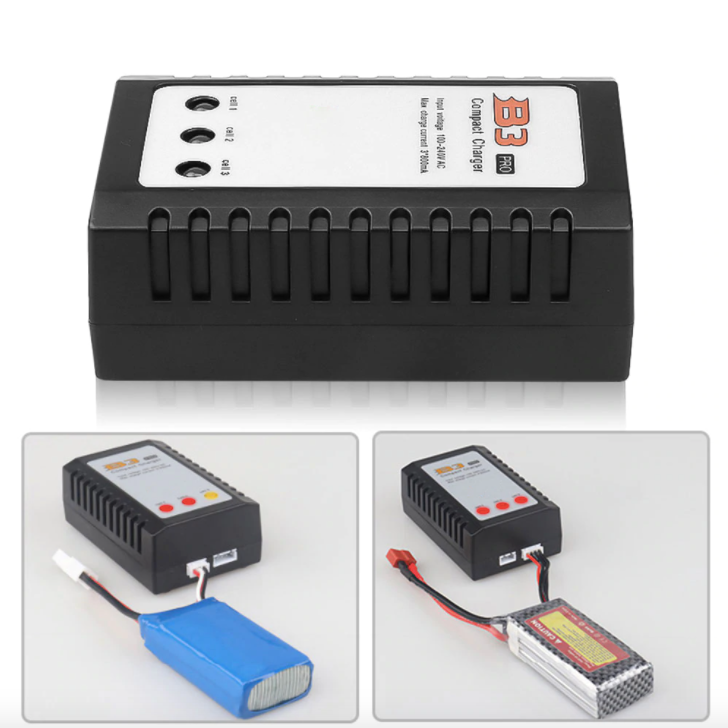

IMAX RC B3 Pro Compact Balance Charger for 2S 3S 7.4V 11.1V Lithium LiPo Battery

IMAX RC B3 Pro Compact Balance Charger for 2S 3S 7.4V 11.1V Lithium LiPo Battery - A compact balance charger for 2 and 3 cell LiPo battery fast charging with wide AC input. An internal 100-240V AC switch power is built-in, and the high precision balance circuit can supply a larger current up to 850mA per cell. It has a double color LED that can display the process of charging (RED: charging; GREEN: full).

This charger is compact and light, especially there is a separated corresponding balance port for each battery pack.

You can charge this battery: Battery Lithium-Ion 1000mAh 7.4v and Battery Lithium-Ion 2200mAh 7.4v

Specifications:

  • Voltage input: AC 110V-240V
  • 850mA is the balance charge current.
  • Charger current maximum: 3x800mA
  • 3x Bicolor LED Display
  • 10W maximum charge power
  • European Union plug
  • LED displays in green and red
  • Case substance: ABS
  • Size: 90x55x35mm
  • Type of Battery: LiPo 2S- 3S
  • Type: LiPo 2S- 3S

Features:

  • We now have a new, simple, compact balancing charger for 2 and 3 cells of LiPo batteries that can charge them quickly and with a wide range of AC input thanks to advancements in electric technology.

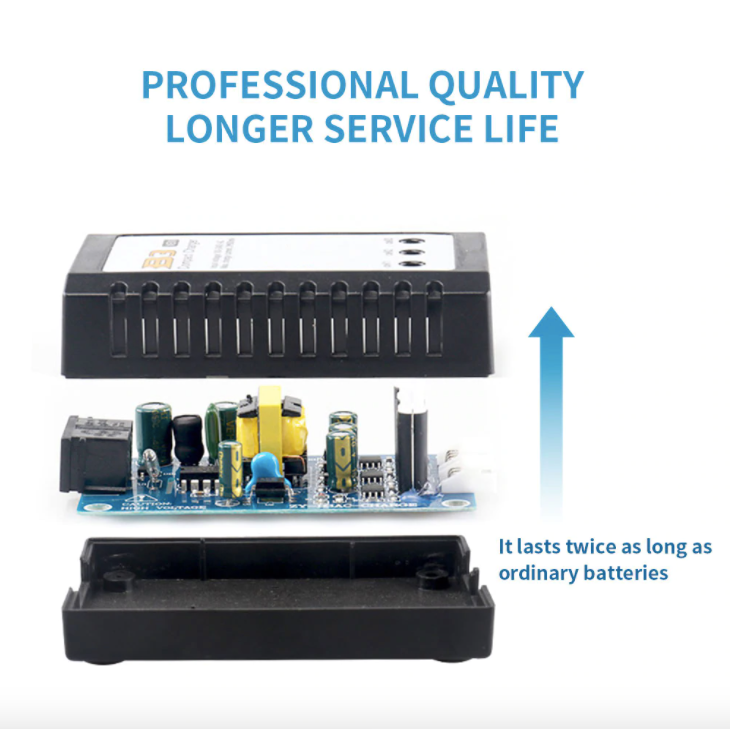

  • The high accuracy balance circuit can offer a bigger current up to 850mA per cell and has an internal 100-240V AC switch power

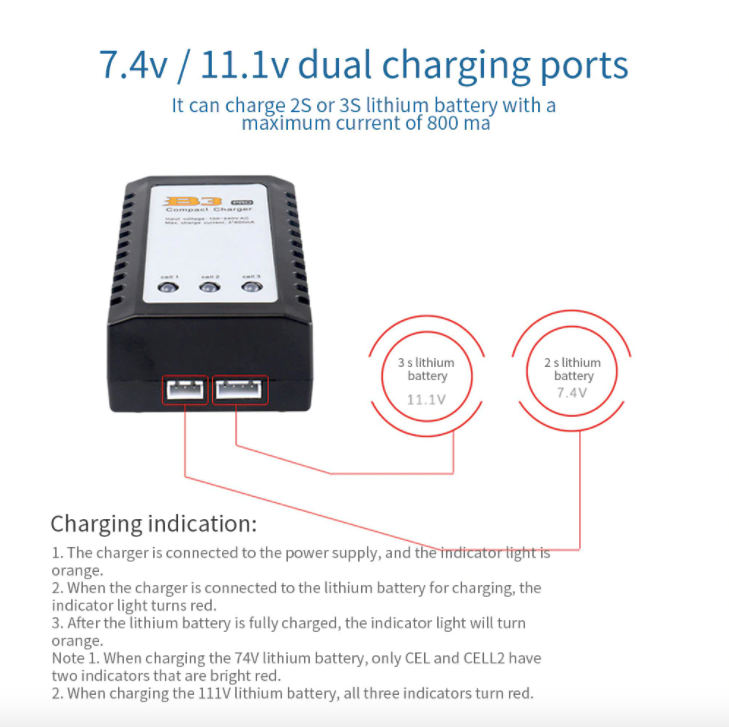

  • Double-color LEDs can show the charging progress (RED: charging; GREEN: full).
  • This charger is small and lightweight, and it has a unique balance port for each rechargeable battery.

Warnings:

  • Only utilize LiPo battery types with the charger. Never try to charge any other kind of battery. LiFe, Lilo, or NiMh/NiCd batteries cannot be charged using this charger. Pay attention to any warnings and cautions that came with your battery.
  • Never use a charger alone or unattended. Terminate the process immediately if any errors are seen.
  • Avoid exposing the charger to moisture, dust, filth, heat, glare from the sun, and vibration. Don't let it fall.
  • Check all connections once more before beginning the charging process. Reverse polarity should not be connected.
  • A heat-resistant, non-flammable, non-conductive surface should be used for both the charger and the battery to be charged.
  • Never put them on a carpet, a vehicle seat, or anything similar. Keep explosive and flammable substances far from the working area.
  • We advise utilizing a LiPo charging safety bag, which is readily available from most hobby merchants when charging LiPo batteries.
  • Never charge a LiPo battery that has undergone any sort of swelling.
  • Always connect the adapters cord to the charger first, and only then to the battery that needs to be charged, to prevent short-circuits between the input and output power adapter cord connections. Switch the order around while disconnecting.

QUICK SPECS:

  • Input voltage: 100 - 240V AC50 / 60Hz
  • Output Current: 3 x 800mA
  • Suitable for 2 cell and 3 cells Li-Po Batteries
  • Dimension: 90mm x 55mm x 35mm
  • Weight: 180g
The IMAX RC B3 Pro Compact Balance Charger is designed to safely charge 2S and 3S Lithium Polymer (LiPo) batteries with voltage ranges of 7.4V and 11.1V.

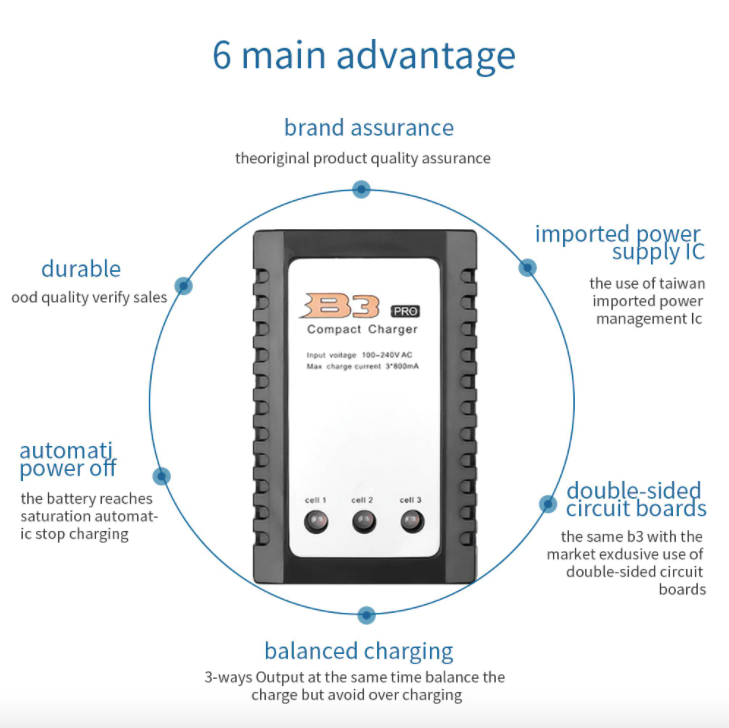

Safety Features


Some of the safety features included in this charger are:

Overcharge protection - The charger will automatically stop charging when the battery is fully charged, preventing overcharging and prolonging the life of the battery.

Short circuit protection - The charger will automatically shut off if a short circuit is detected, preventing damage to the charger and battery.

Temperature monitoring - The charger is equipped with a temperature sensor that will stop charging if the battery becomes too hot, protecting the battery from overheating.

Reverse polarity protection - The charger will not function if the battery is connected with the wrong polarity, protecting both the charger and battery from damage.

Automatic current control - The charger will automatically adjust the charging current based on the capacity of the battery being charged, ensuring that the battery is charged safely and efficiently.

Frequently Asked Questions


Question. How does the B3 charger work?


Answer. The B3 is a straightforward device to operate. To get started, plug it into a power source and the three green LEDs will turn on, then briefly switch to red to show that the charger is prepared. Then, attach the balance lead of the battery to the balance port of the B3. After a 2-second delay, the charger will automatically detect the voltage of the battery and initiate the charging process.

Question. How to charge a 3-cell LiPo battery?


Answer. The most secure method for charging a lipo battery and the one that minimizes stress on the battery is to charge at a rate of 1C, which means that the current will take 1 hour to fully charge the battery, assuming it has a starting voltage of around 3.2v and is completely drained. This charge rate of 1C is equivalent to charging the entire capacity of the battery in 1 hour
