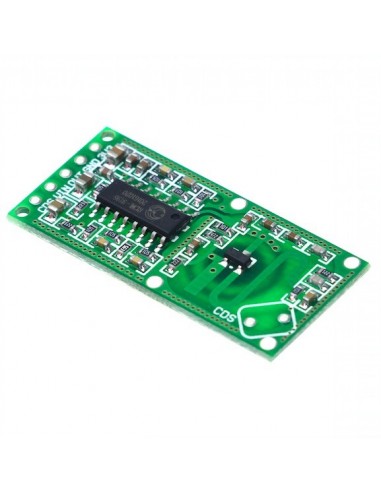

Microwave Doppler Radar Distance Sensor SENS-RCWL-0516

Using microwave signal it can detect a motion in 360 angle within 7 meter radius. It can support 4 to 28V of input. It is better than an IR Sensor.

Specifications

• Operating Voltage: 4-28V
• Operating Current: 2.8mA (typical); 3mA (max)
• Detection Distance: ~7 meters
• Transmitting Power: 20mW (typical); 30mW (max)
• Output Voltage: 3.2-3.4V
• Output Voltage Driving Capacity: 100mA
• Trigger Way: repeat trigger
• Output Control Low Level: 0V
• Output Control High Level: 3.3V
• Operating Temperature: -20~80 celsius
• Storage Temperature: -40~100 celsius
