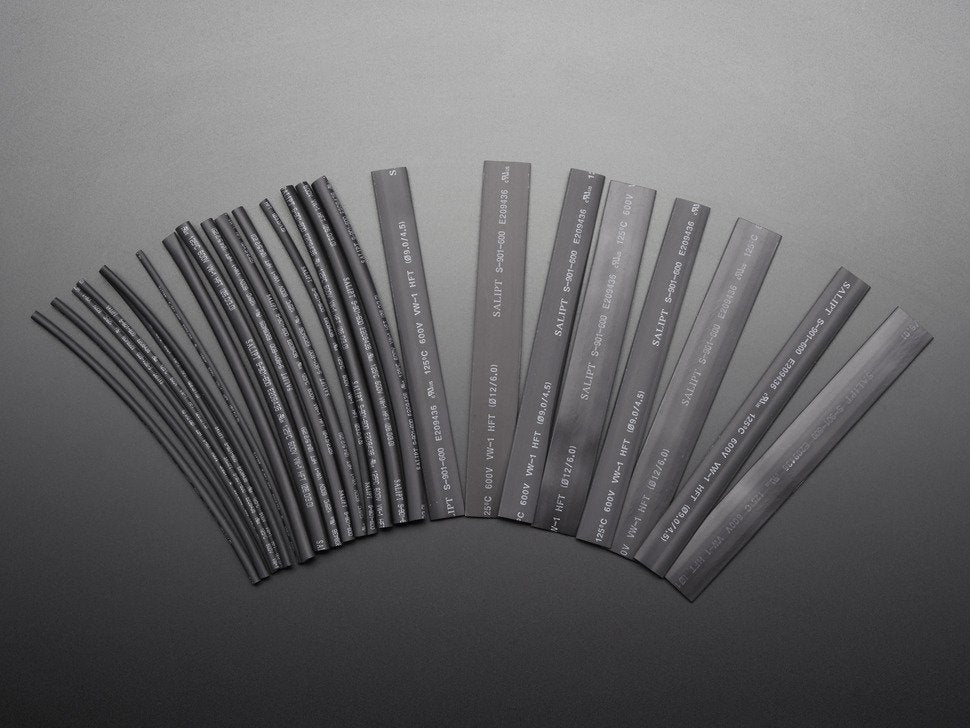

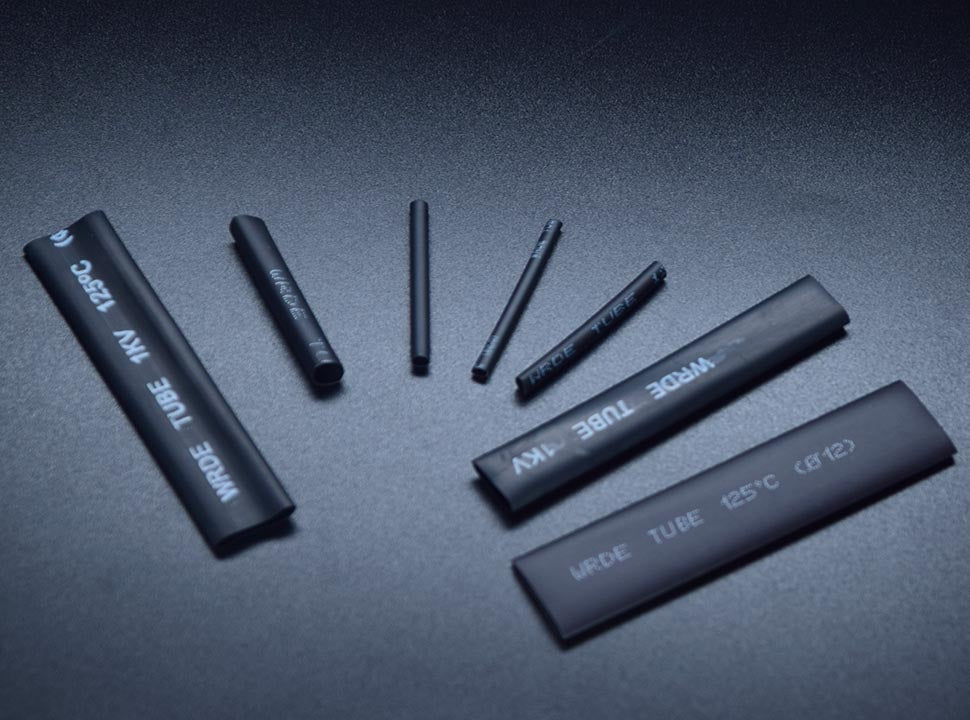

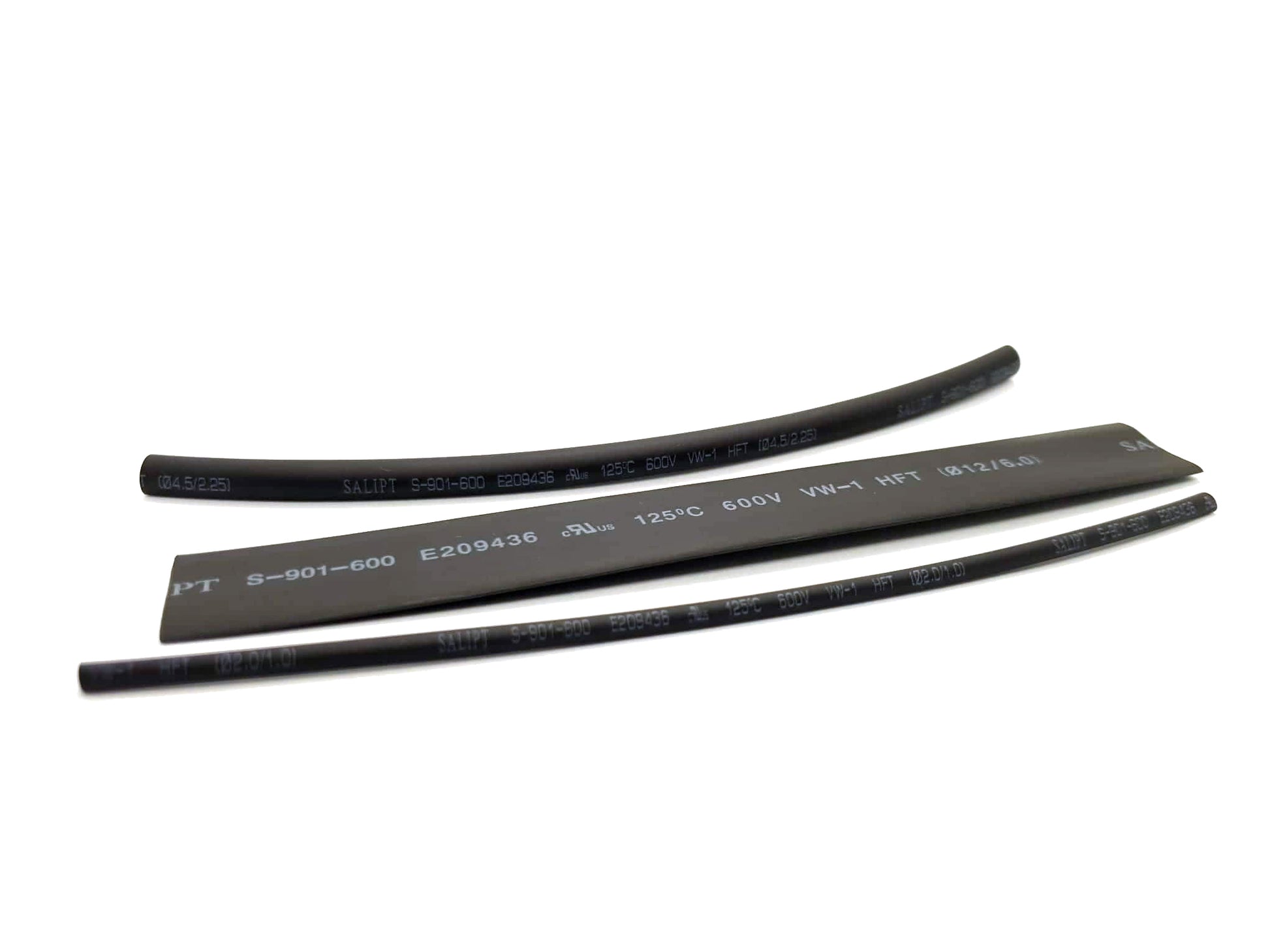

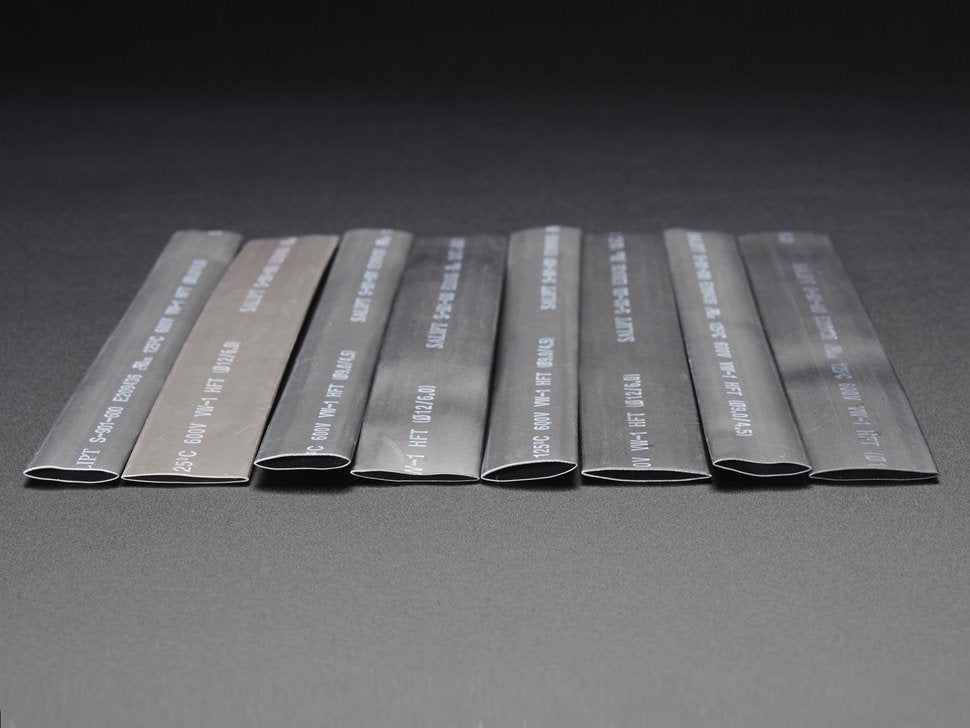

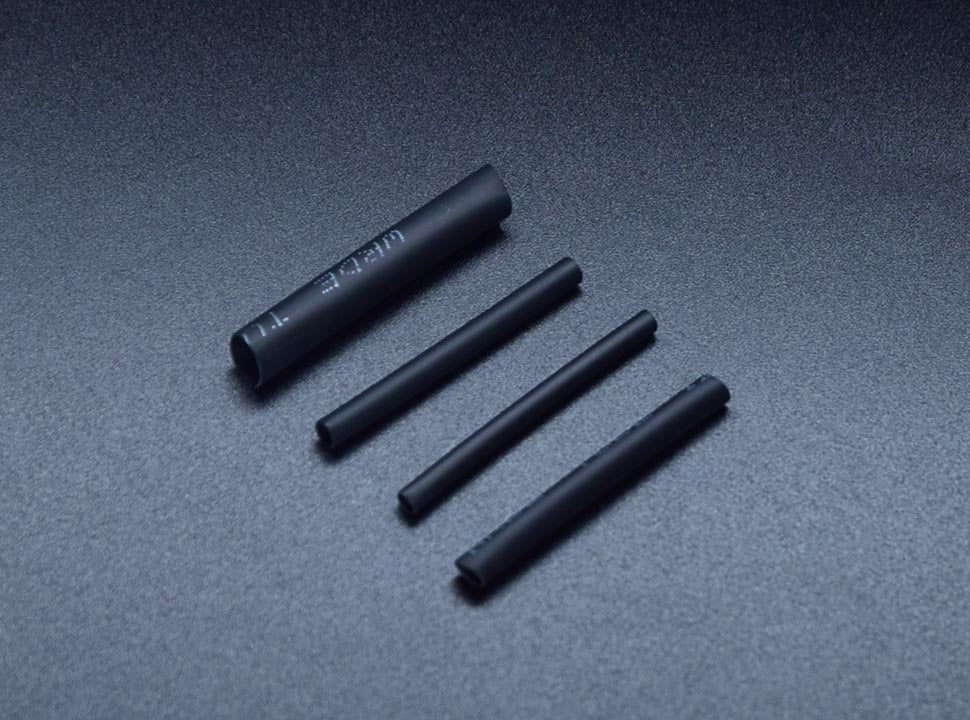

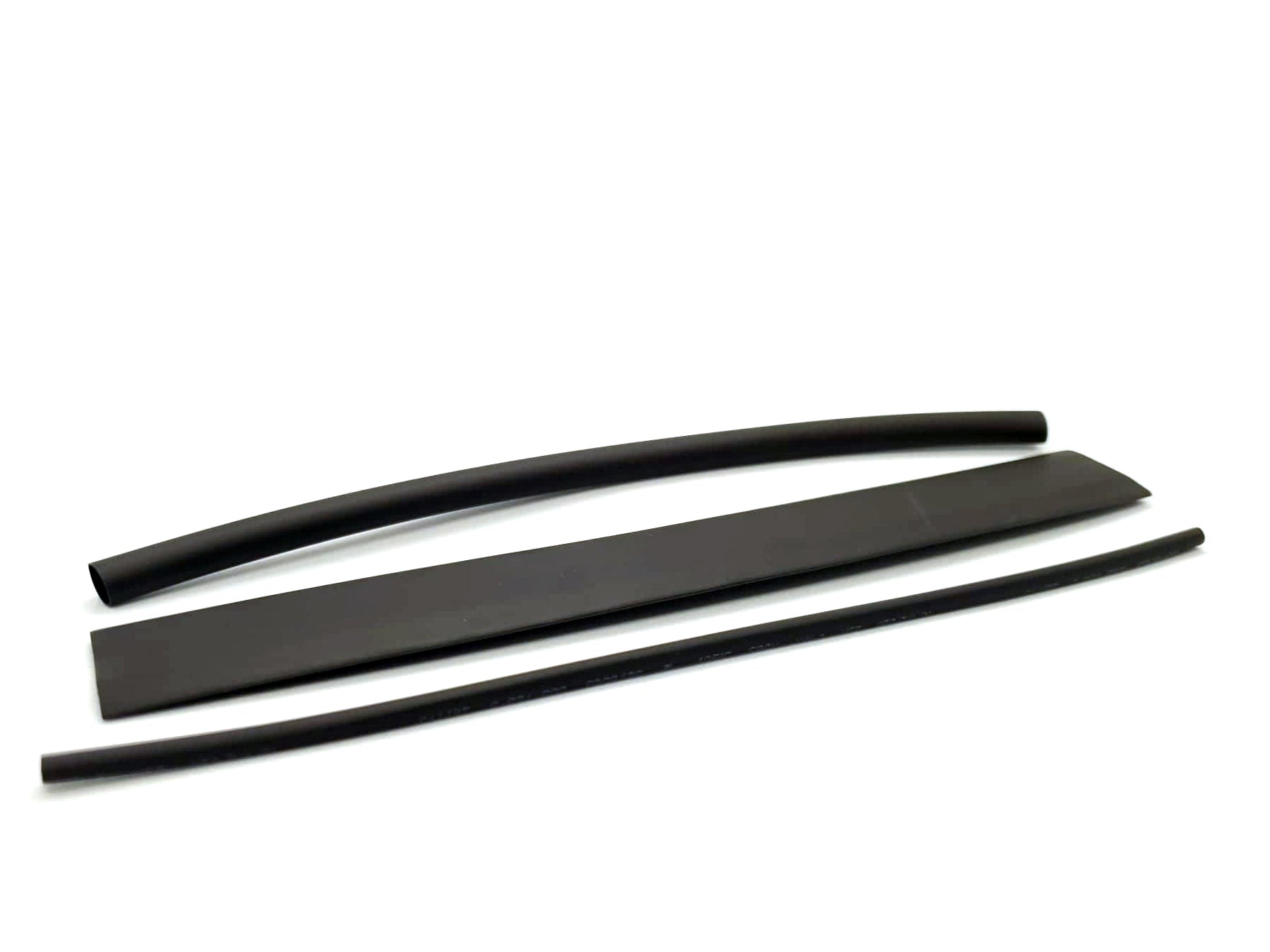

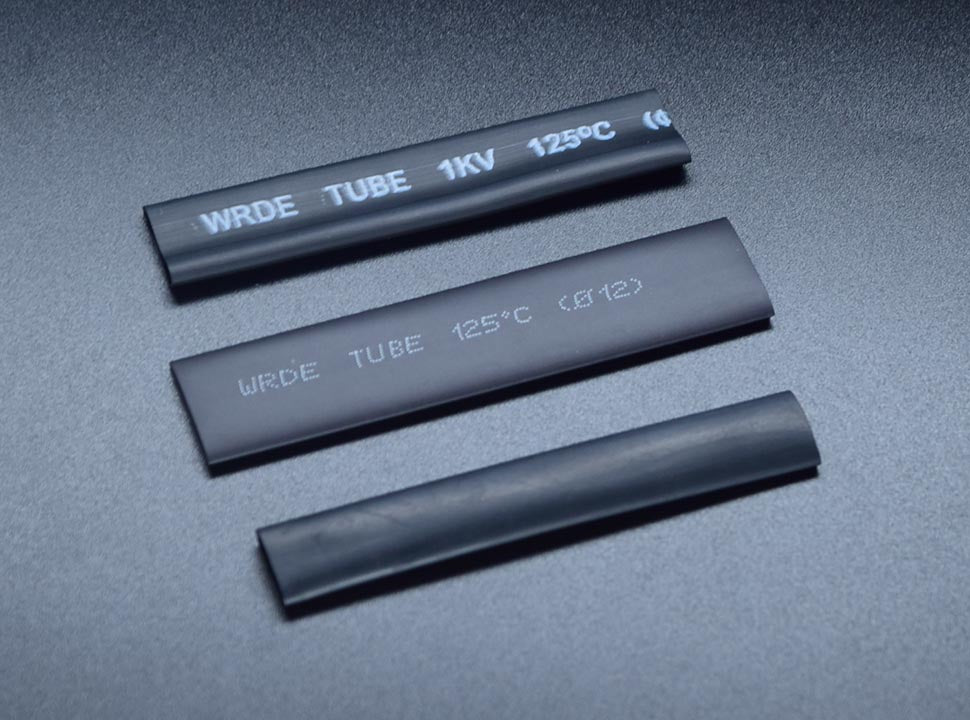

Heat shrink is the duct tape of electronics, it keeps your stuff all safe and kept together. Especially when wiring and soldering, use heat shrink to add mechanical strength to cables. We use this stuff all the time and having a zip-lock bag of all the possible sizes is super handy.
- 2.0mm,2.5mm,3.5mm,5.0 mm,7.0 mm,10.0mm,13 mm
- 2:1 shrink ratio
- High-grade flexible polyolefin material
- UL approved
- Material: Polyolefin
- Shrinkage Ratio:2:1 (will shrink to 1/2 its supplied diameter)
- Minimum Shrinkage Temp:+70°C
- Full Shrinkage Temp:+110°C maximum
- Operating Temperature:-55°C to +125°C
- Tensile strength:10.4 Mpa
- Dielectric strength:15 kV/mm
- Flame Retardant
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
