Add Reliable Heart Rate Monitor Sensor Gravity Sensing to Your Next Build

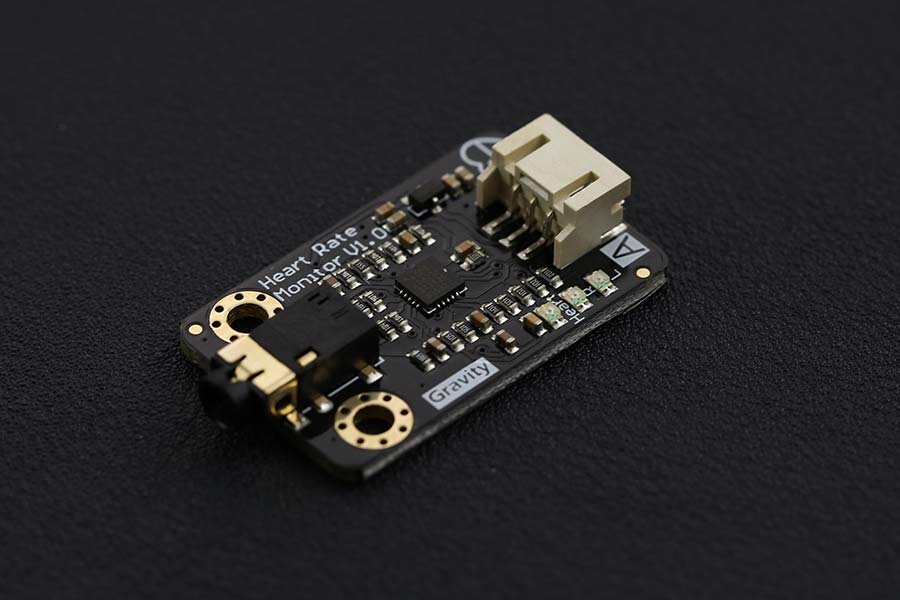

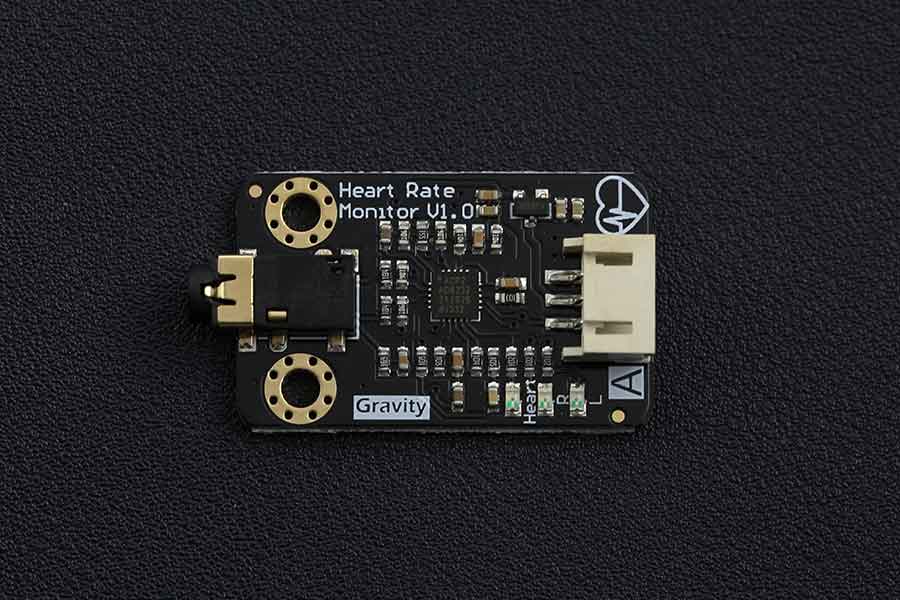

The DFRobot Gravity Heart Rate Monitor Sensor measures the electrical activity of the heart, allowing you to record and visualize ECG (electrocardiogram) signals. Built with the AD8232 chip, it delivers a clean, amplified signal from PR and QT intervals, reducing noise for more accurate readings.

Using the Arduino IDE's Serial Plotter, you can view real-time ECG waveforms directly on your PC — perfect for biomedical projects, health monitoring systems, or educational demonstrations.

Important: Use the official DFRobot links below for wiring, sample code, downloads, and the latest setup notes for this SKU.

Why you'll love it

Input Voltage: 3.3–6V (5V recommended)
Output Voltage: 0–3.3V
Operating Current: <10mA
Dimensions: 35 × 22mm (1.378" × 0.866")
Interface: PH2.0-3P
1x Heart Rate Monitor Sensor

What you can build

This part fits monitoring, measurement, logging, alarms, and automation builds. It works well in Arduino, ESP32, and Raspberry Pi style projects where you need reliable real-world data from the heart rate monitor sensor gravity.

Starter bundles

Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus sensor cables, headers, or a matching expansion shield for faster setup.

Recommended add-ons

Useful add-ons include displays, data logging modules, waterproof enclosures, and matching Gravity cables or sensor shields.

Technical specifications

Product	Heart Rate Monitor Sensor Gravity
SKU	SEN0213
Brand	DFRobot
Input Voltage	3.3–6V (5V recommended)
Output Voltage	0–3.3V
Operating Current	<10mA
Dimensions	35 × 22mm (1.378" × 0.866")
Interface	PH2.0-3P

Pinout & usage notes

Check the supported input voltage before wiring so the module matches your controller and power source. Verify serial levels, baud rate, and pin mapping in the official DFRobot guide before first power-up. If you are using Gravity connectors, align the plug correctly and avoid forcing the cable into the wrong header.

DFRobot resources

Official product page: View on DFRobot
Wiki / documentation: Open DFRobot wiki

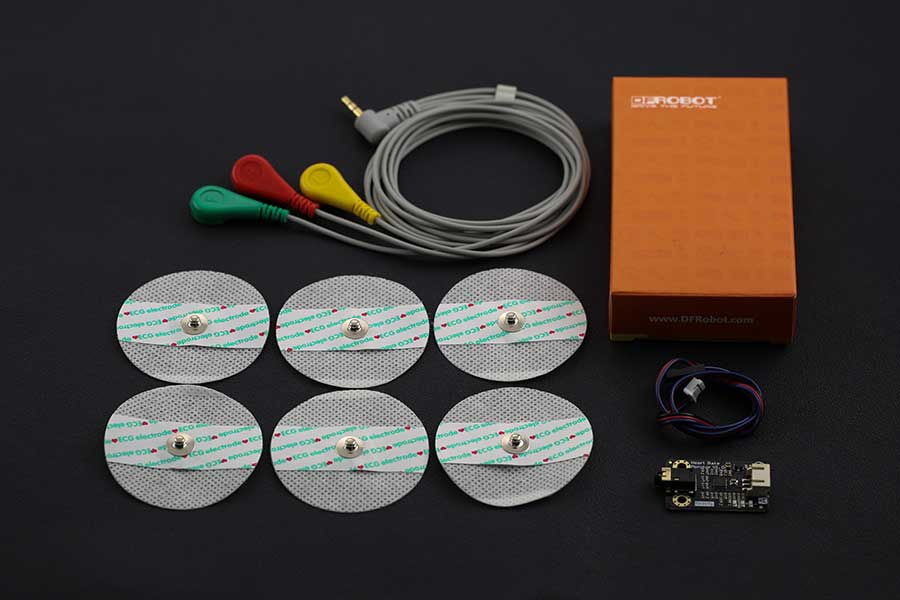

What’s in the box

1 × Heart Rate Monitor Sensor Gravity

Frequently Asked Questions

Can I use this for logging or monitoring projects? Yes. It is a good fit for data collection, automation, and alert-based builds when paired with a supported controller.

Does it work with other boards too? Often yes, as long as voltage, interface, and pin mapping match. ESP32 and Raspberry Pi users should still check the official docs first.

Where can I find wiring and examples? Use the official DFRobot product page and wiki links below for guides, downloads, and code examples.
