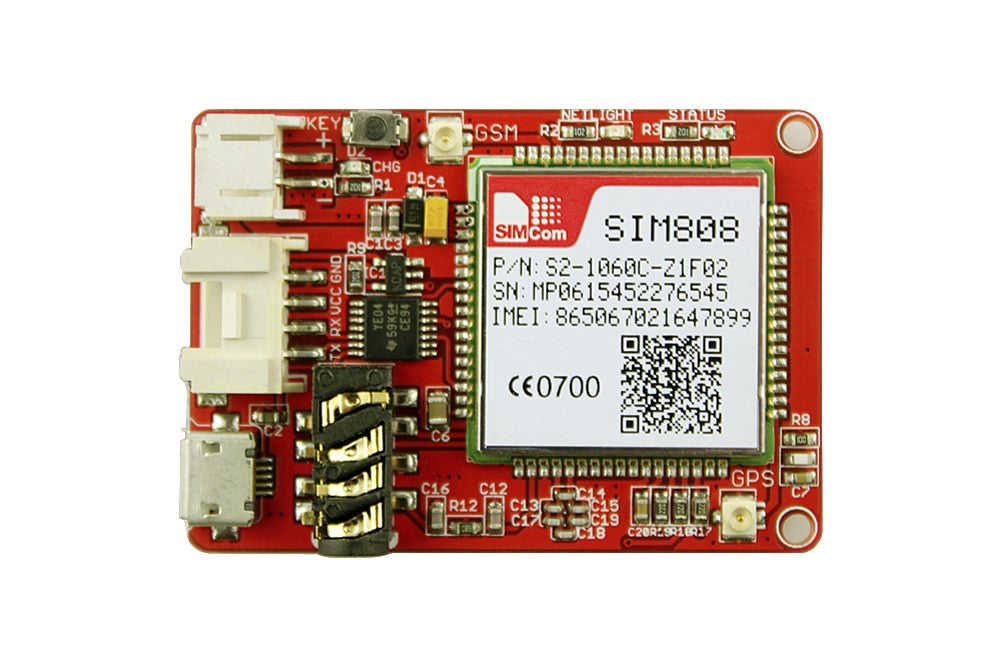

GSM GPS GPRS SMS SIM808 Crowtail, it’s a GSM and GPS two-in-one function module which is called Crowtail- SIM808. We add a Crowtail interface to it so that you can use easily. It is very small and based on the latest GSM/GPS module SIM808 from SIMCOM, supports GSM/GPRS Quad-Band network and combines GPS technology for satellite navigation. It has high GPS receive sensitivity with 22 tracking and 66 acquisition receiver channels that will lets you add location-tracking, voice, text, SMS and data to your project in an adorable little package. We can power it with a 3.7V lithium battery, so it can use as a portable module, even you can attach it on your bicycle, it can obtain the speed/location information. In addition, it has a onboard LiPoly battery charging circuitry so that you can take your project on the go. A nice module that can achieve lots of functions. You need it now!

Note: On its own, this module can't do anything. It requires a microcontroller to drive it! We suggest and use an Arduino but any 3-5V microcontroller with a UART can send and receive commands over the RX/TX pins.the microUSB connector is for charging only.

Features

• Quad-band 850/900/1800/1900MHz

• GPRS mobile station class B

• Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

• Integrated GPS/CNSS and supports A-GPS

• Low power consumption, 1mA in sleep mode

• Supports GPS NMEA protocol

• Standard Micro SIM Card

• GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)

• Indicator LEDs for power and network connectivity

• uFL connection for external passive GPS & external GSM antenna

• Any standard 2G SIM slides into a secure connector

• Standard 4-pole TRRS headphone jack. Use any 'Android' or 'iPhone'-compatible headset with mic


Specification

• Sizes: length x Width：50mm x 35mm

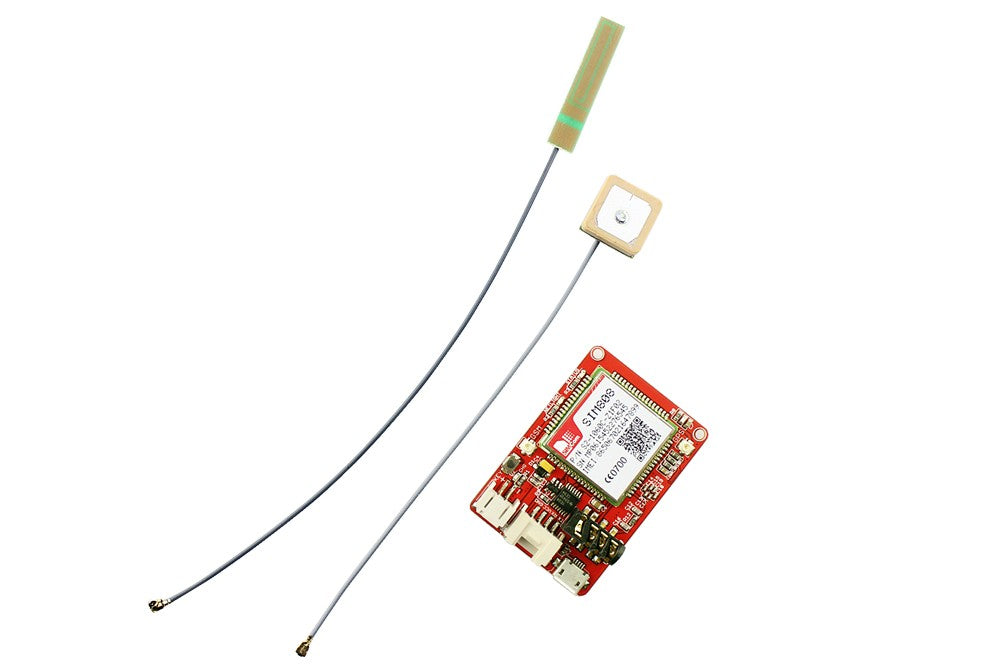

Package list

• Crowtail- SIM808 x 1

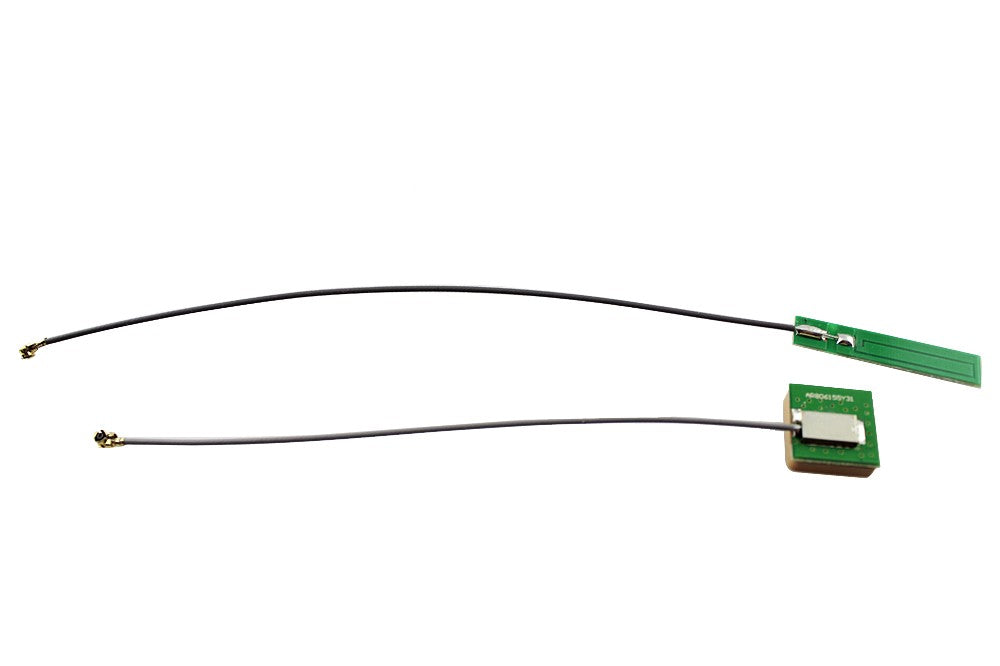

• GSM Antenna x 1

• GPS Antenna x 1

• Crowtail cables x 1

• Eagle files

• AT Command Manual_V1.09

• GSM Location_Application Note

• SIM808 Specifications

• SIM808_Hardware Design

• SIM808 v2 GPS AT commands

• Wiki link
