Compact Multi-GNSS Positioning with Built-In Chip Antenna

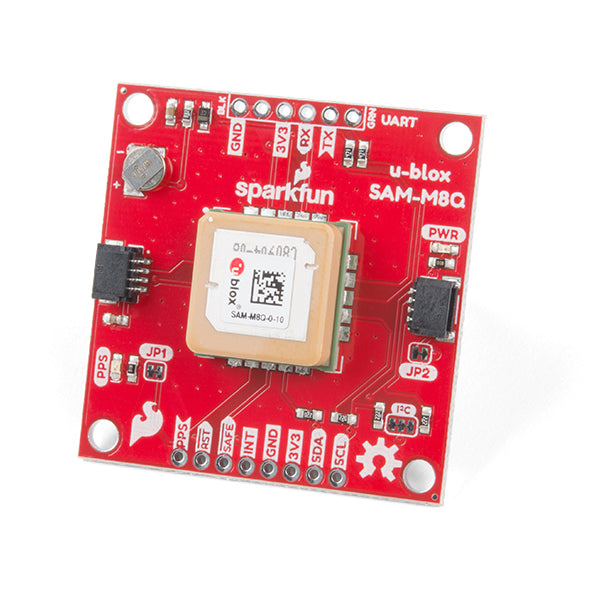

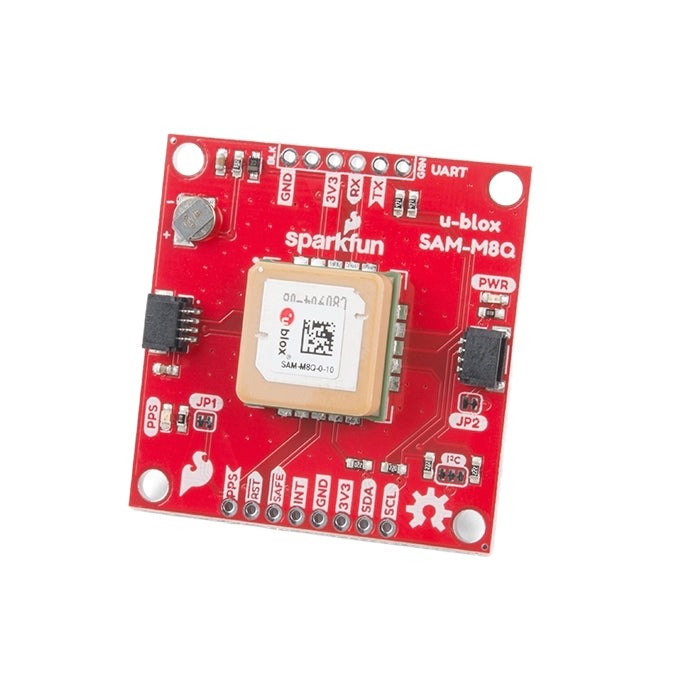

The GPS Breakout Chip Antenna SAM-M8Q SparkFun is a Qwiic-ready GNSS board built around the u-blox SAM-M8Q for compact positioning, timing, and navigation projects.
It combines a built-in smart antenna design with multi-constellation support, backup power for faster hot starts, and both Qwiic and breadboard-friendly connections.
Important: This board uses 3.3V logic and is built for GNSS projects that need a compact all-in-one receiver without an external antenna cable.
Why you'll love it
- 72-channel GNSS engine: Tracks multiple constellations for better coverage
- Built-in smart antenna design: Helps avoid bulky external RF wiring
- Qwiic connectors: Fast I2C hookup with no soldering
- Backup battery support: Speeds hot starts and preserves orbit data
- Breadboard breakout pins: Flexible for both quick prototypes and custom wiring
What you can build
Use it in trackers, loggers, location-aware devices, timing builds, mapping tools, and compact navigation projects.
Starter bundles
Pair it with a Qwiic microcontroller, Qwiic cable, data logger, and enclosure if you want a neat GNSS build with fast setup.
Recommended add-ons
Helpful add-ons include Qwiic cables, microcontrollers, data loggers, and libraries or host software for configuration.
Technical specifications
| Product | SparkFun GNSS Breakout - Chip Antenna, SAM-M8Q (Qwiic) |
|---|---|
| SKU | GPS-15210 |
| Receiver | u-blox SAM-M8Q |
| Channels | 72 |
| Supported GNSS | GPS, GLONASS, Galileo, QZSS |
| Qwiic Connectors | 2 × JST-SH |
| Board Size | 40.64mm × 40.64mm |
| Voltage Range | 2.7V to 3.6V (module) |
| Current Draw | 29mA continuous; 9.5mA power save |
| Horizontal Accuracy | 2.5m to 8.0m |
Pinout & usage notes
Use the Qwiic connectors for I2C or the broken-out 0.1-inch pins for power, I2C, PPS, interrupt, reset, and UART access through the FTDI-style header.
Resources & support
Official SparkFun product page | SparkFun hookup guide
What’s in the box
1 × SparkFun GNSS Breakout - Chip Antenna, SAM-M8Q (Qwiic)
Frequently Asked Questions
Does it need an external antenna?
No. This version uses a built-in smart antenna design.
How does it connect?
It supports Qwiic I2C and also breaks out standard pins.
Does it support hot starts?
Yes. The onboard backup battery helps reduce time-to-first-fix after prior use.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
