Connect Atlas EZO Circuits to USB with Safe Electrical Isolation

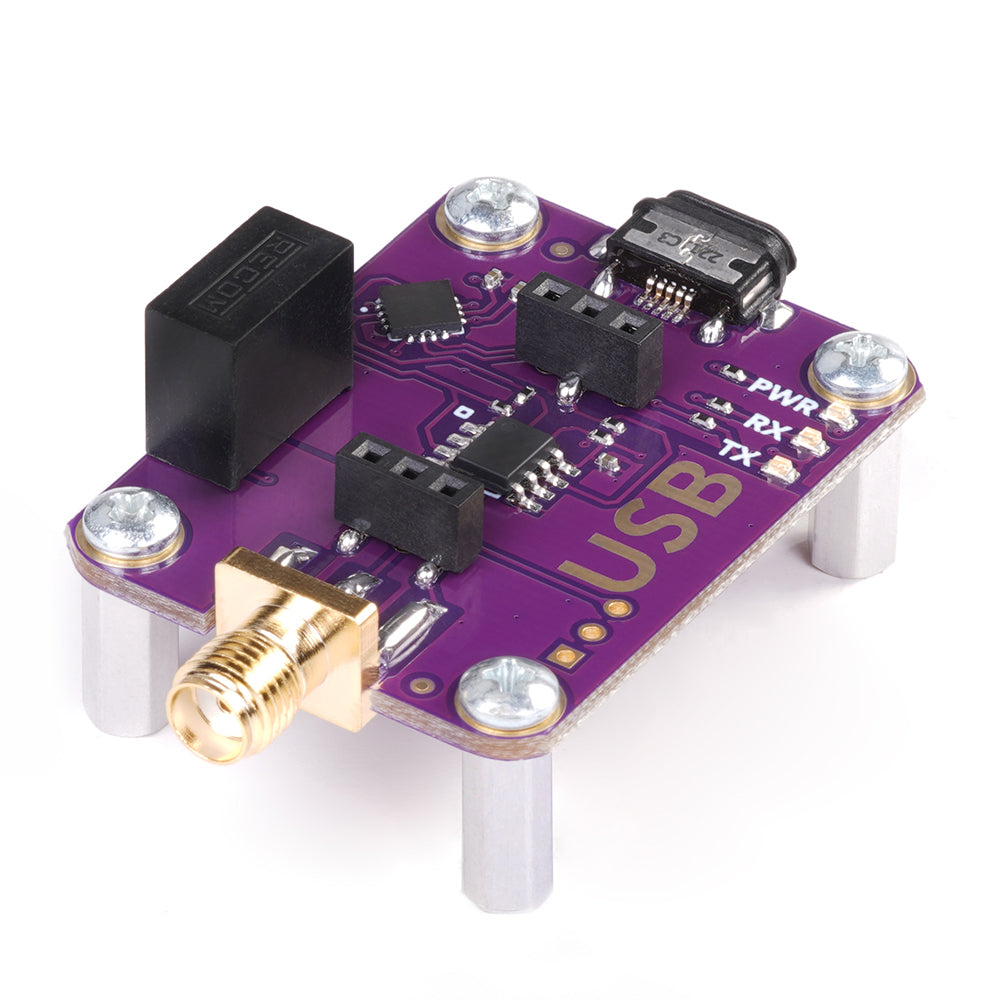

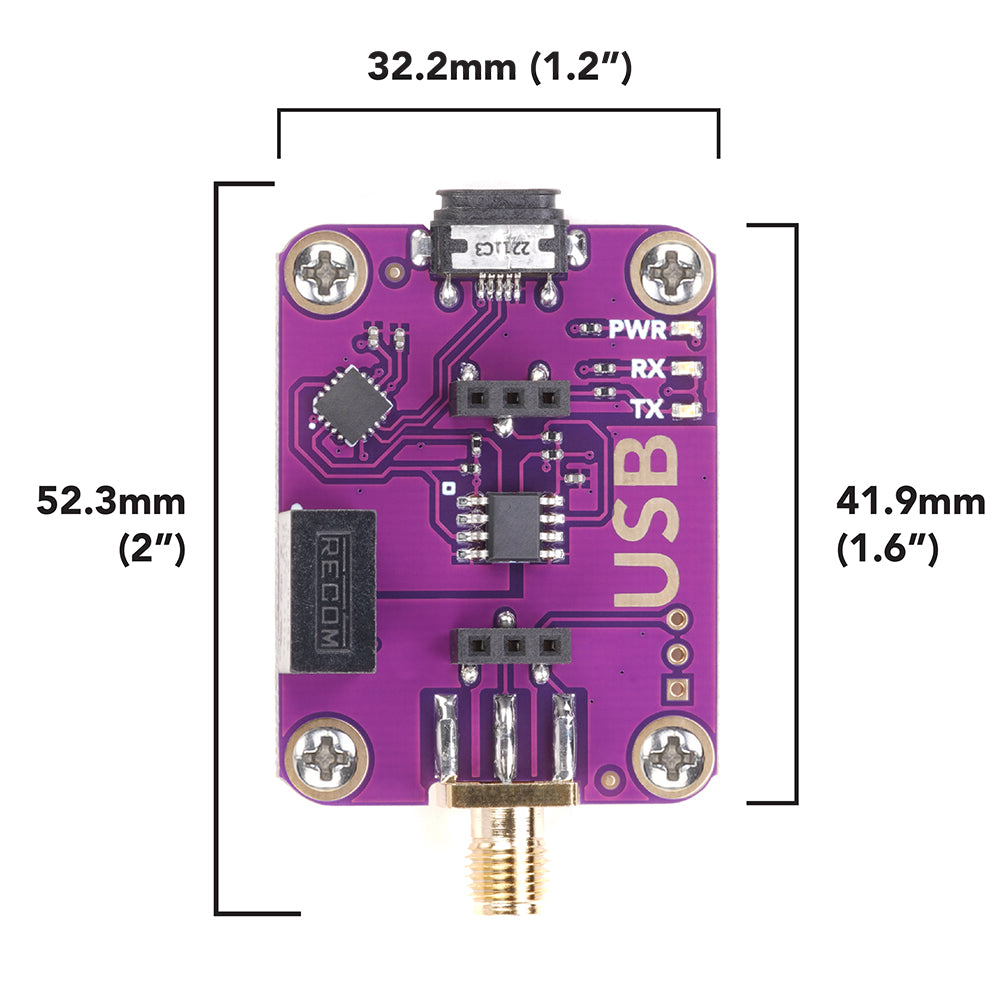

The Atlas Scientific Gen 2 Electrically Isolated USB EZO Carrier Board lets you connect Atlas Scientific EZO circuits straight to a computer or Raspberry Pi through USB. It combines serial-to-USB conversion with built-in electrical isolation to help protect your circuit and improve signal stability.
This board is a practical tool for setup, testing, calibration, and development when you want a clean USB path without adding extra isolation hardware.
Important: This carrier board does not include an EZO circuit. It is an interface board that works with Atlas EZO devices you already have or plan to add.
Why you'll love it
- Works with all EZO circuits: A flexible carrier for many Atlas sensor circuits
- Isolated power and data: Helps reduce noise, ground loops, and unwanted voltage issues
- USB ready: Uses a standard Micro USB B connector for quick connection
- Development friendly: Great for calibration, bench testing, and rapid setup
- Status LEDs: Power, RX, and TX lights make connection checks easier
What you can build
Use it for quick sensor bring-up, PC-based calibration stations, Raspberry Pi sensor testing, engineering benches, and low-noise development setups.
Starter bundles
Pair it with an Atlas Scientific EZO circuit, a Micro USB cable, and either a Raspberry Pi or computer for setup and testing.
Recommended add-ons
Helpful add-ons include EZO circuits, probe interface cables, isolators, sensor probes, and enclosure hardware for semi-permanent bench setups.
Technical specifications
| Product | Atlas Scientific Gen 2 Electrically Isolated USB EZO Carrier Board |
|---|---|
| Compatibility | Works with all Atlas EZO circuits |
| Isolation | Fully isolated voltage and data |
| Host Connection | USB to serial converter |
| USB Connector | Micro USB B |
| Indicators | Power, RX, and TX LEDs |
| Included Hardware | 4 aluminium standoffs and 8 screws |
| Approx. Weight | 13.2g |
Pinout & usage notes
Install your EZO circuit on the carrier board, then connect over USB for setup and data access. Atlas also notes support for Raspberry Pi workflows.
Because power and data are isolated, this board is especially useful when your measurement setup is sensitive to electrical noise or ground loop problems.

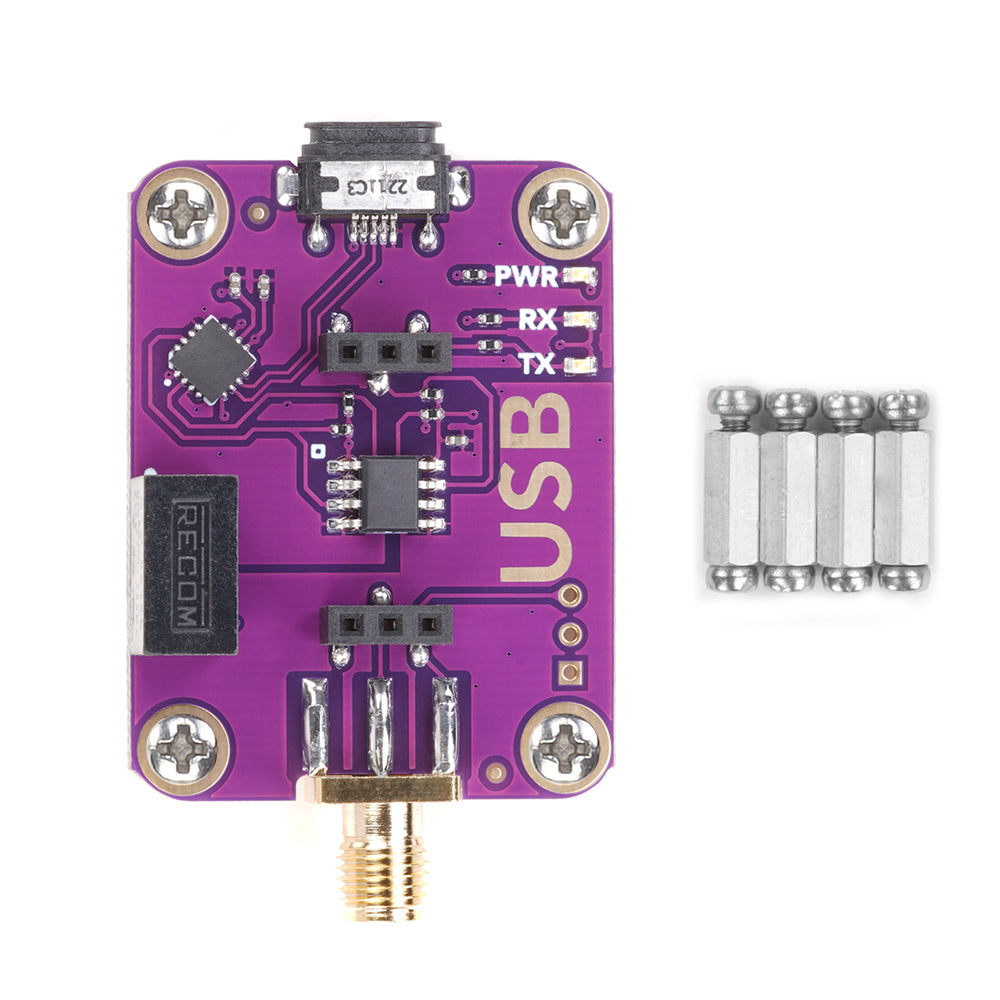

What’s in the box
1 × Gen 2 Electrically Isolated USB EZO™ Carrier Board
4 × Aluminium standoffs
8 × Screws
Note: EZO™ circuit sold separately
Frequently Asked Questions
Does this include an EZO circuit?
No. The board is sold without an EZO circuit.
What is the main benefit of this board?
Its main advantage is isolated power and data over USB for cleaner, safer sensor work.
Can I use it with Raspberry Pi?
Yes. Atlas lists Raspberry Pi support for this board.
What kind of USB connector does it use?
It uses a Micro USB B connector.
