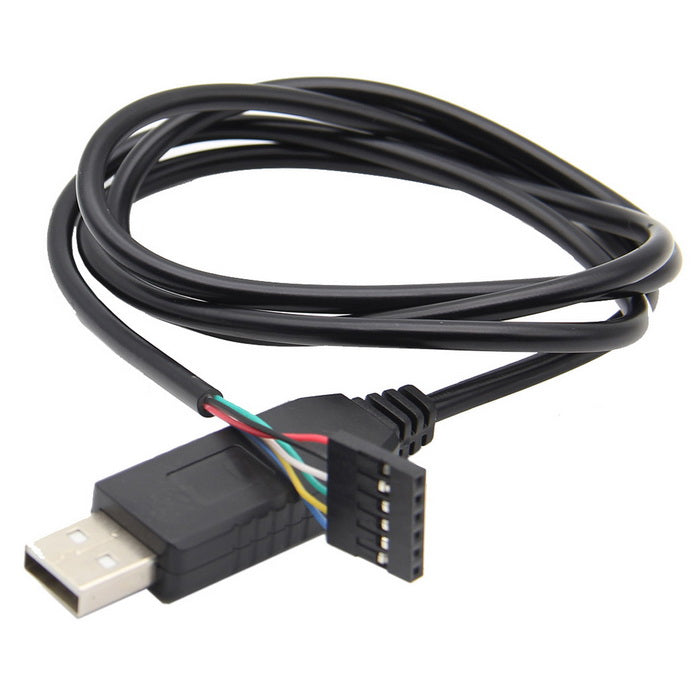

FTDI Serial TTL-232 USB Cable

Microcontrollers and other devices are connected to computers using this highly efficient USB cable. These microcontrollers include Raspberry Pi, Arduino, and other computer-connected gadgets. Transferring data between locations is its primary function. Data is transferred to devices that have transistor logic data transfer capabilities.

What do we mean by FTDI?

It is a business that specializes in producing chips for data transfer or communication between various devices.

What are the FTDI Serial TTL-232 USB Cable's primary features?

• The USB signal is converted to TTL serial signals using it. This data transfer is guaranteed by a chip within the cable.
• Both 3.3V and 5V logic are supported.
• There are already Pins included.
• It functions well across all operating systems. The fact that it already supports FTDI drivers makes it effective.
• It also has an LED that lights up when the data is transferred, providing real-time monitoring.

What is the FTDI Serial TTL-232 USB Cable used for?

If the drivers aren't already installed on the computer, you can install them after simply plugging the cord in.

Just about all electronics use TTL serial for debugging, bootloading, programming, serial output, etc. But it's rare for a computer to have a serial port anymore. This is a USB to TTL serial cable, with a FTDI FT232RL usb/serial chip embedded in the head. It has a 6-pin socket at the end with 5V power and ground, as well as RX, TX, RTS and CTS at 3V logic levels. These are perfect for use with a Boarduino, Meggy's, or other Arduino clones and derivatives, and Fuzeboxen. Useful whenever you want to communicate with a TTL serial device, such as an XBEE.
