Add Health and Biometric Sensing to Your Next Build

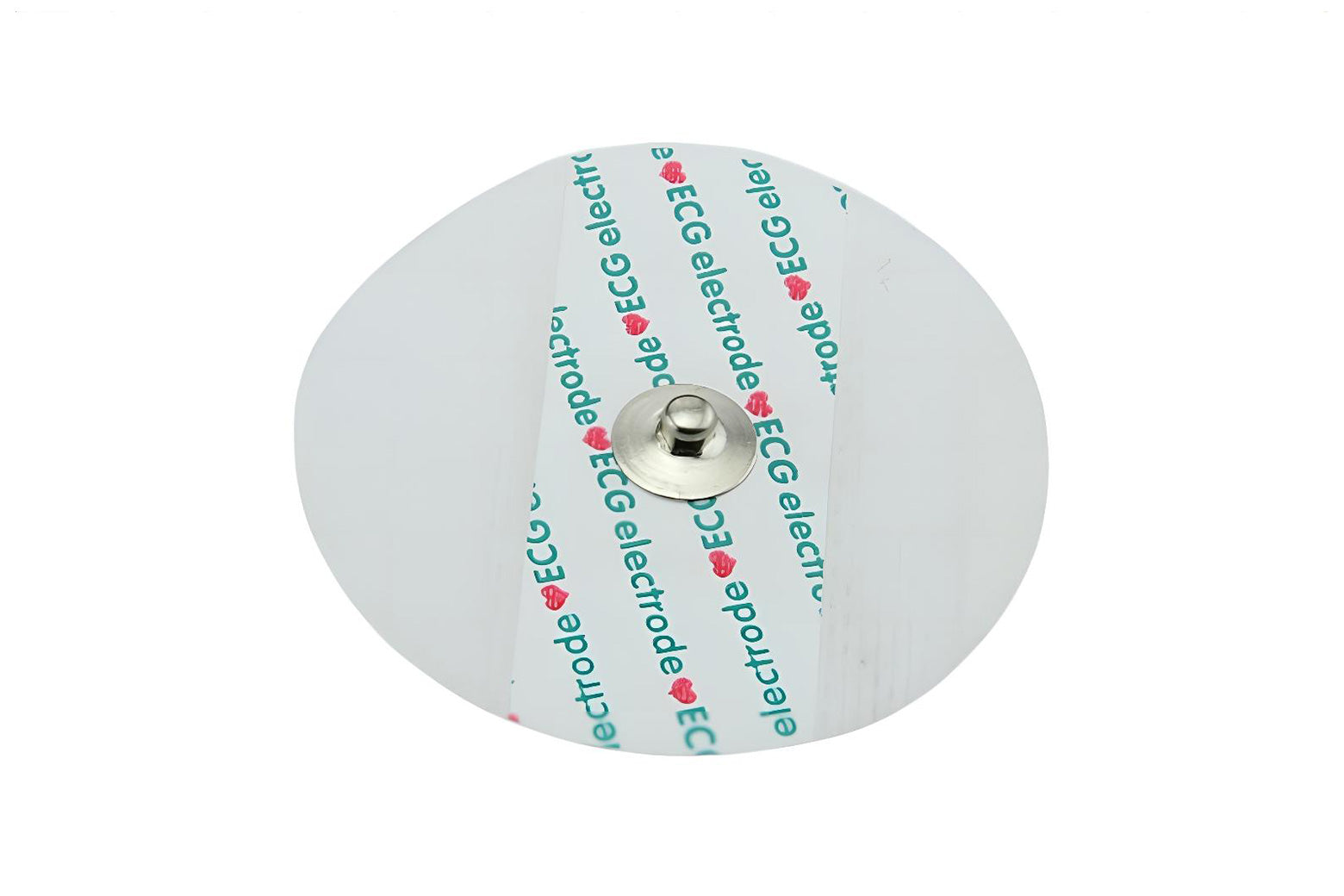

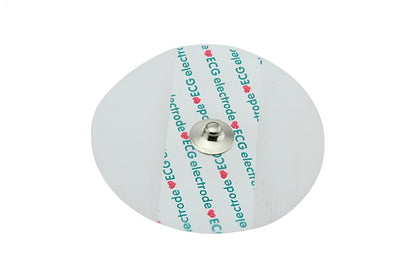

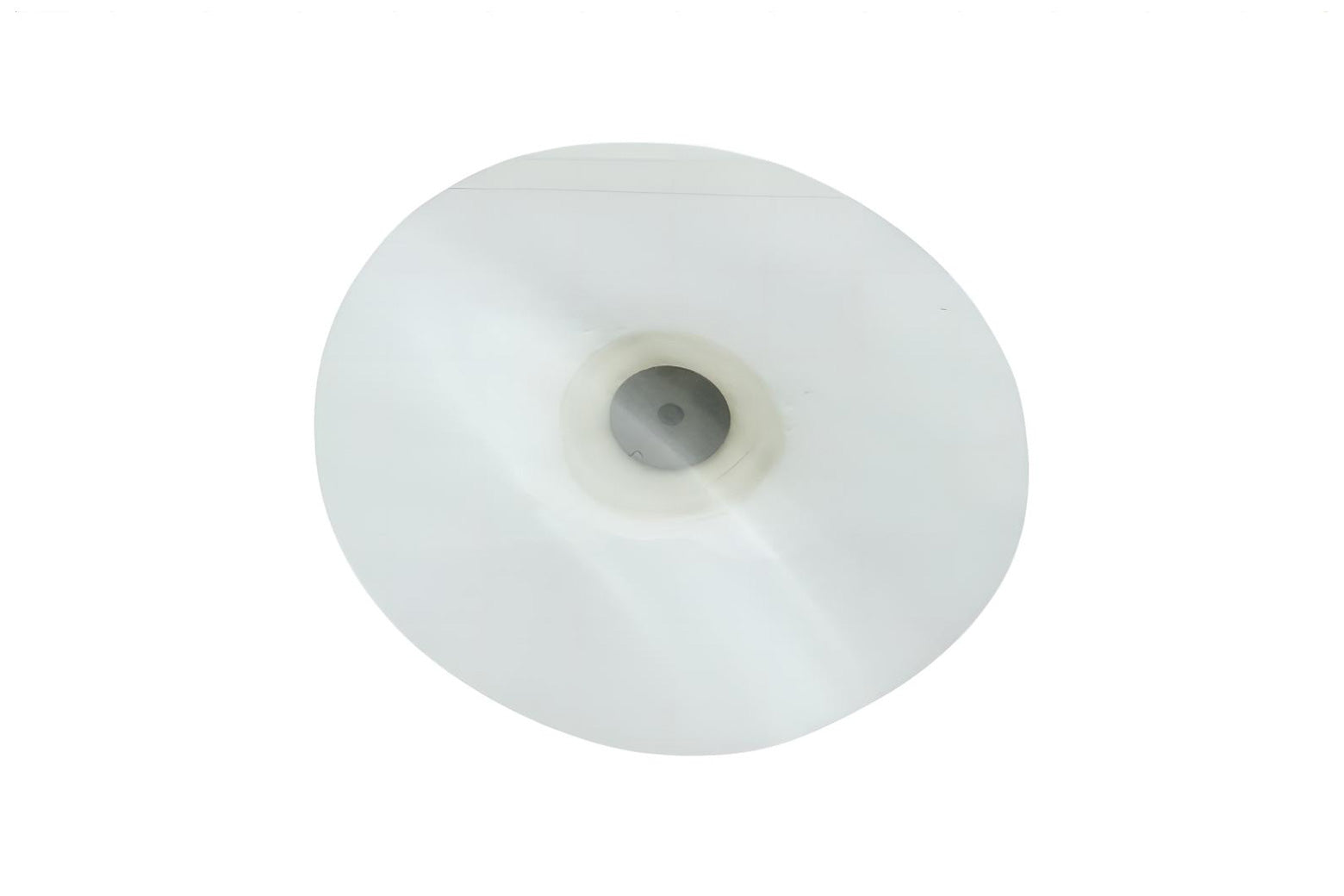

The ECG Disposable Electrodes Pack 12 pcs is a biometric sensor with analog output designed for wearables, pulse demos, biometric logging, and health-focused prototypes. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include DC Offset Voltage: ≤ 100mV; Interface: Analog.
Important: This module is meant for learning, prototyping, and general wellness projects. It is not a medical device and should not be used for diagnosis.
Why you’ll love it
- Compatible: Compatible with Gravity Analog ECG sensors
- Power range: ≤ 100mV
- Useful spec: ≤ 150Vp-p
- Easy wiring: Analog
- Maker-friendly build: Easy to use in prototypes, classroom projects, and custom electronics
- Common controller support: Works well with Arduino, ESP32, Raspberry Pi, and similar boards
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| ECG Disposable Electrodes Pack 12 pcs | biometric sensor with analog output | Current item |
| Heart Rate Monitor Sensor Gravity | biometric sensor with UART | general-purpose sensing |
| ECG Heart Pulse Sensor Module AD8232 | biometric sensor | model AD8232 |
| Heart Rate Monitor Sensor For Arduino Gravity | biometric sensor with analog and digital output | general-purpose sensing |
What you can build
This sensor is a good fit for heart-rate demos, wearable prototypes, pulse logging, finger-clip projects, and education kits.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard and jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include an Arduino or ADC-capable board, jumper wires, and a stable power source, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | ECG Disposable Electrodes Pack 12 pcs |
|---|---|
| DC Offset Voltage | ≤ 100mV |
| Internal Noise | ≤ 150Vp-p |
| Average AC Impedance | ≤ 2KΩ |
| Separate AC Impedance | ≤ 3KΩ |
| Interface | Analog |
| Category | health sensor |
Wiring & usage notes
Connect power and ground, then read the sensor output with an analog-capable input or external ADC. Stable power and a clean ground help reduce noise. This module is meant for learning, prototyping, and general wellness projects. It is not a medical device and should not be used for diagnosis.
What’s in the box

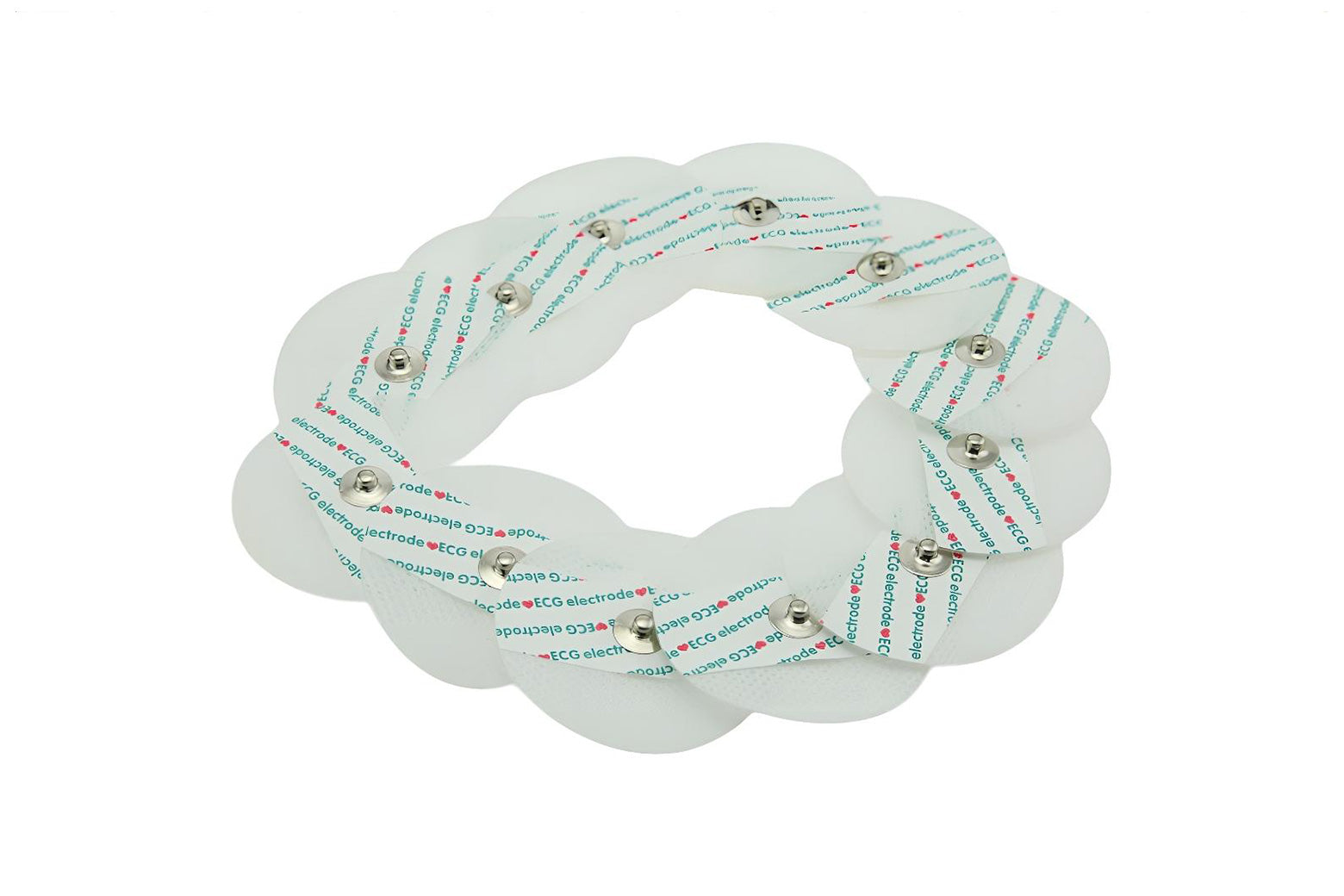

1 × ECG Disposable Electrodes Pack 12 pcs
Frequently Asked Questions
What does the ECG Disposable Electrodes Pack 12 pcs measure?
It is designed to measure pulse, heart-rate, or ECG-related signals.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this Analog sensor?
This sensor gives an analog-style signal, so you read it with an ADC or an analog-capable input.
Does it need calibration?
Yes. Chemical and gas sensors usually need warm-up time, calibration, and periodic checking if you want stable readings.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
