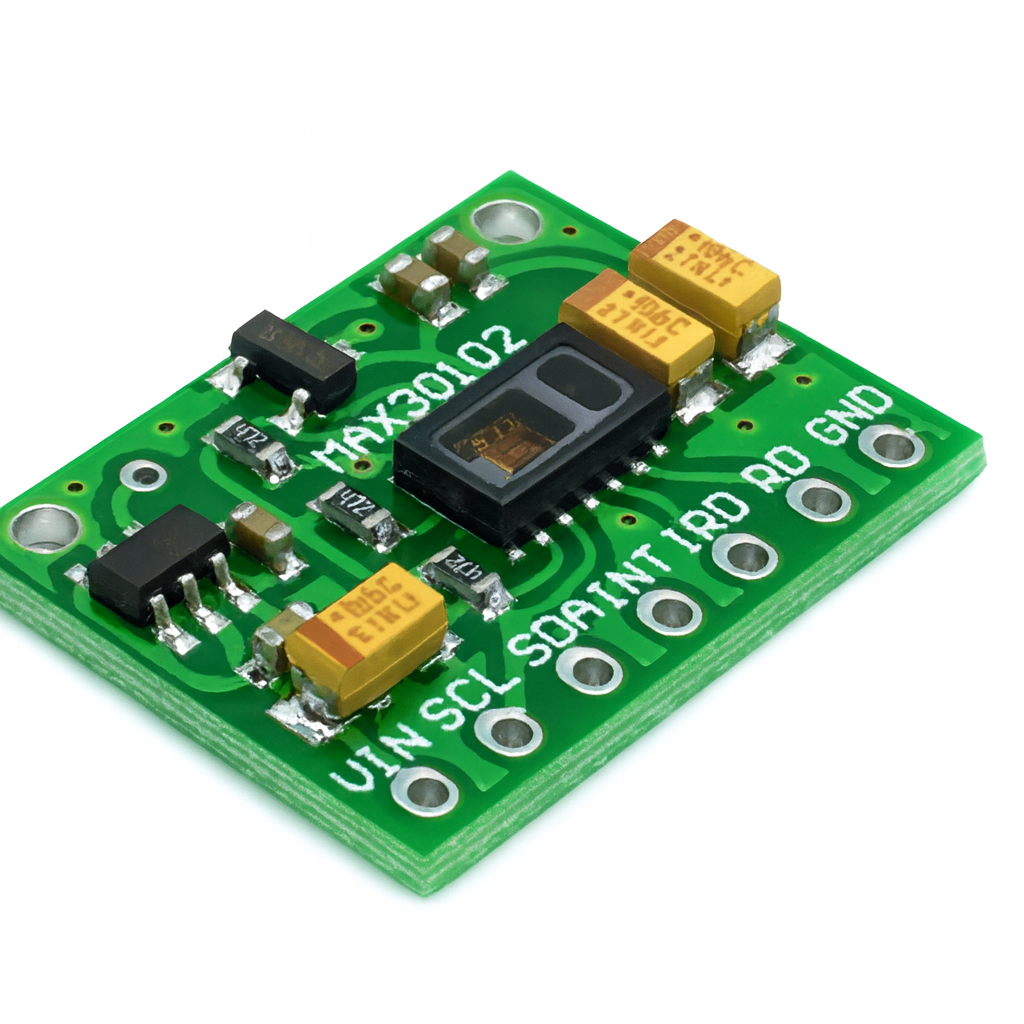

Pulse Oximeter Heart-Rate Sensor Breakout MAX30102


The MAX30102 is an integrated pulse oximetry and heart-rate monitor biosensor module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The MAX30102 provides a complete system solution to ease the design-in process for mobile and wearable devices.

The MAX30102 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs. Communication is through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Specifications:

  • Size: Tiny 5.6mm x 3.3mm x 1.55mm 14-Pin Optical Module
  • Operating Voltage: 1.8V to 5.5V
  • Working Current: 5mA
  • Communication Interface: I2C
  • Temperature Range: -40°C to +85°C
  • Heart Rate Range: 30 BPM to 200 BPM
  • SpO2 Range: 70% to 100%
  • FIFO Buffer:  32-sample FIFO buffer
  • Integrated Cover Glass for Optimal, Robust Performance
  • Programmable Sample Rate and LED Current for Power Savings
  • Low-Power Heart-Rate Monitor (< 1mW)
  • Ultra-Low Shutdown Current (0.7µA, typ)
  • Power Consumption: Low
