The E1115 PS/2 Keyboard to ASCII Converter is a single chip solution dedicated to producing a single TTL ASCII character on the "press" of a keystroke. It is designed to offload the process intensive complex keyboard decoding of PS/2, allowing the host microcontroller to better allocate its resources. The output is a selectable TTL serial or a clocked serial data with interrupt signal.

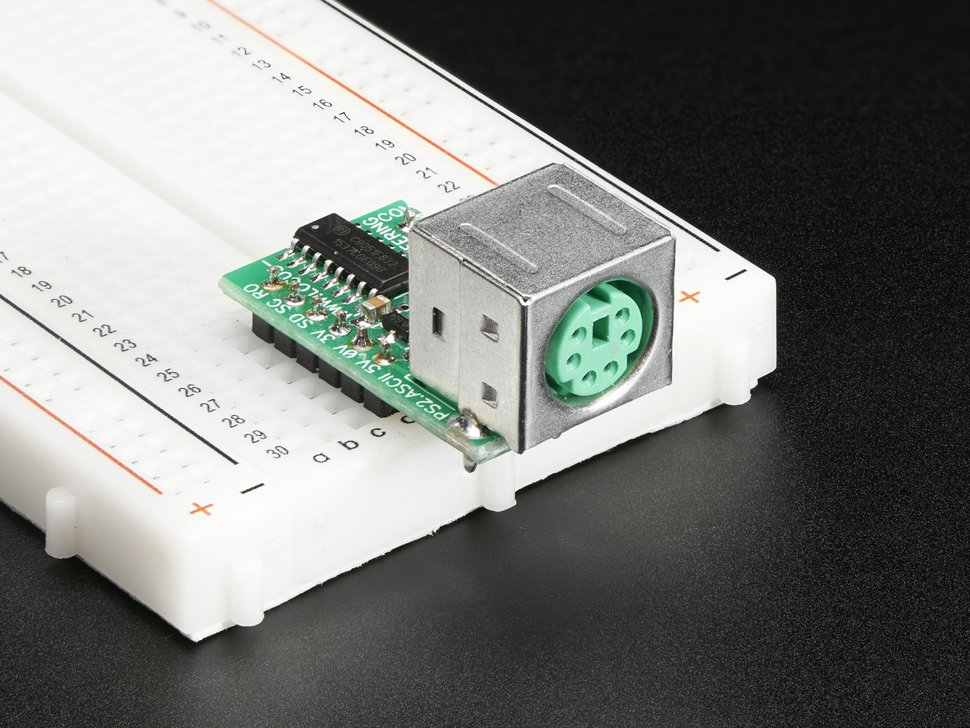

Plug in a PS/2 Keyboard in one end, and you can type away, with 57.6K or 115.2Kbaud (pin-selectable) TTL spit out of the TX pin. This can make adding a UI much easier for many projects where you can't sit around and wait for the interrupts from the keyboard port. New! As of 4/10/13 the module also supports our Magstripe and Barcode PS/2 readers. Please note that we've tested it and it does not work with our PS/2 Touchpad.

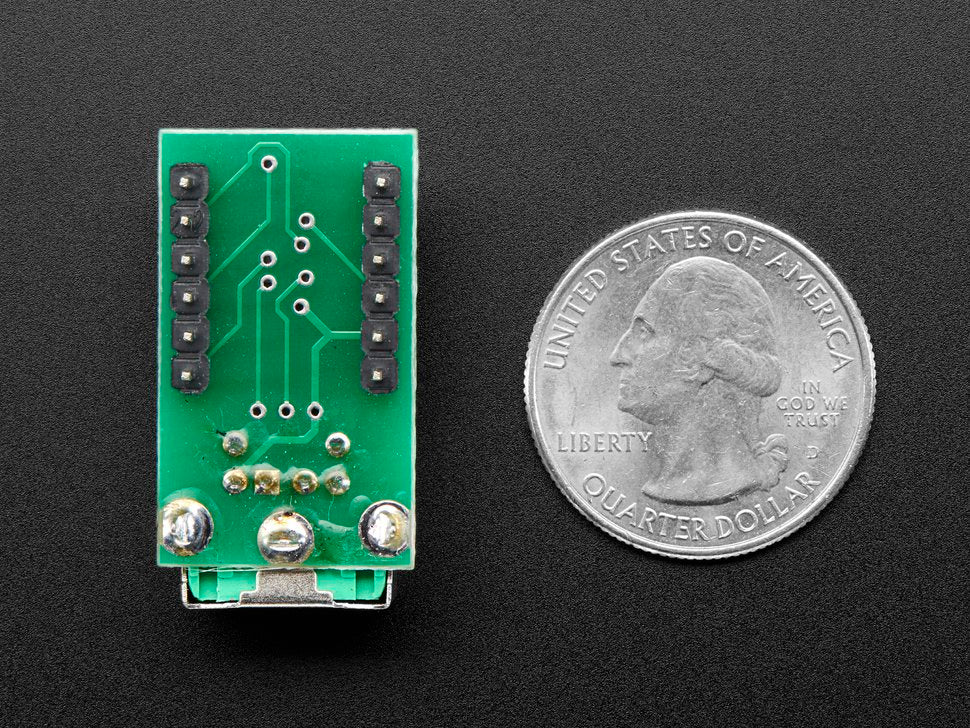

Comes as a ready-to-go pre-soldered and tested module.
TECHNICAL DETAILS
- Datasheet on parsing keyboard data
- Module Datasheet
- Weight: 7.08g
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
