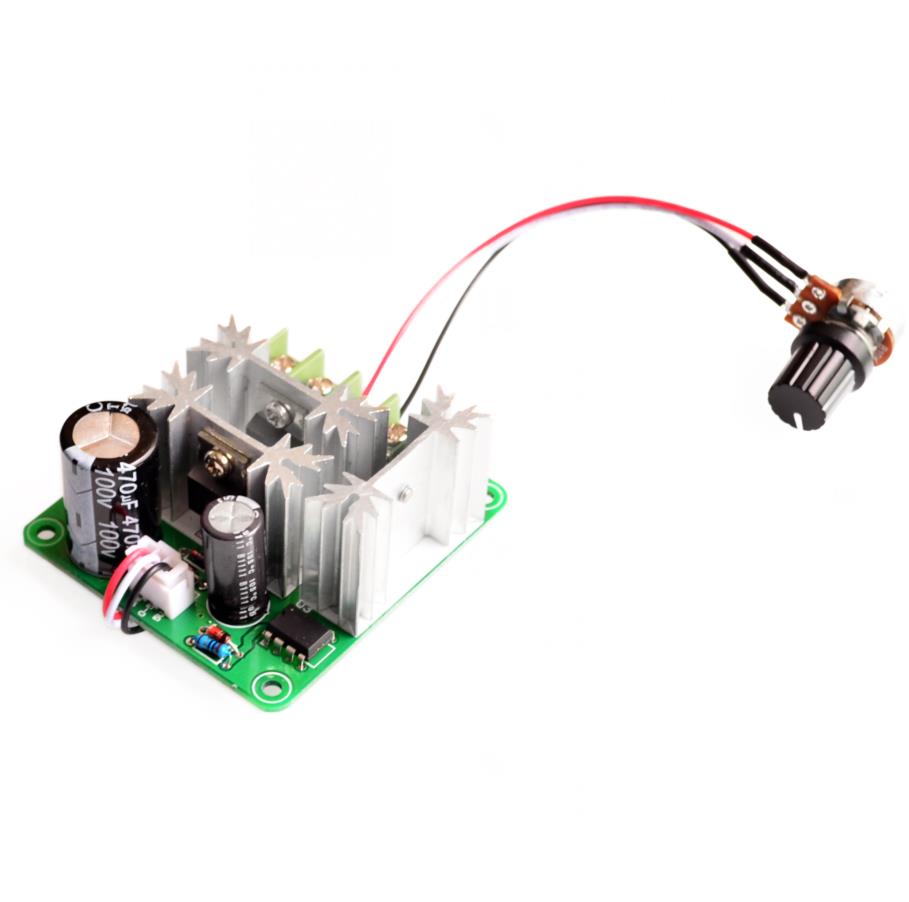

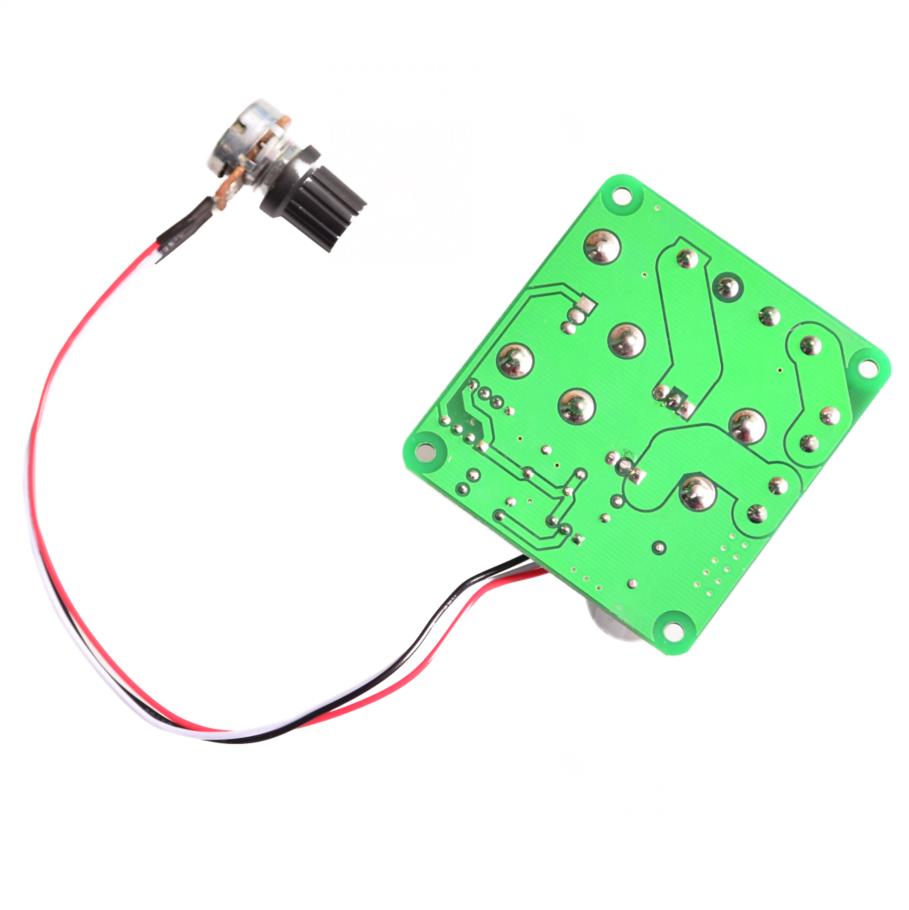

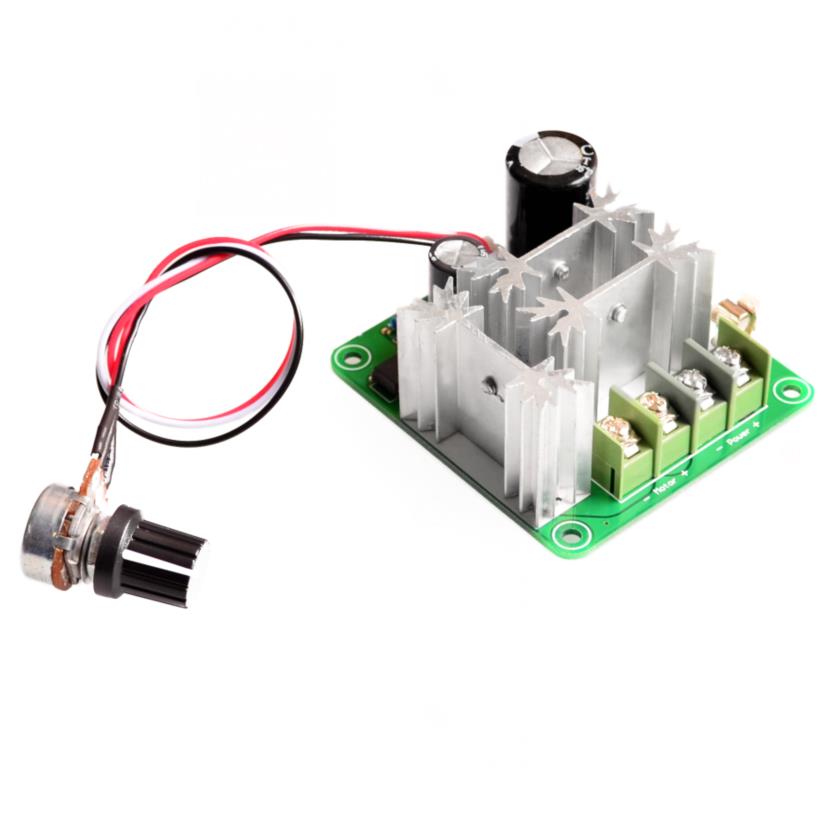

DC Motor Speed Controller DC 6V-90V 15A


This powerful module could control the DC motor rated for 6V to 90V. It has a control power of 0.01W to 1000W with a max current of 15A. The quiescent current is 0.05A. The duty cycle could be controlled from 0% to 100%, with a frequency of 15kHz.

It includes a variable resistor or potentiometer to control the PWM duty cycle of the controller.

It has an onboard overvoltage and over current protection, as well as reverse polarity protection, which makes this module newbie-friendly. The input voltage is from 0V to 5V if you are using a microcontroller like an Arduino.

This module is easy to be integrated with your project as it only needs 2 wires for the power supply, and 2 more wires for the component would be controlling.

It could control motors, and other DC powered components like a light bulb or a heater.

FEATURES:

  • Operating voltage: DC6V-DC90V
  • Control Power: 0.01-1000W (Max Current:15A)
  • Quiescent Current: 0.05A (standby)
  • PWM duty cycle: 0% -100%
  • PWM Frequency: 15khz
  • PCB Board: High-temperature FR-4 PCB Thickness 1.6mm
  • Reverse polarity protection: YES
  • High-current protection: YES ( 20A fast fuses ceramic fuse )
  • Control voltage over-voltage protection: YES
  • Control voltage : 0V - 5V ( voltage control type , you can control the speed of the motor directly with PLC )
  • Stepless speed regulation: The governor can control the motor speed from 0% -100% in step-less speed changing.
  • Module Size (L x W x H): Approx. 64 x 59 x 22mm
