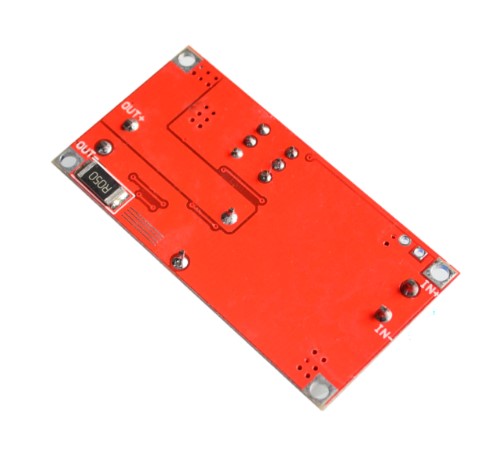

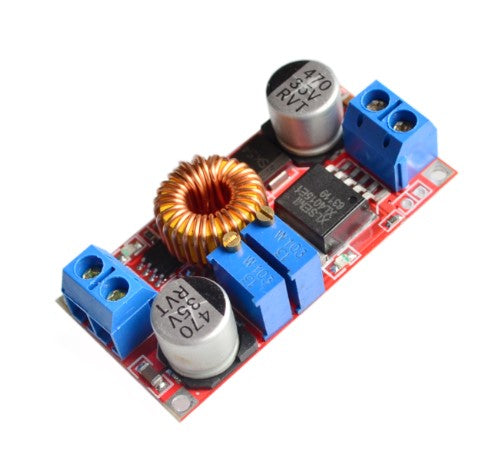

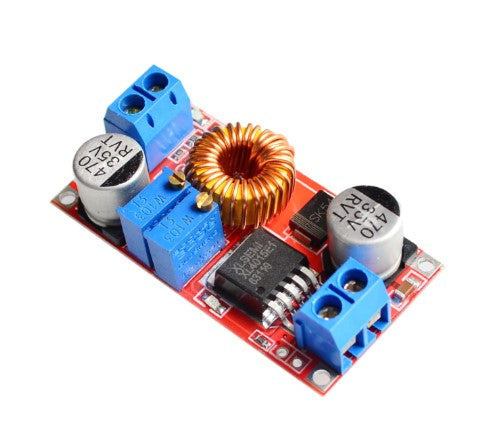

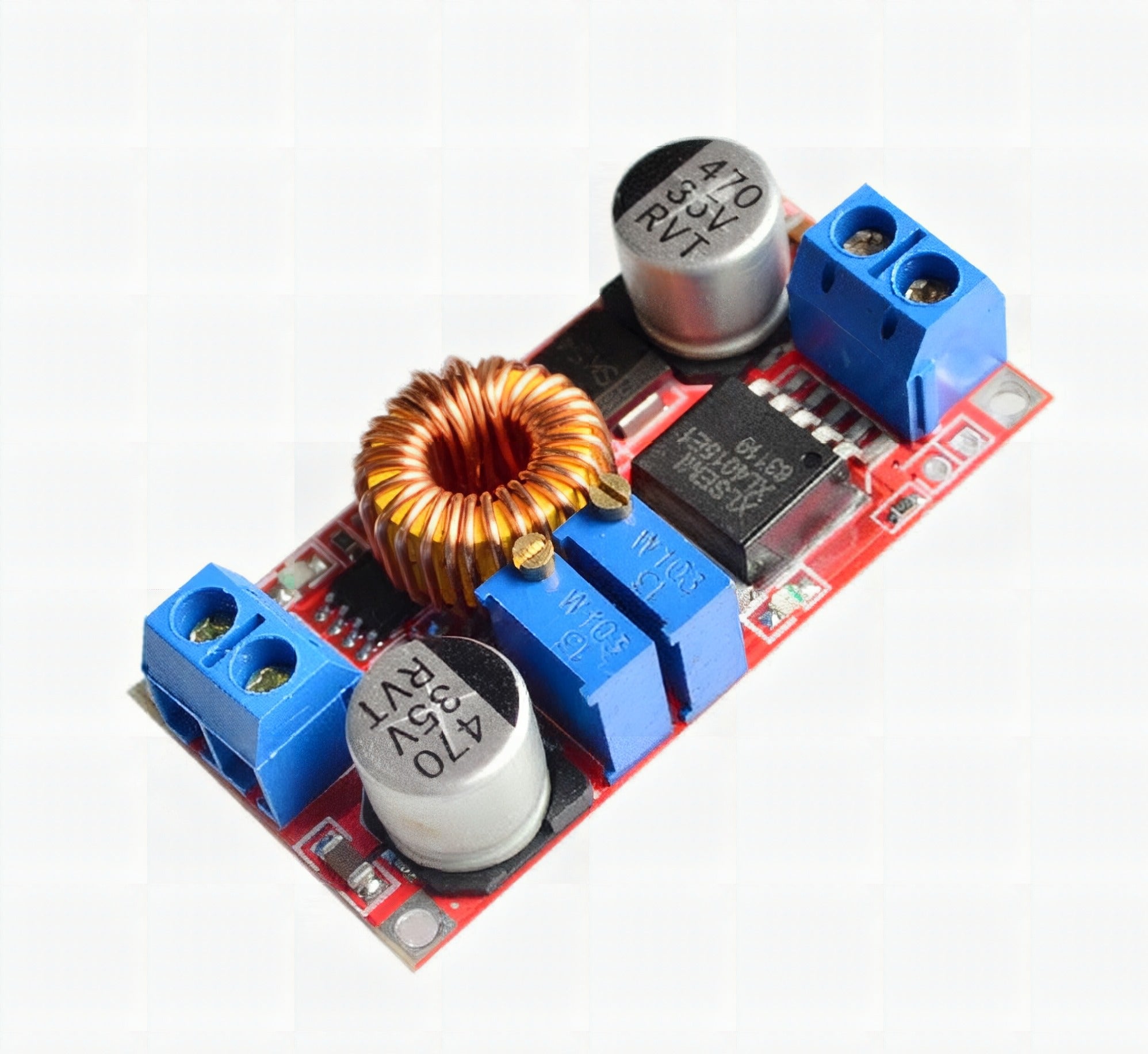

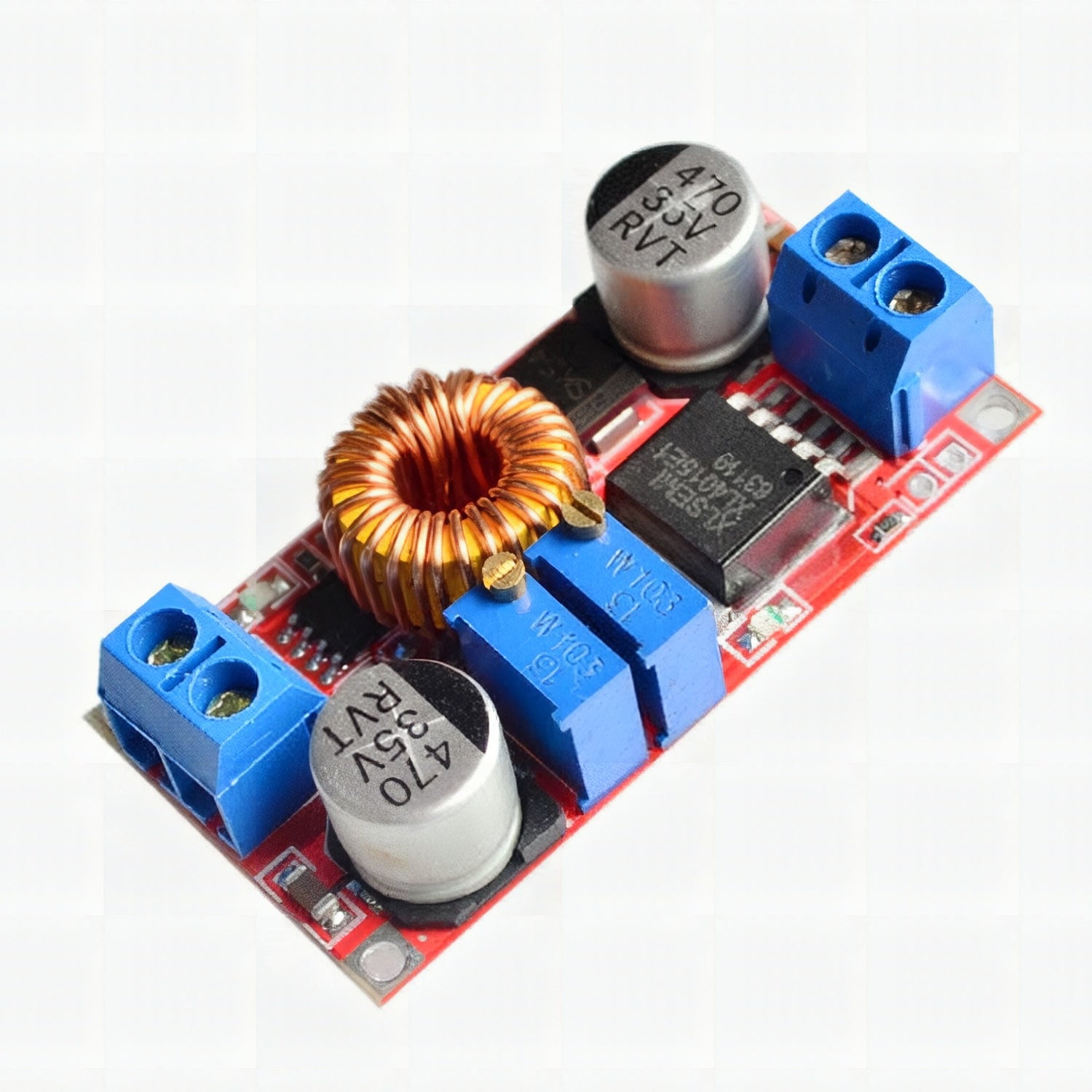

DC DC 5A Constant Current LED Driver Module

Because these boards have both constant current and constant voltage modes, you can use them to directly drive power LEDs, as they will limit the current through the LED.

This board can be used as a:

Constant current LED driver
Adjustable power supply module with ability to cut off  if exceeds preset current limit
Battery charger

SPECIFICATIONS:

Input voltage: 4~38V
Output voltage: 1.25~36V continuously adjustable
Output current: adjustable, 5A
Output power: 75W maximum
Operating temperature: -40 to + 85’C
Operating frequency: 180KHz
Conversion efficiency: up to 96%
Controller IC: XL4005
Short circuit protection: YES (limit current 8A)
Overtemperature protection: (automatically shut off the output when over temperature)
Input reverse polarity protection: No (if you need, please connect large current diode to input)
Installation: four 3mm screws
Connection: wiring terminals or soldering terminals, V-IN is the input, V-OUT it the output
Module size: 15mm long, 51mm wide and 26mm high
Weight: 18g
