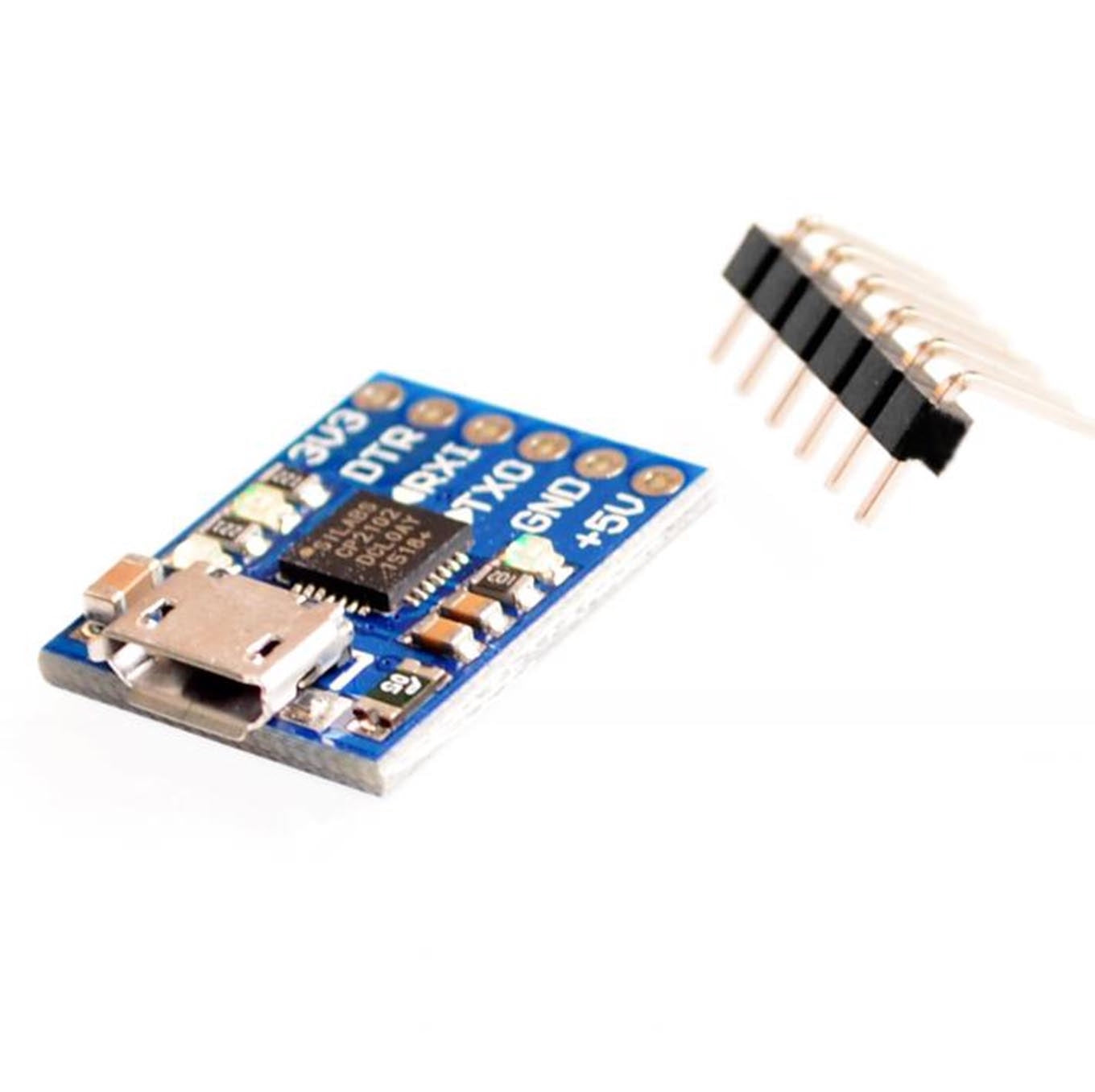

CP2102 Micro USB to UART TTL Module

This module is based on the CP2102 Single-Chip USB-to-UART Bridge. CP2102 is a great alternative for the more commercially popular FT232 chips. The CP2102 includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, EEPROM, and asynchronous serial data bus (UART) with full modem control signals in a compact 5 x 5 mm MLP-28 package. No other external USB components are required. The on-chip EEPROM may be used to customize the USB Vendor ID, Product ID, Product Description String, Power Descriptor, Device Release Number, and Device Serial Number as desired for OEM applications. The EEPROM is programmed on-board via the USB allowing the programming step to be easily integrated into the product manufacturing and testing process.

Specifications:

Single-Chip USB to UART Data Transfer

• Integrated USB transceiver; no external resistors required
• Integrated clock; no external crystal required z
• Integrated 1024-Byte EEPROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
• On-chip power-on reset circuit
• On-chip voltage regulator: 3.3 V output
• 100% pin and software compatible with CP2101

• USB Specification 2.0 compliant; full-speed (12 Mbps)
• USB suspend states supported via SUSPEND pin

• All handshaking and modem interface signals
• Data formats supported: - Data bits: 5, 6, 7, and 8 - Stop bits: 1, 1.5, and 2 - Parity: odd, even, mark, space, no parity
• Baud rates: 300 bps to 1 Mbits
• 576 Byte receive buffer; 640 byte transmit buffer
• Hardware or X-On/X-Off handshaking supported
• Event character support
• Line break transmission

• Works with existing COM Port PC applications
• Royalty-free distribution license z Windows 98 SE/2000/XP
• MAC OS-9 z MAC OS-X z Linux 2.40 and greater


• Upgrade of RS-232 legacy devices to USB
• Cellular phone USB interface cable
• PDA USB interface cable
• USB to RS-232 serial adapter

• Self-powered: 3.0 to 3.6 V
• USB bus powered: 4.0 to 5.25 V
• Package z Lead free 28-pin MLP (5 x 5 mm)
