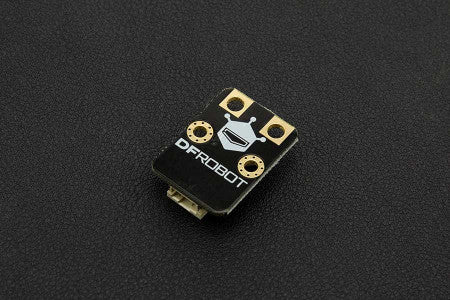

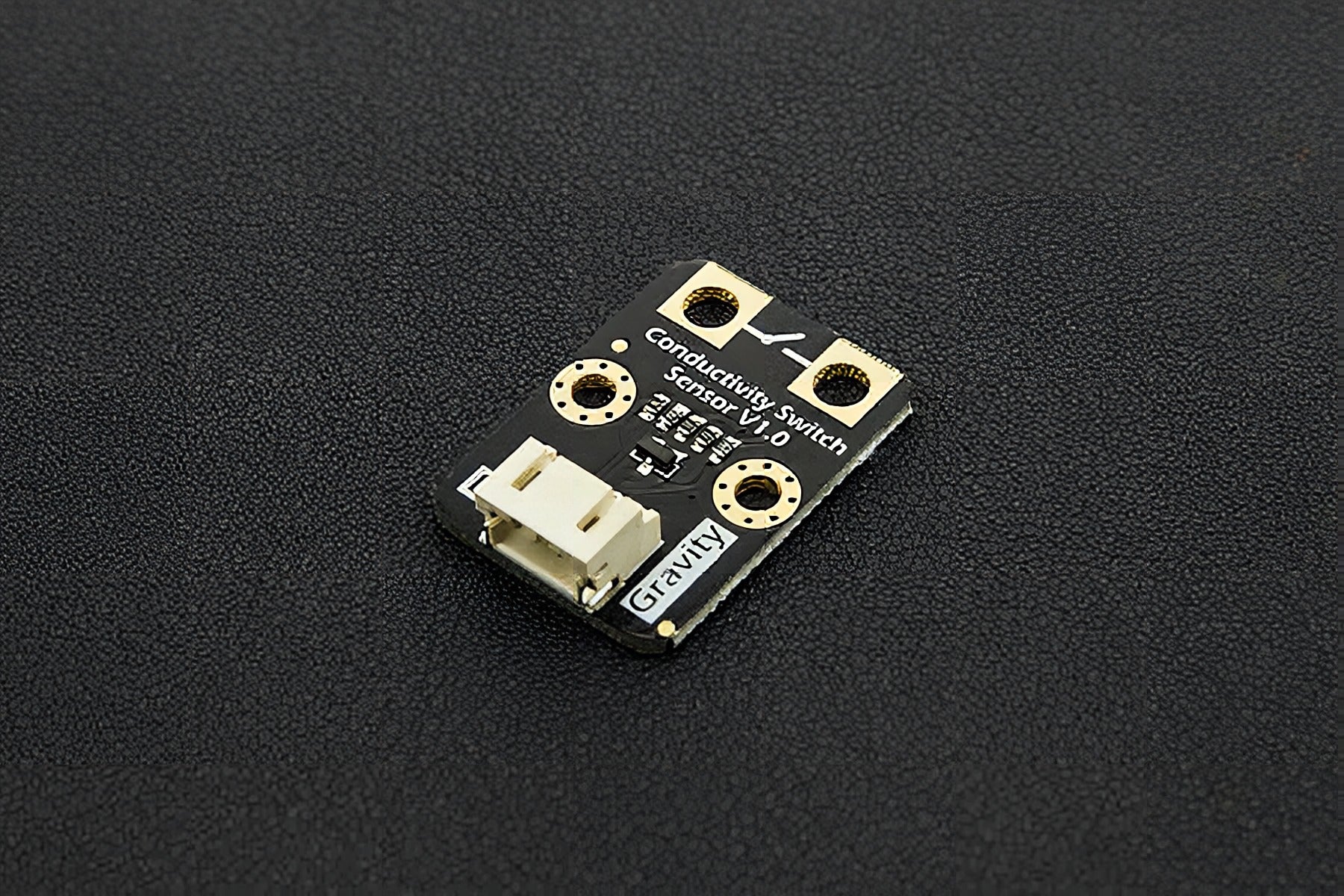

Measure Current, Voltage, or Magnetic Fields with Ease
The Conductivity Sensor Switch Gravity is a button or switch input module with digital output designed for power monitoring, motor feedback, magnetic detection, and control systems. It is a practical fit for makers, students, and engineers who want reliable sensor data in embedded builds.
Key details include Operating Voltage: 3.3 ~ 5V; Output Signal: Digital; Interface Mode: PH2.0-3P.
Why you’ll love it
- Key feature: Gravity Digital Sensor Cable For Arduino x1
- Easy wiring: PH2.0-3P
- Controller output: Digital
- Power range: 3.3 ~ 5V
- Useful spec: 22g
- Compact size: 30 x 22mm
Compare with similar products
| Product | Sensor style | Standout |
|---|---|---|
| Conductivity Sensor Switch Gravity | button or switch input module with digital output | Current item |
| Current 20A Analog Sensor Gravity | electric current electric potential magnetic sensor module with analog output | analog output, hall-effect detection |
| Reed Switch 2 x 14 mm Normally Open 10PCS | magnetic sensor with digital output | normally-open switching, capacitive touch input |
| Current AC Sensor Analog Gravity | electric current electric potential magnetic sensor module with analog output | analog output, remote probe format |
What you can build
This sensor is a good fit for current meters, motor drivers, magnetic door sensing, power dashboards, and fault alerts.
Starter bundles
Pair it with an Arduino-compatible board, ESP32, or Raspberry Pi, plus a breadboard and jumper wires for quick setup and testing.
Recommended add-ons
Useful add-ons include a microcontroller board, jumper wires, and pull-up or pull-down support when needed, depending on how you plan to power, mount, and log the sensor.
Technical specifications
| Product | Conductivity Sensor Switch Gravity |
|---|---|
| Interface Mode | PH2.0-3P |
| Output Signal | Digital |
| Operating Voltage | 3.3 ~ 5V |
| Weight | 22g |
| Gravity | Conductivity Switch Sensor x1 |

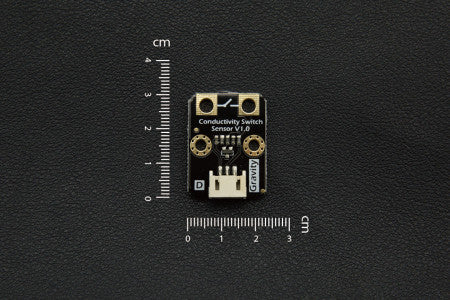

| Dimension | 30 x 22mm |

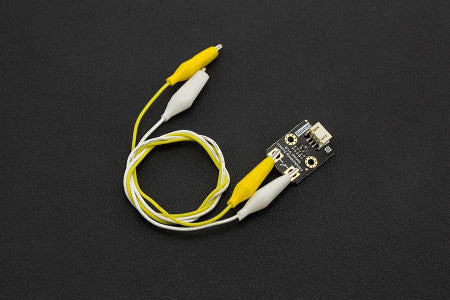

| Alligator clip Length | 45cm |
| Maximum Detecting Resistance | 10MΩ |
Wiring & usage notes
Connect power and ground, then wire the output pin to a digital GPIO input. Check whether the module uses active-high or active-low logic in your code.

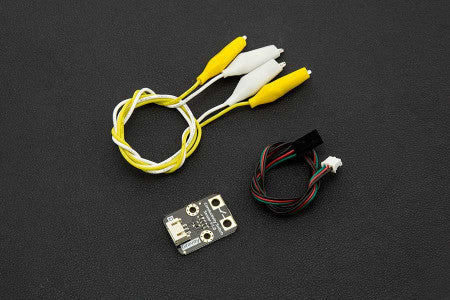

What’s in the box
1 × Conductivity Sensor Switch Gravity
Frequently Asked Questions
What does the Conductivity Sensor Switch Gravity measure?
It is designed to measure electrical conductivity.
Can I use it with Arduino, ESP32, or Raspberry Pi?
Yes. It is well suited for common maker and embedded platforms, as long as you power it at the correct voltage and match the signal level to your controller.
How do I connect this Digital GPIO sensor?
This sensor provides a digital switching-style signal that is easy to read from a GPIO pin.
What affects accuracy?
Power quality, wiring, mounting, target material, and the real environment can all affect the reading. It is best to test and calibrate in the final setup.
Is it good for prototyping?
Yes. It is a practical choice for learning, proof-of-concept builds, and small automation projects.
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
