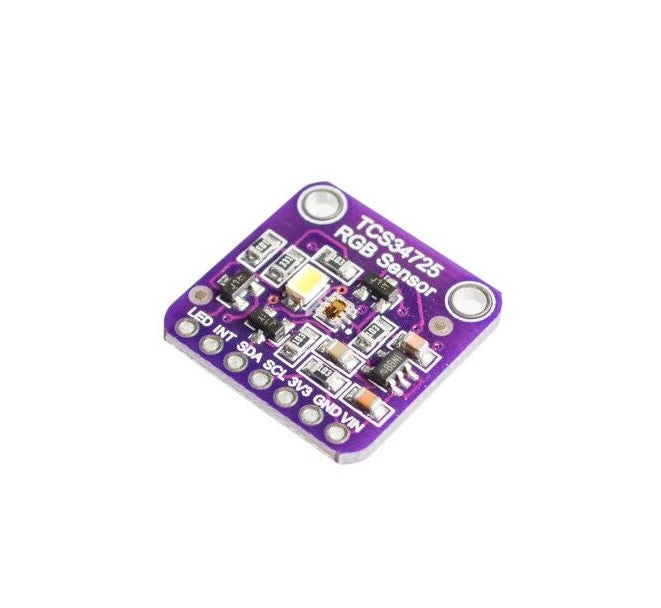

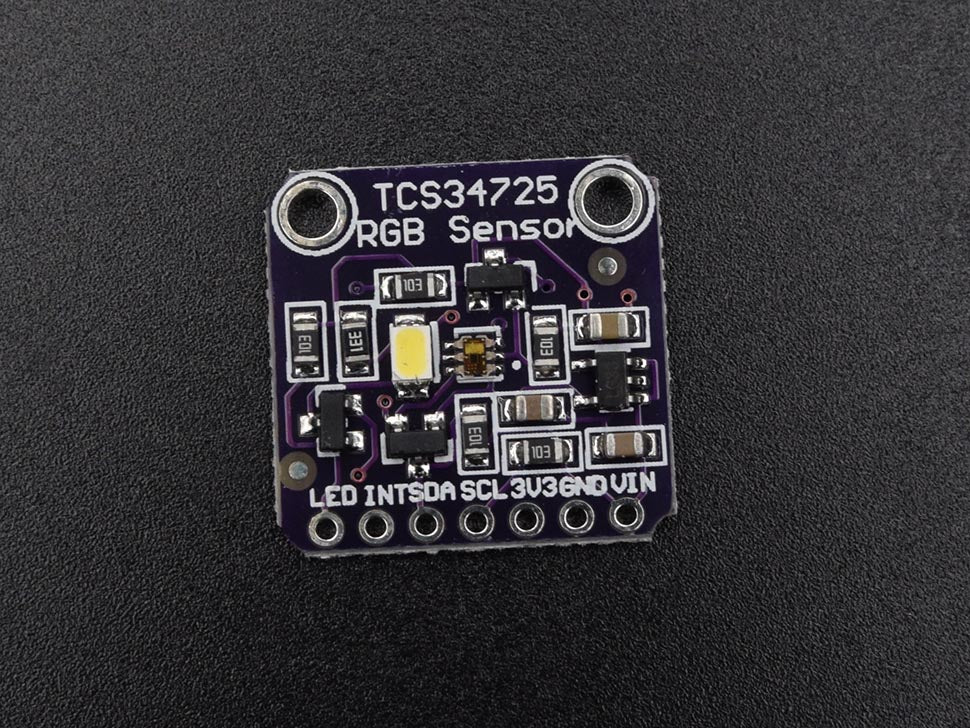

Color RGB Sensor with IR filter and White LED TCS34725

Color RGB Sensor with IR filter and White LED TCS34725 -  The world is dull if it goes colorless; the same goes for your robots. By creating a color-vision with your robot, they could determine the color of a banana or an orange and sense the world from a new perspective.

This module uses TCS34725 that has RGB and bright light-sensing element. This module was added with an IR blocking filter, integrated on-chip and localized to the color sensing photodiodes, that minimizes the IR spectral component of the incoming light. With that, the sensor can get much more actual colors than the other sensors. It also has an incredible 3.8m to 1 dynamic range with adjustable integration time and gain that makes it suitable for use behind a darkened glass.

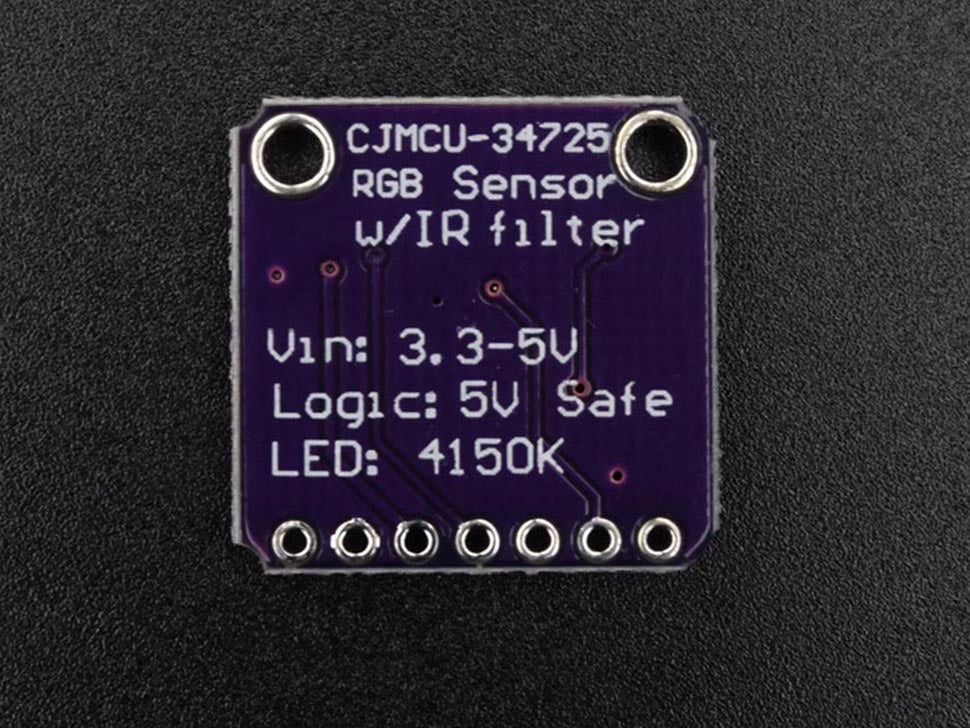

The module also has an added 3.3V regulator so you can power it up using a 3.3V-5V power supply without any problem and a level shifter so you can use it with 3.3V- 5V logic. It also comes with an LED so you can illuminate what you are trying to sense. It could easily be turned on/off by a separate pin.

Integrating it with your Arduino is through the I2C pins (SDA, SCL).

Frequently asked questions about Color RGB Sensor with IR filter and White LED TCS34725

Q1: What is a Color RGB Sensor with IR filter and White LED TCS34725?

A Color RGB Sensor with an IR filter and White LED TCS34725 is an electronic device that detects and measures color in various applications. It combines a color sensor, an infrared (IR) filter, and a white LED light source in one package. This sensor accurately measures red, green, and blue (RGB) color values, as well as ambient light intensity.

Q2: How does the Color RGB Sensor with IR filter and White LED TCS34725 work?

  • The TCS34725 sensor operates based on photodiodes that convert light energy into electrical signals. It consists of photodiodes that are sensitive to different wavelengths of light. RGB filters allow only specific wavelengths of red, green, and blue light to reach the corresponding photodiodes.
  • When the white LED is turned on, it illuminates the target object with white light. The light reflected from the object passes through the IR filter, which blocks infrared light that can interfere with color detection. The filtered light reaches the photodiodes, generating electrical currents proportional to the intensity of each color component.
  • The sensor's integrated analog-to-digital converter (ADC) converts the electrical currents into digital values, providing RGB color data and ambient light measurements. These values can be processed by a microcontroller or computer to determine the color properties of the measured object.

Q3: What are the main applications of the Color RGB Sensor with IR filter and White LED TCS34725?

The Color RGB Sensor with IR filter and White LED TCS34725 has various applications, including:

  1. Color detection and sorting: It can detect and sort objects based on their color in industrial automation, such as identifying different parts or products in manufacturing processes.
  2. Ambient light adjustment: The sensor measures ambient light levels, allowing for automatic adjustments of brightness in displays, backlights, or other lighting systems.
  3. Colorimetry and spectroscopy: It enables precise color measurement and analysis in scientific research, color calibration, or quality control processes.
  4. Imaging and photography: The sensor assists in color correction and white balance adjustments in digital imaging devices, ensuring accurate color reproduction in photographs or videos.
  5. Smart lighting: By detecting ambient light conditions, the sensor contributes to smart lighting systems that adjust light intensity or color temperature based on the surrounding environment.
  6. Wearable devices and mobile applications: Its small form factor and low power consumption make it suitable for integration into wearable devices or smartphones, providing color-sensing capabilities for various applications.

Q4: How can you calibrate the TCS34725 sensor?

To calibrate the TCS34725 sensor, follow these steps:

  • Obtain reference values: Use a reliable color measurement device or spectrophotometer to measure known color samples. Note down the corresponding RGB values for each color.
  • Read sensor values: Capture RGB readings from the TCS34725 sensor for the same set of color samples.
  • Calculate correction factors: Compare the reference RGB values with the sensor readings and calculate correction factors for each color channel. Determine the difference between the reference and measured values and establish a scaling factor or offset.
  • Apply correction: Adjust subsequent sensor readings by multiplying or adding the calculated correction factors to align them with the reference values.

Specific calibration procedures may vary, so consult the sensor's datasheet or manufacturer's documentation for detailed instructions and recommendations.
