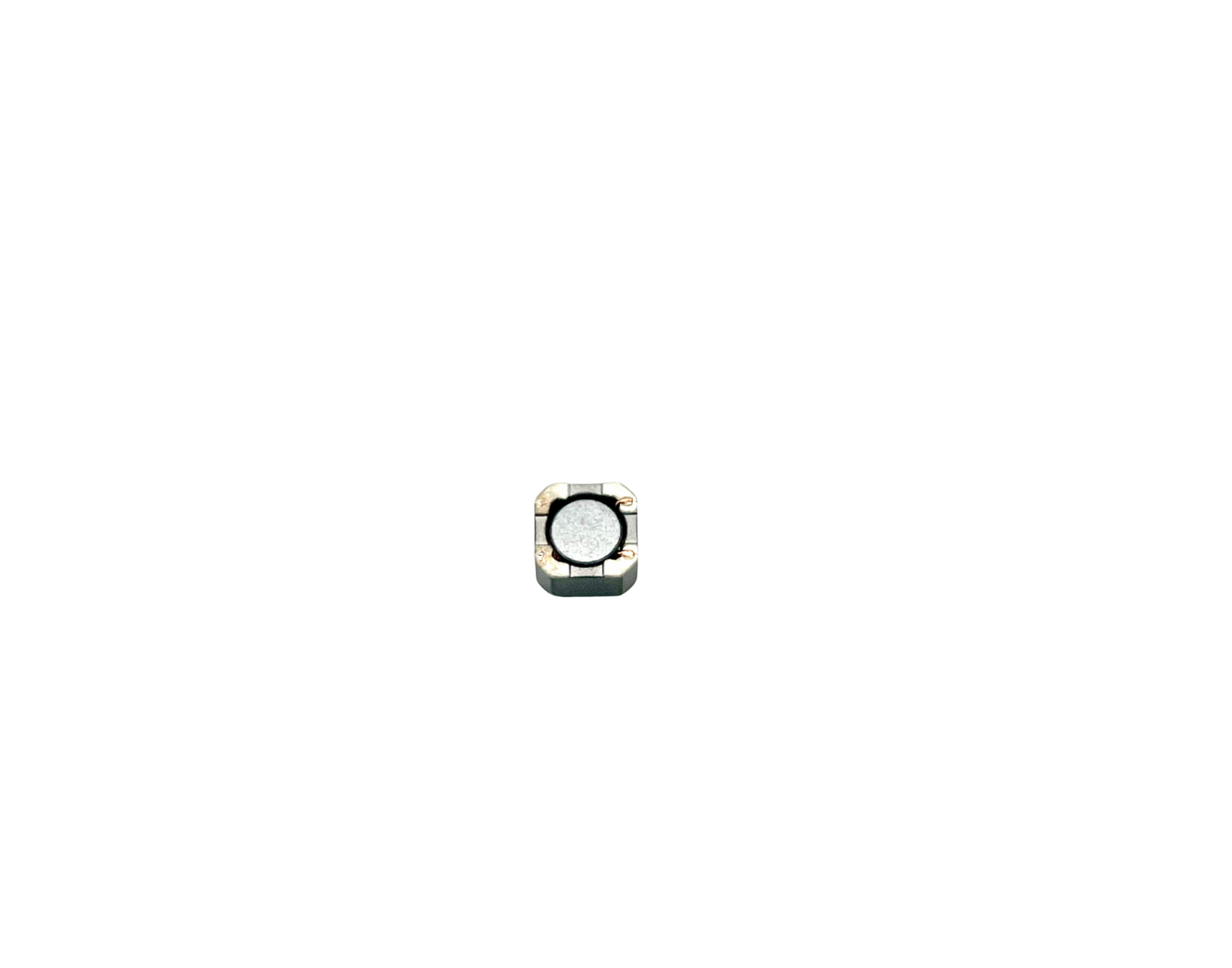

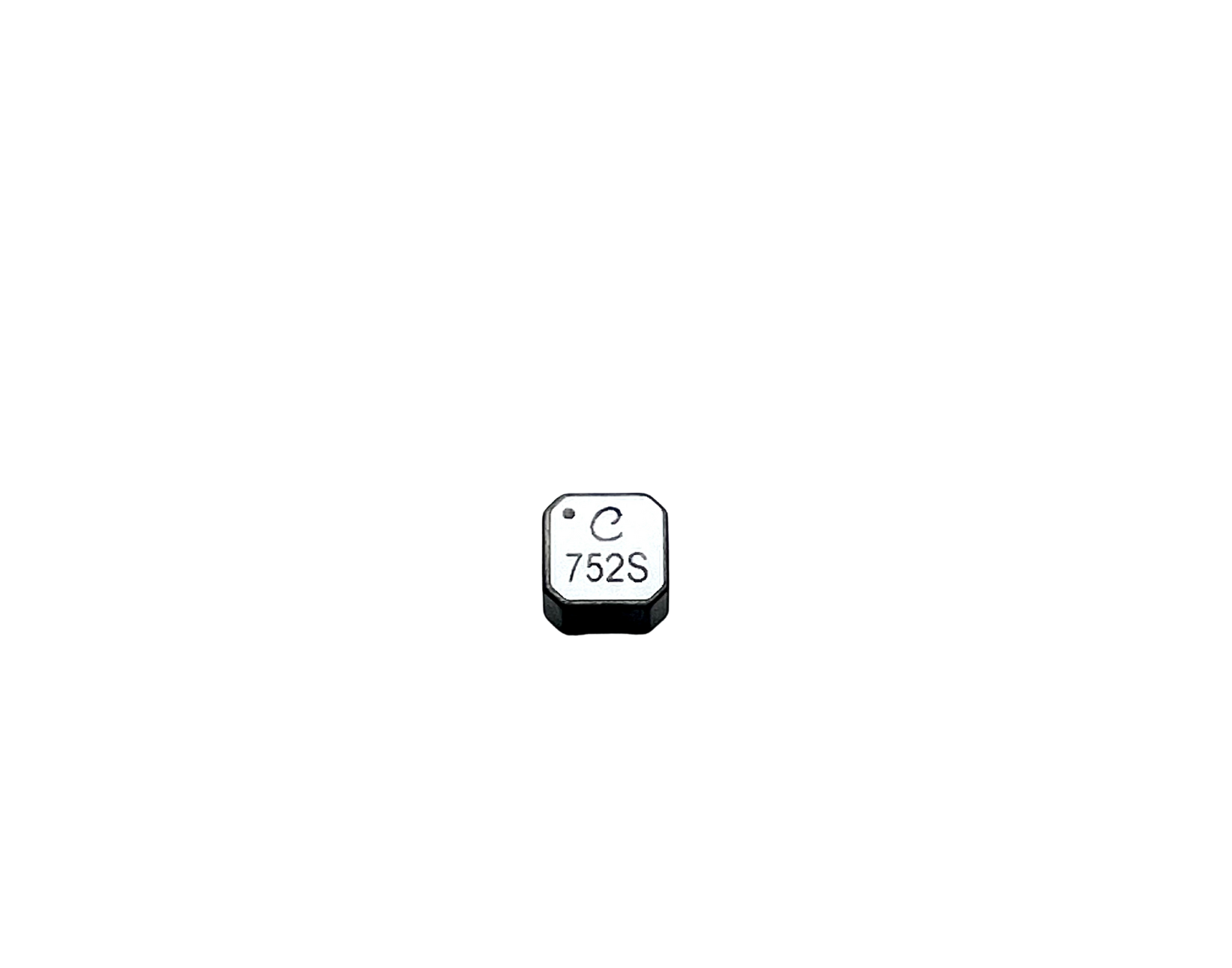

COILCRAFT LPR6235-752SMRB
The Coilcraft LPR6235-752SMRB Transformer is a highly efficient and reliable component, featuring a 1:100 turn ratio perfect for applications requiring effective energy transfer. With a low direct current resistance (DCR) of around 316 Ohms, it can handle a maximum current of 1.6A, ensuring minimal power loss and optimal performance in various circuits. This transformer is specifically designed for use with the Energy Harvester LTC3108, making it an excellent choice for projects focused on harvesting low-level ambient energy. Its Surface Mount Technology (SMT) design allows easy integration into compact, high-density circuit boards.
A key feature of this transformer is its excellent coupling coefficient of approximately 0.95, which maximizes energy transfer between the windings—an essential characteristic for the LTC3108 Energy Harvester to operate efficiently. The low DCR further enhances its performance by reducing energy loss and minimizing heat generation, making it ideal for low-power applications like energy harvesting from thermoelectric generators or other small voltage sources. This makes it a robust and cost-effective solution for both consumer and industrial electronics focused on sustainable energy solutions.
In addition to its technical benefits, the Coilcraft LPR6235-752SMRB Transformer is RoHS compliant, ensuring it is free from hazardous substances and safe for environmentally conscious designs. Whether you're working on an energy-harvesting project, power management system, or other low-power applications, this transformer provides a reliable and high-performance option. Its compatibility with the LTC3108 Energy Harvester and its rugged design make it an invaluable component for engineers and hobbyists looking to maximize efficiency in their projects.
Specification:
- Turn Ratio: 1:100
- DCR: 316 Ohms
- Max Current: 1.6A
- Coupling Coefficient: ~0.95
- Technology: SMT (Surface Mount Technology)
- Compliance: RoHS compliant
- Compatibility: Works with LTC3108 Energy Harvester
Technical Details
COILCRAFT LPR6235-752SMRB
COILCRAFT LPR6235-752SMRB
Low stock: 8 left
Product Code
SKU:2351
