Bracket Pair for Sharp GP2Y0A02 GP2Y0A21 and GP2Y0A41 Distance Sensors Parallel

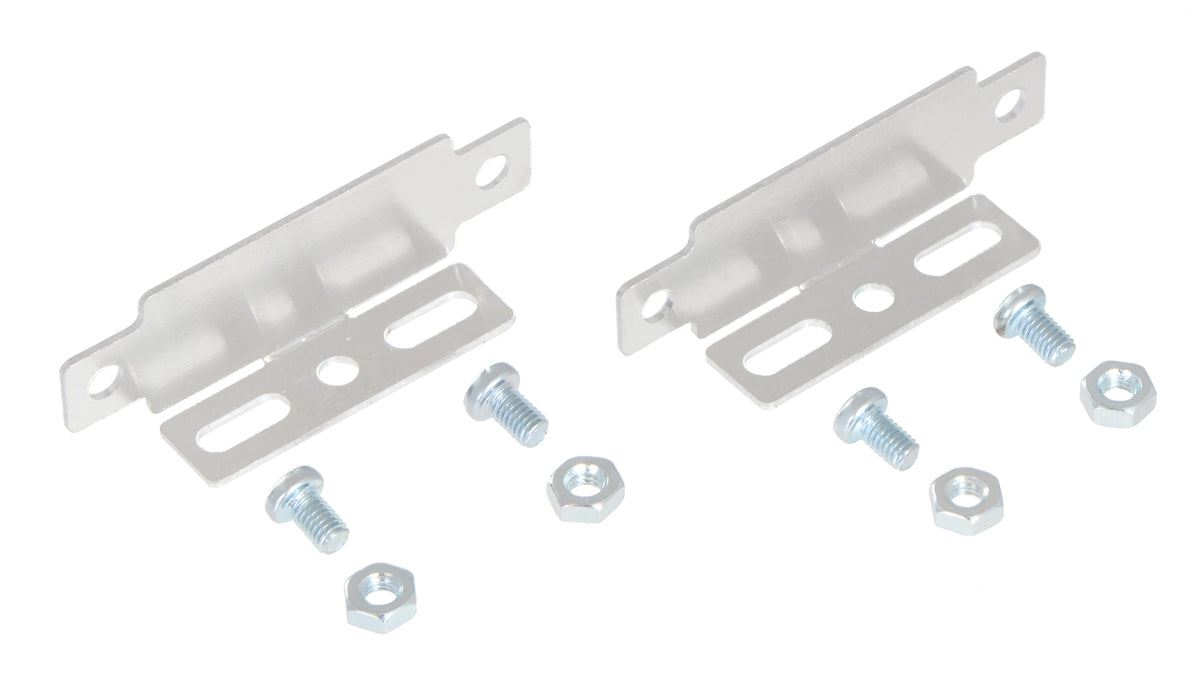

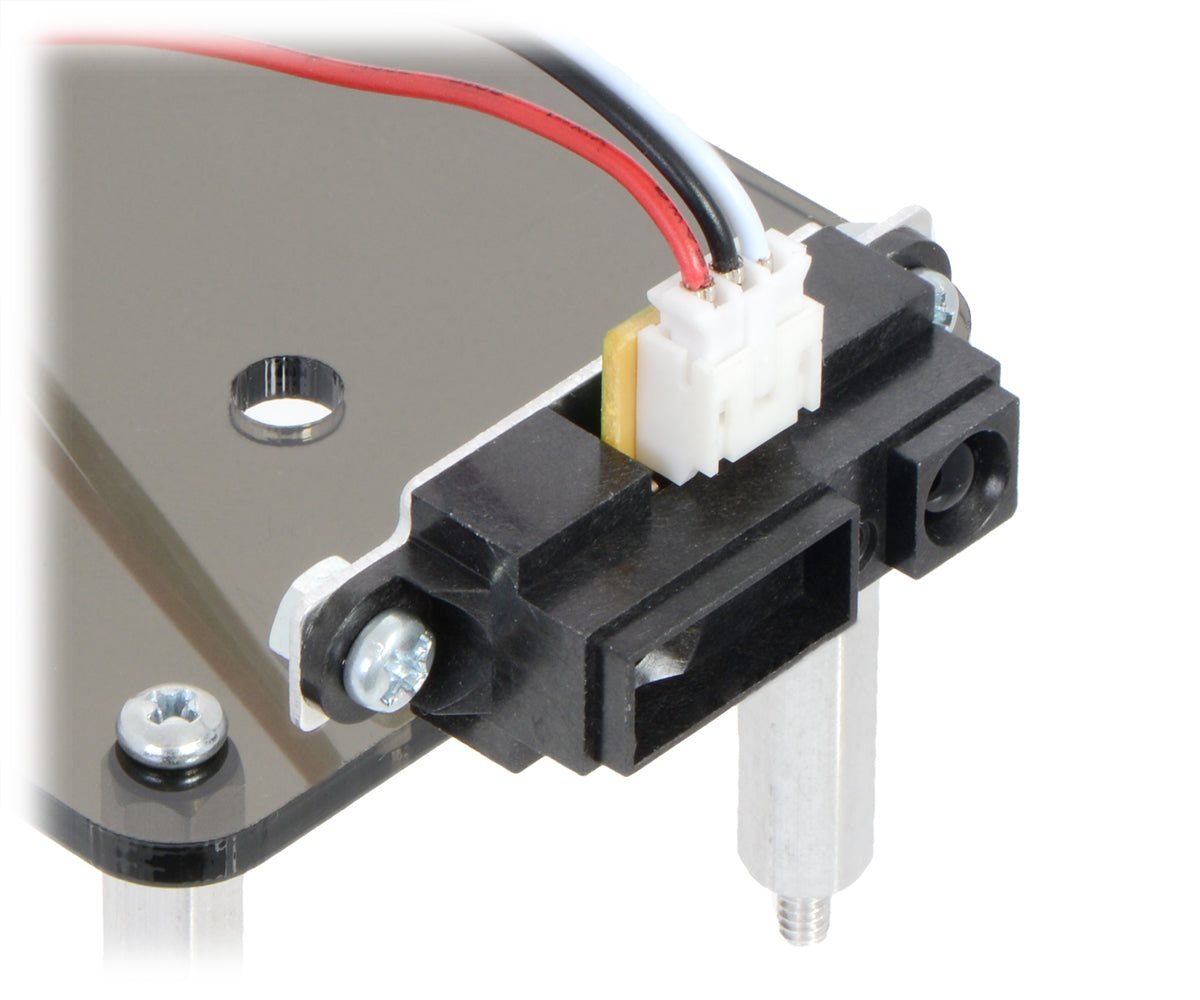

These lightweight aluminum brackets make it easy to mount and integrate the Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors into your project. The brackets are strong enough to hold their position, but they can also be bent by hand to different angles if the application calls for it. These brackets, which allow for a low-profile parallel sensor orientation, are sold in pairs, and four M3 screws and nuts are included for securing sensors to the brackets.

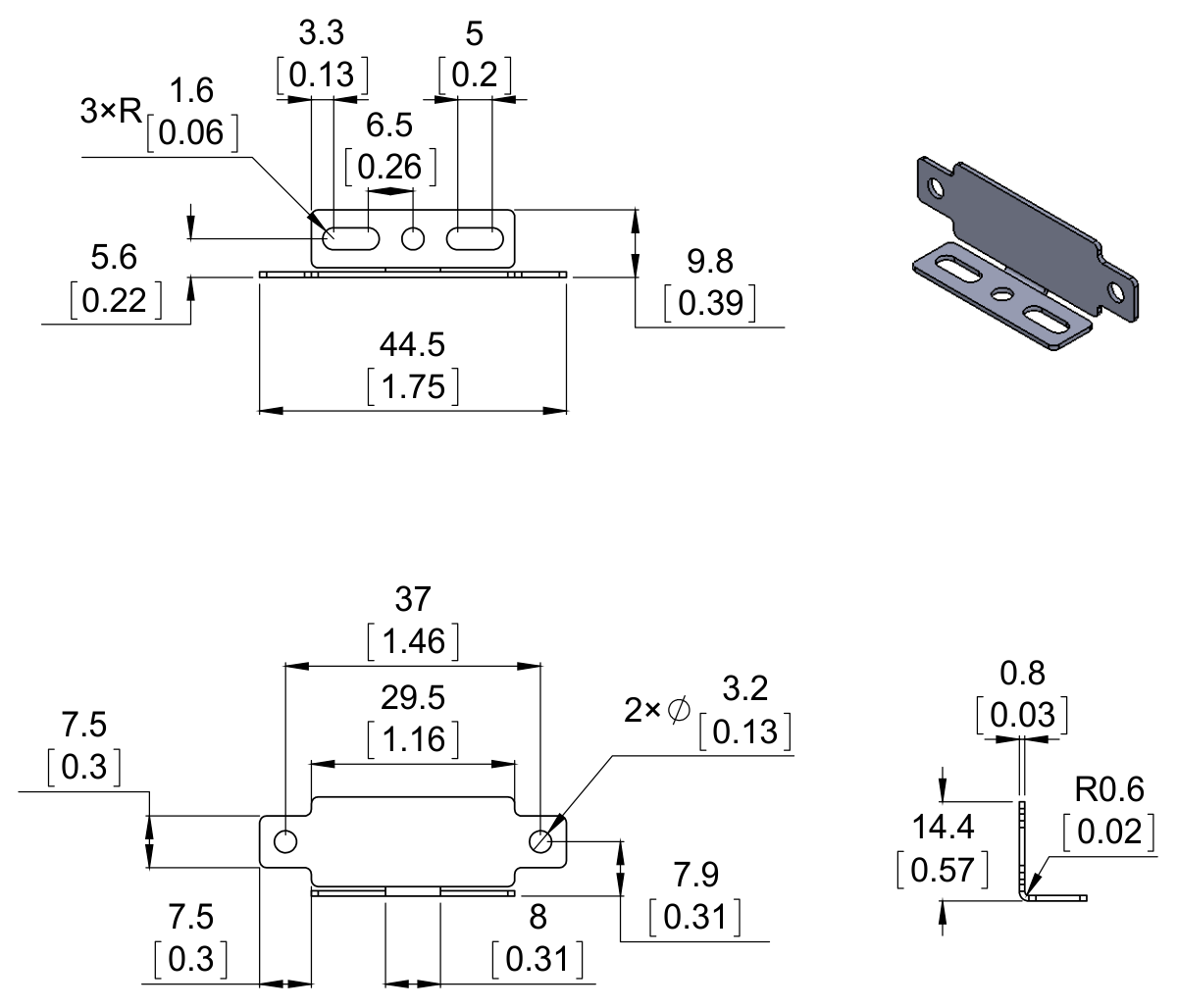

Dimensions:

• Weight: 1.5 g

• Dimension diagram of Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Perpendicular (71k pdf)
• Dimension diagram of Bracket for Sharp GP2Y0A02, GP2Y0A21, and GP2Y0A41 Distance Sensors – Multi-Option (74k pdf)

• 3D models of Brackets for Sharp Distance Sensors (734k zip)
