Blood Pressure Sensor Serial Output

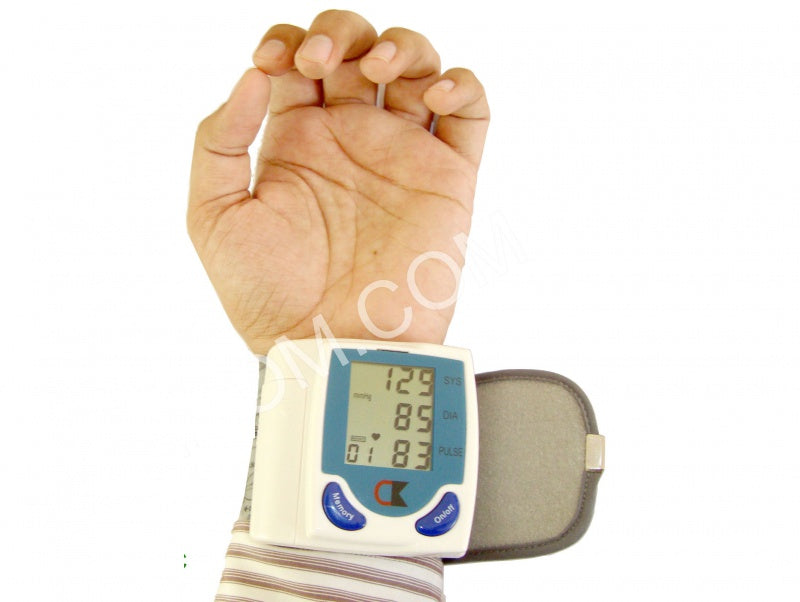

Blood Pressure & Pulse reading are shown on display with serial out for external projects of embedded circuit processing and display. Shows Systolic, Diastolic and Pulse Readings. Compact design fits over your wrist like a watch. Easy to use wrist style eliminates pumping.


  • Intelligent automatic compression and decompression
  • Easy to operate, switching button to start measuring
  • 60 store groups memory measurements
  • Can read single or all measures
  • 3 minutes automatic power saving device
  • Intelligent device debugging, automatic power to detect
  • Local tests for : wrist circumference as 135-195mm
  • Large-scale digital liquid crystal display screen, Easy to Read Dsplay
  • Fully Automatic, Clinical Accuracy, High-accuracy
  • Power by External +5V DC
  • Serial output data for external circuit processing or display.


  • Working Voltage: +5V, 200mA regulated
  • Output Format :Serial Data at 9600 baud rate(8 bits data, No parity, 1 stop bits). Outputs three parameters in ASCII.

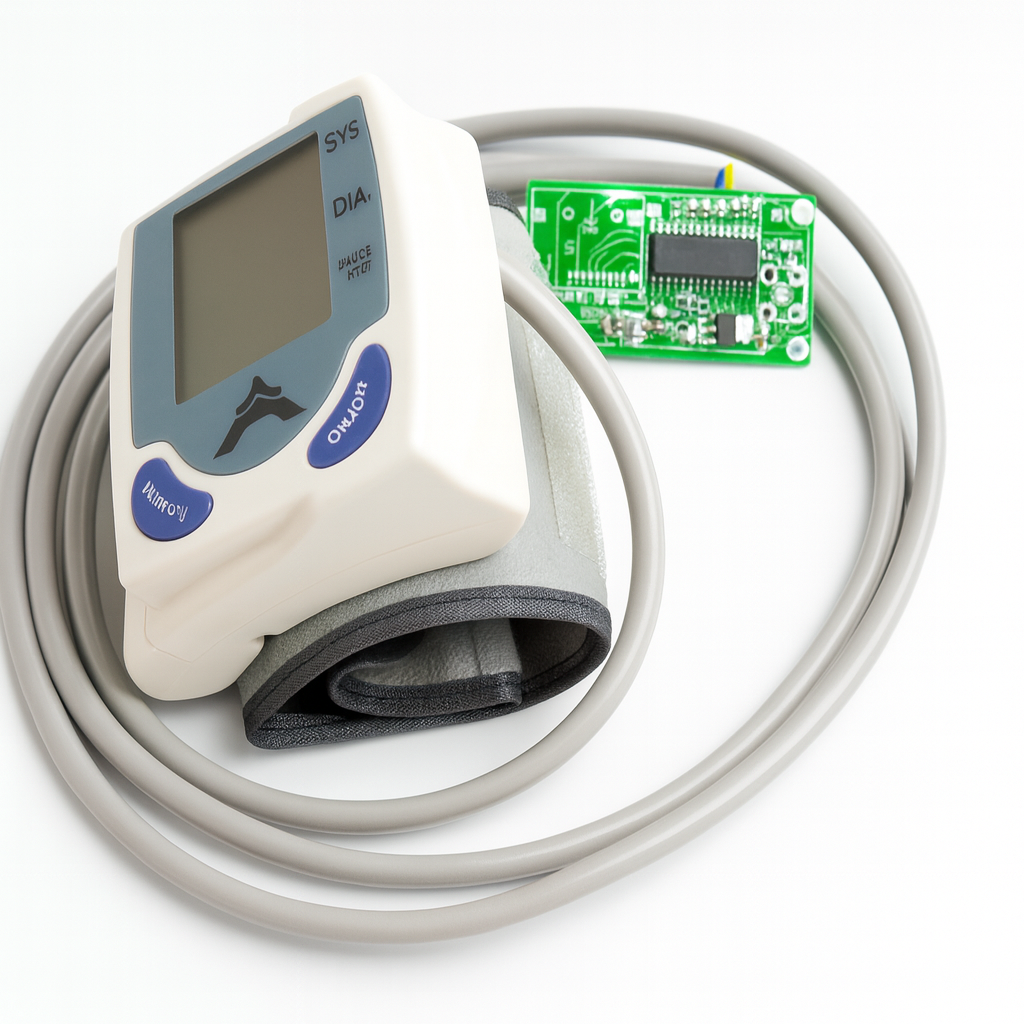

  • Sensing unit wire length is 2 meters

  • TX-OUT = Transmit output. Output serial data of 3V logic level, Usually connected to RXD pin of microcontrollers/RS232/USB-UART.
  • +5V = Regulated 5V supply input.
  • GND = Board Common Ground
Note: Product does not require battery for operation. It is powered from external PCB as per above pinouts.

Blood Pressure Basics

Blood pressure is the pressure of the blood in the arteries as it is pumped around the body by the heart. When your heart beats, it contracts and pushes blood through the arteries to the rest of your body. This force creates pressure on the arteries. Blood pressure is recorded as two numbers— the systolic pressure (as the heart beats) over the diastolic pressure (as the heart relaxes between beats). The unit which measures this is called Sphygmomanometer.

Monitoring blood pressure at home is important for many people, especially if you have high blood pressure. Blood pressure does not stay the same all the time. It changes to meet your body’s needs. It is affected by various factors including body position, breathing or emotional state, exercise and sleep. It is best to measure blood pressure when you are relaxed and sitting or lying down.

Classification of blood pressure for adults (18 years and older)

  • Systolic (mm Hg) Diastolic (mm Hg)
  • Hypotension < 90 < 60
  • Desired 90–119 60–79
  • Prehypertension 120–139 80–89
  • Stage 1 Hypertension 140–159 90–99
  • Stage 2 Hypertension 160–179 100–109
  • Hypertensive Crisis ≥ 180 ≥ 110

High blood pressure (hypertension) can lead to serious problems like heart attack, stroke or kidney disease. High blood pressure usually does not have any symptoms, so you need to have your blood pressure checked regularly.

Blood Pressure Sensor Serial Output

Blood Pressure Sensor Serial Output

Out of stock

Product Code


Regular price ₱ 11,999.00
Regular price Sale price ₱ 11,999.00
Sale Sold out
View full details
