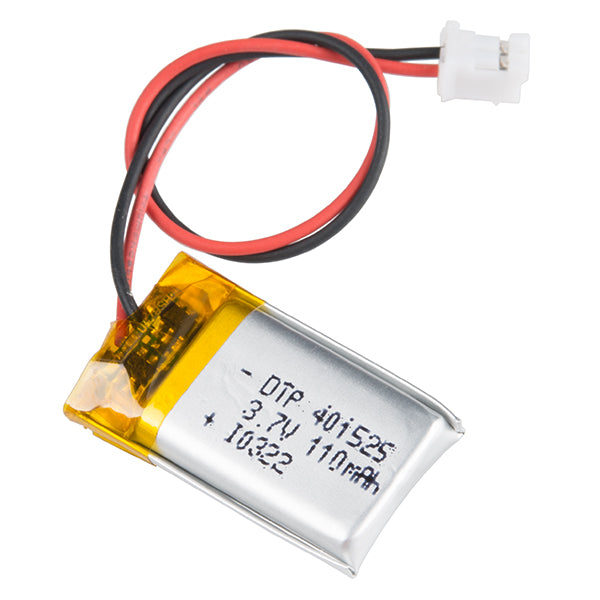

Battery Lithium Ion 110mAh

This is a very small, extremely light weight battery based on Lithium Ion chemistry. This is the highest energy density currently in production. Each cells outputs a nominal 3.7V at 110mAh! Comes terminated with a standard 2-pin JST-PH connector - 2mm spacing between pins. These batteries require special charging so please do not attempt to charge these with anything but a specialized Lithium Polymer charger.

Each battery includes a built-in protection against over voltage, over current, and minimum voltage. Please use caution when using this battery in wearable projects. When using conductive thread, a short in the thread can create sparks and heat. We recommend using coin cell batteries for beginners.

QUICK SPECS:

• Rated Capacity: 110mAh

• Nominal Voltage: 3.70V

• Max Charge Current: 1C (110mA)

• Normal Charge Current: 0.2C (22mA)

• Datasheet

• MSDS
