One truth about working with audio is you always need the cable or adapter you don't have in your toolbox. That's why we love these terminal-block audio connectors so much. No soldering required! Use stranded or solid core wire and a small screwdriver to create custom wiring jigs.

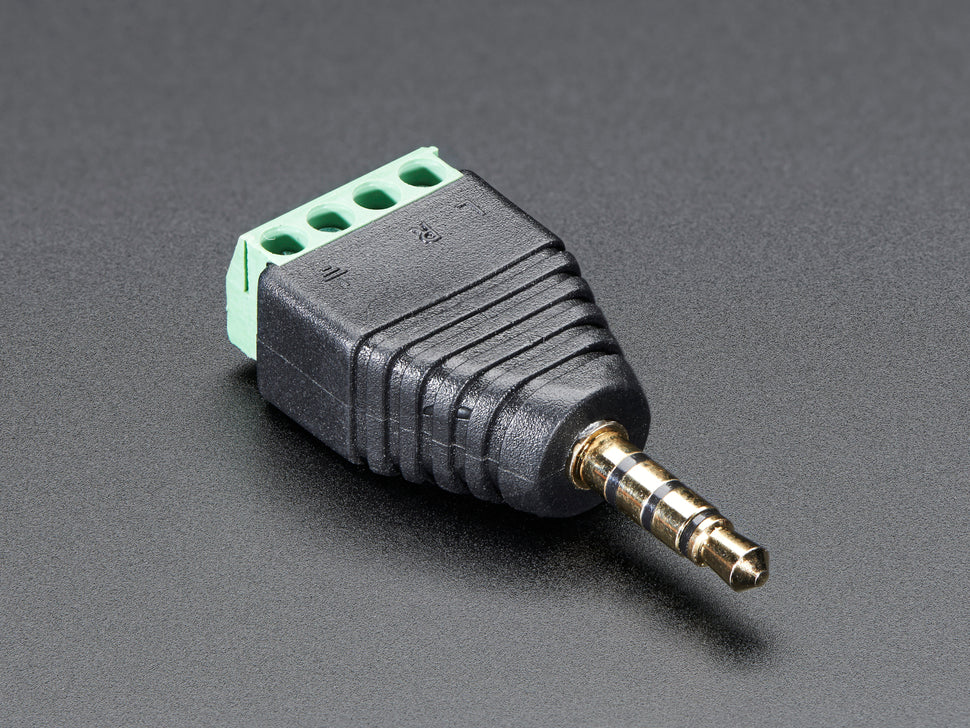

This is the 3.5mm (1/8") 4-Pole (TRRS) Audio Plug Terminal Block. TRRS stands for Tip, Ring, Ring, Sleeve. It has four total conductors - three signal and a ground as opposed to a more common stereo jack's two. This connector is most often used in smartphones & cellphones to provide stereo audio and one mic channel. On a Raspberry Pi, the extra connector is used for composite video.

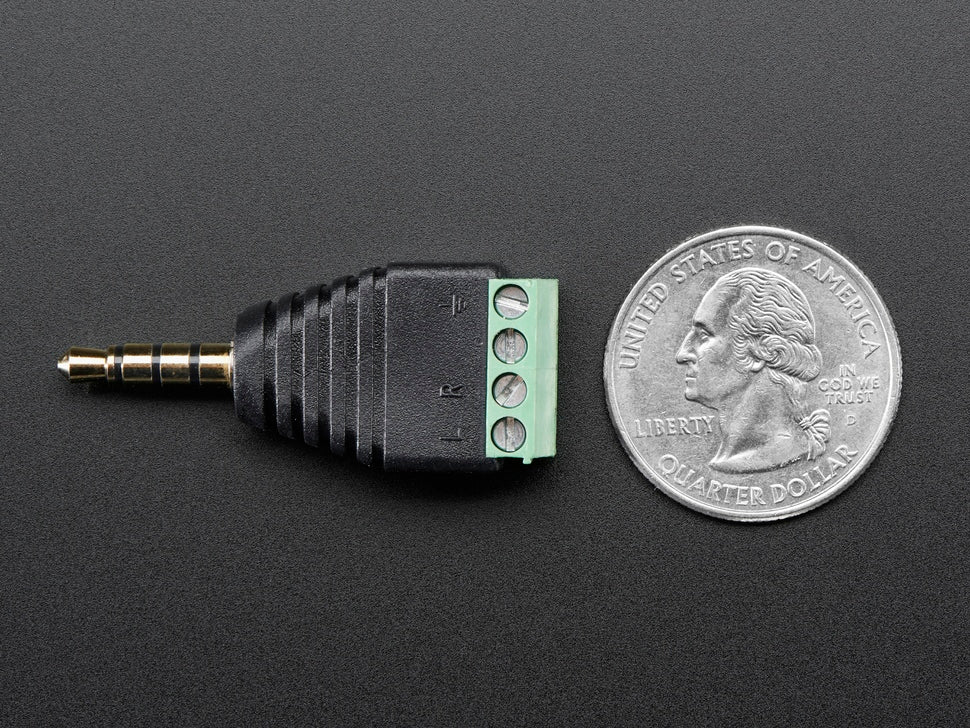

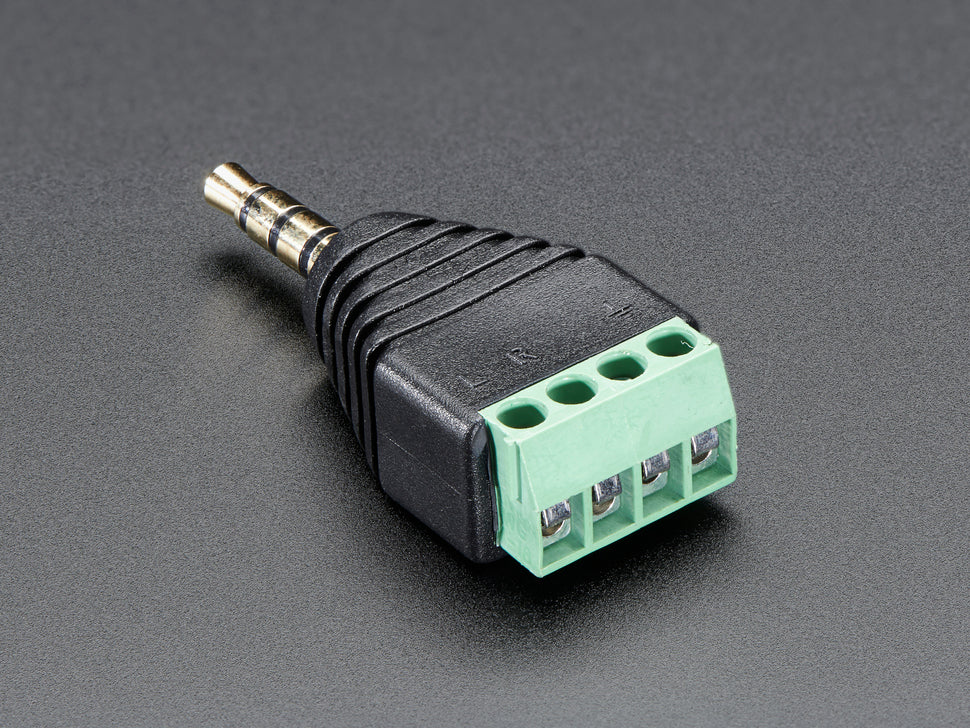

Note that the green block labels it as GND-blank-Right-Left which is the most commonly used order. However, it would be more technically correct to just label it Sleeve-Ring-Ring-Tip: goes in the same order as the four contacts on the plug.
It may come with nickel or gold plated contacts.
We also have a (matching) 4-Pole Audio Jack Terminal Block!
TECHNICAL DETAILS
- Length (end to end): 40mm / 1.57"
- Weight: 6.5g
- Wire gauge: 30-16AWG
- Terminal pitch: 3.5mm
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
