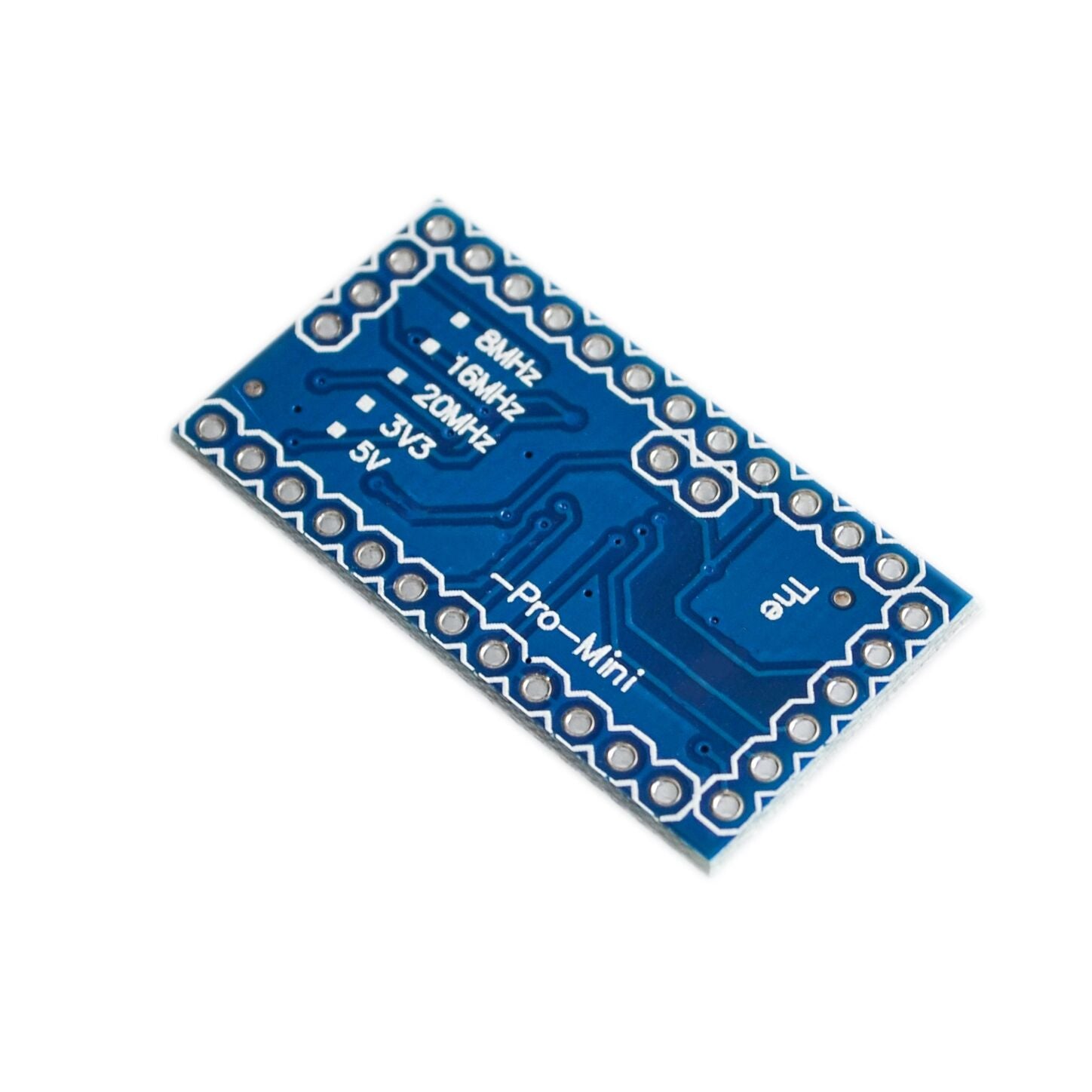

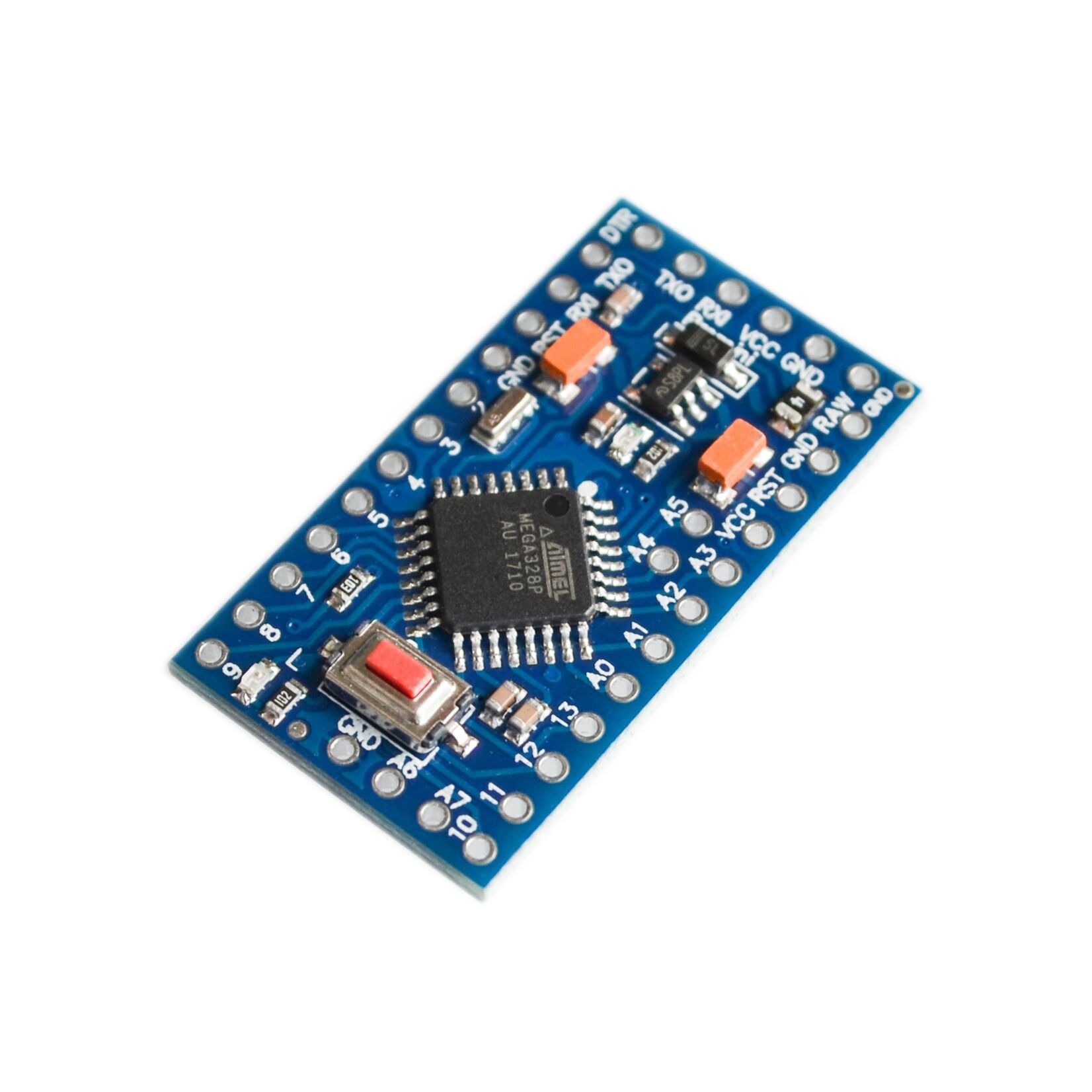

Pro Mini 328 5V 16Mhz with Arduino


The Arduino Pro Mini is Sparkfun's take on a compact, low-cost, and adaptable Arduino development board. It has minimal components, making it highly flexible and easy to integrate into any project. In order to program the Arduino Pro Mini, you need to have an FTDI cable since it doesn't have an onboard USB interface.

Specifications:

  • ATmega328 running at 16MHz with external resonator (0.5% tolerance)
  • 5V regulator
  • DC input 5V up to 12V
  • 14 digital IO - TXD, RDX, D2-D13
  • 8 analog IO - A0-A7
  • Reverse polarity protected
  • Dimension: 33.3 *18.0mm

Inclusions:

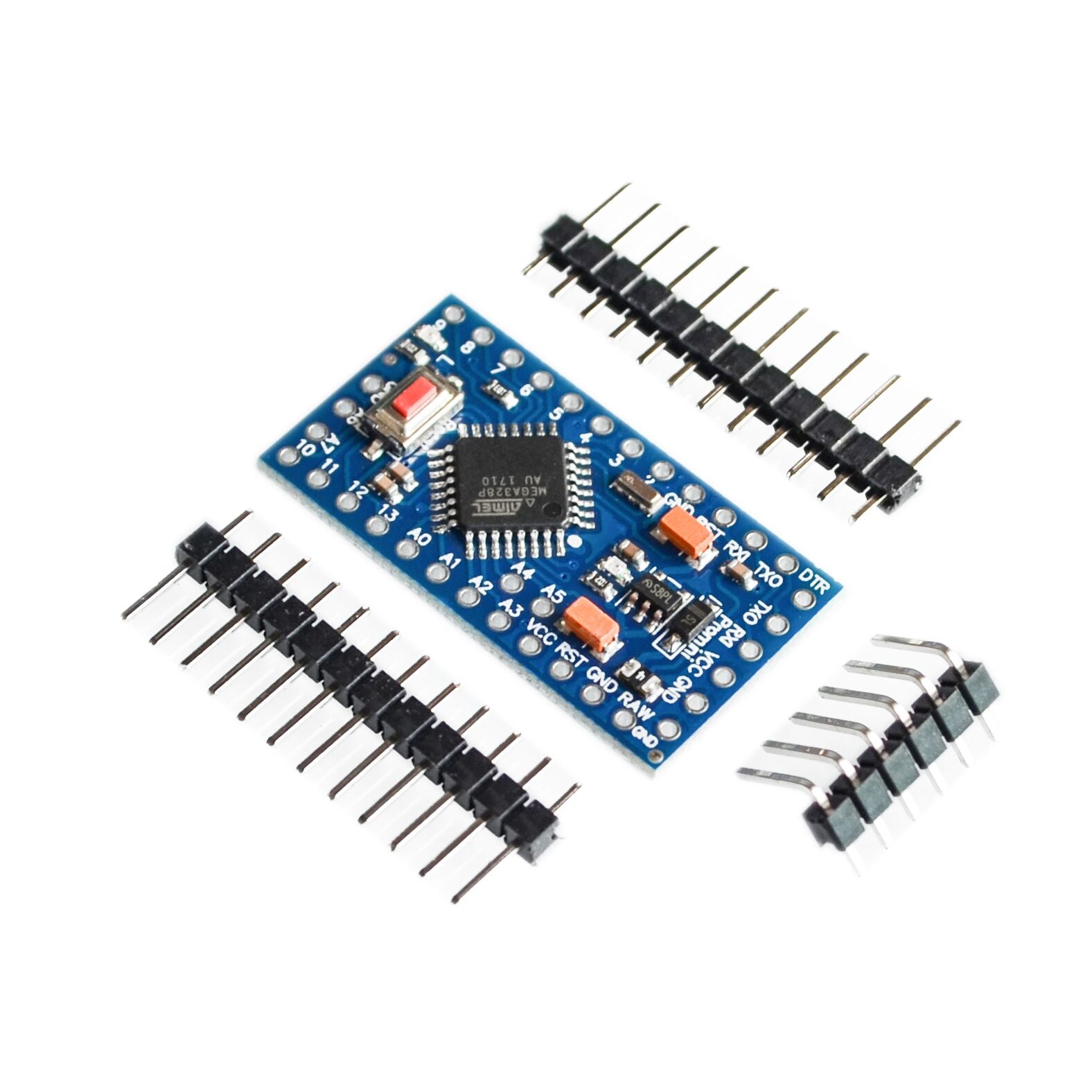

  • Arduino Pro Mini 328 x1
  • 12Pin Male Header x 2
  • 6Pin Male Header x 1
