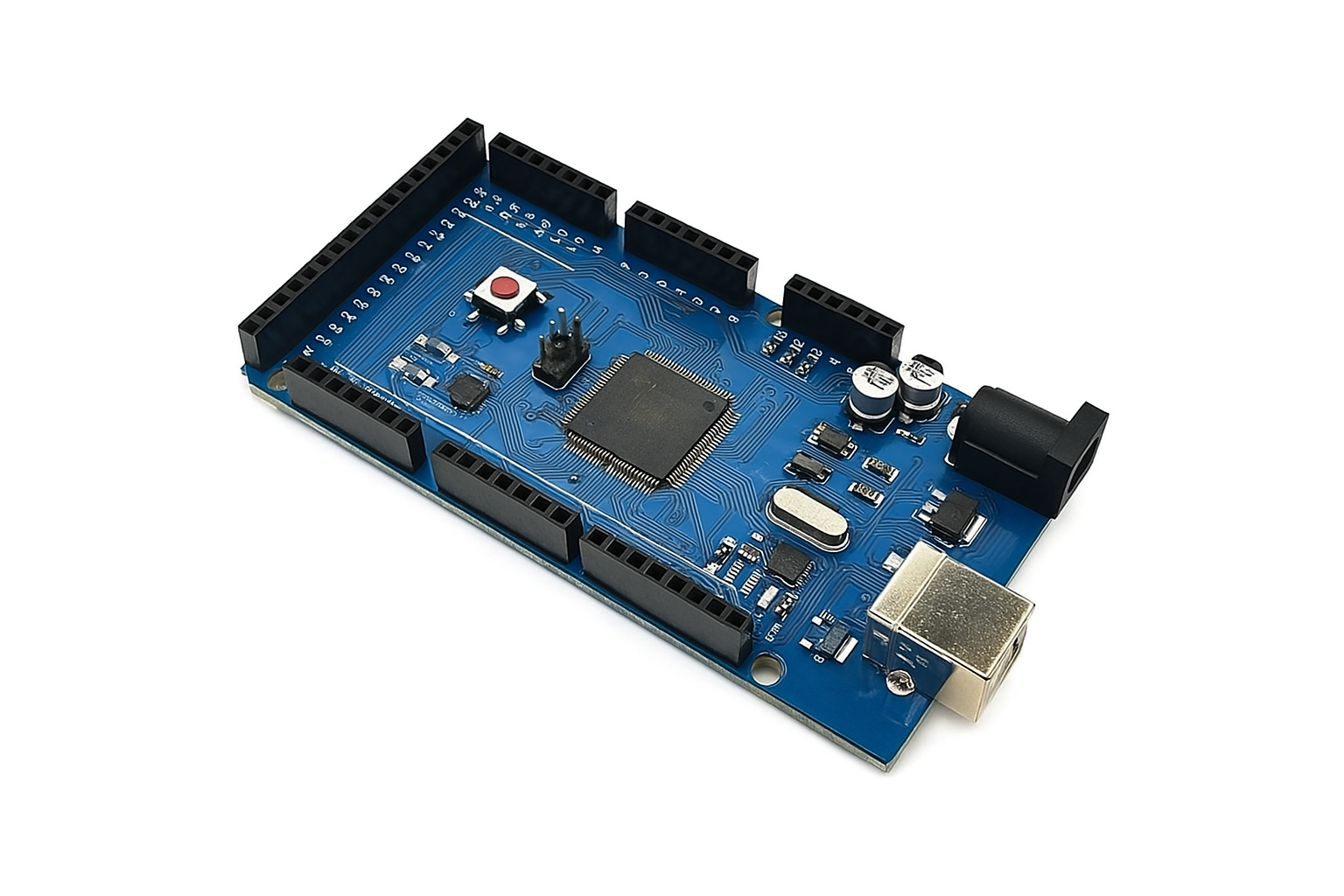

Arduino Mega Board 2560 R3-Compatible gives your projects more pins, memory, and serial ports without changing your workflow. With the ATmega2560 @ 16 MHz, 54 digital I/O (15 PWM), 16 analog inputs, and 4 hardware UARTs, it’s a favorite for robots, CNC/3D-printer control, dashboards, and classroom labs in the Philippines. The R3 layout keeps it friendly with most Arduino shields, sensors, and displays.
Go Big on I/O — 54 Pins, 4 UARTs, Mega-Sized Projects
- Massive expansion: 54 digital pins, 16 analog, 15 PWM for complex control panels and bots.
- Multi-serial ready: 4 UARTs let you run GPS, GSM, Bluetooth, and a PC console simultaneously.
- Memory for larger sketches: 256 KB Flash and 8 KB SRAM handle libraries, buffers, and UIs.
- Shield & library friendly: R3 footprint, 5 V logic, and broad Arduino ecosystem support.
What you can build
- Robotics: 4WD/6WD platforms with multiple motor drivers, IMU, ToF, and encoders
- CNC/3D printing: motion control with RAMPS-style shields, endstops, heaters, fans
- Data acquisition: multi-sensor logging via RTC + microSD shields
- Interface hubs: keypads, relays, stepper drivers, large TFTs and LED matrices
Starter bundles (quick picks)
- Mega Lab: Mega 2560 + USB-B cable + sensor pack + 1602 LCD / 2.4–3.5″ TFT
- Robot Builder: Mega 2560 + motor shield + 2WD/4WD chassis + battery/PSU
- CNC Dev: Mega 2560 + RAMPS-style shield + A4988/DRV8825 + endstops
Recommended add-ons
- USB-B cable for programming
- Shields (motor, relay, Ethernet, proto)
- Sensors & displays (OLED/TFT)
- 5V/9V/12V power supplies & 5.5×2.1 mm barrel adapters
- Tools & multimeter for bring-up and debug
- Cases & mounting (tall lids for stacked shields)
Technical specifications
| Microcontroller | ATmega2560 (8-bit AVR) @ 16 MHz |
|---|---|
| Operating voltage | 5 V logic |
| Input voltage (recommended) | 7–12 V via DC jack (allowable 6–20 V) |
| Digital I/O pins | 54 (15 PWM) |
| Analog inputs | 16 (10-bit ADC) |
| Hardware serial | 4× UART (Serial, Serial1, Serial2, Serial3) |
| Flash / SRAM / EEPROM | 256 KB (8 KB bootloader) / 8 KB / 4 KB |
| Interfaces | I²C (SDA/SCL), SPI (via ICSP), UARTs |
| USB interface | Varies by batch: ATmega16U2 or CH340/CP2102 (install driver if required) |
| USB connector | USB-B |
| Power connectors | USB 5 V, DC barrel jack 5.5×2.1 mm (center-positive), VIN/5V/3V3/GND pins |
| Per-pin DC current | 20 mA (observe absolute maximum ratings) |
| Dimensions | ≈101.5 × 53.4 mm (R3 footprint) |
Pinout & power notes
- SPI: Use the 6-pin ICSP header for SPI to ensure shield compatibility (don’t rely on pins 50–53).
- 5 V logic: If a module is 3.3 V-only, add a logic level converter.
- Serial devices: Put GPS/GSM/Bluetooth on Serial1–3 and keep Serial free for debugging.
- Power budget: Servos/steppers need an external supply; don’t power motors from the board’s 5 V rail.
What’s in the box
- Mega 2560 R3-compatible board (USB cable not included unless stated in variants)
- Pre-soldered headers (typical for this board class)
FAQs – Mega 2560 R3-Compatible (Philippines)
Will my UNO shields work?
Yes—most UNO R3 shields are compatible. For SPI shields, use the ICSP header; adjust chip-select pins if stacking multiple shields.
Which cable and drivers do I need?
Use a USB-B cable. If your PC can’t detect the board, install the correct USB driver (e.g., CH340 or CP2102), depending on the batch.
How is the Mega different from the UNO?
More I/O (54 vs 14), more memory (256 KB vs 32 KB), and 4 UARTs instead of 1—ideal for larger projects and multiple peripherals.
Do you ship nationwide and support school/corporate orders?
Yes. We ship nationwide across the Philippines via trusted couriers and can prepare classroom bundles and bulk quotations on request.
