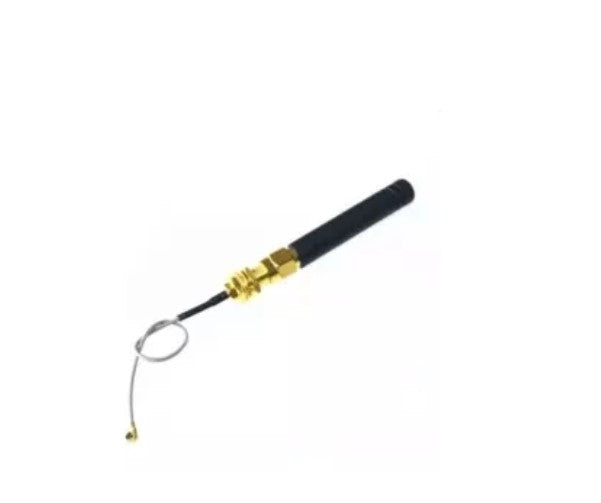

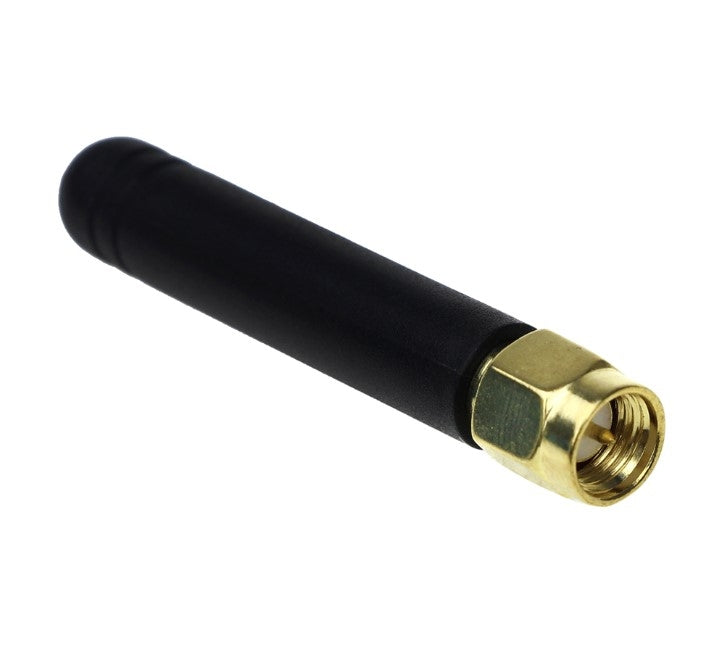

This 2.4"/61mm long antenna has 2dBi of gain and 50Ω impedance so it will work fantastically with just about any 850/900/1800/1900/2100 wireless receiver/transmitter such as any Cellular or GSM/GPRS device.
Antenna comes with a SMA connector, which is the most common type you'll see for Cellular development boards. If you need to connect this to an RP-SMA connector for some reason, use this handy adapter and if you need to connect to a u.FL connector, just pop on this adapter.
SPECIFICATIONS:
-
Datasheet
- Frequency: 850/900/1800/1900/2100 MHz
- Gain: 2 dBi
- V.S.W.R.: <=2:1
- Polarization: Vertical
- Connector: SMA Male (Option)
- Impedance: 50Ω
- Operation Temperature: -20ºC ~ 60ºC
- Storage Temperature: -30ºC ~ 75ºC
Dimensions:
- Length: 61mm / 2.4"
- Weight: 6g
- Image of dimensionsLength: 61mm / 2.4"
- Weight: 6g
-
Image of dimensions
