Don't fret! There's always an ADC to solve your analog signal problem. The ADC ADS1015 12-Bit 4 Channel with Programmable Gain Amplifier is a high-precision Analog to Digital Signal Converter that can convert any analog data to binary with up to 12-bit precision at 3300 samples per second over I2C. What's amazing with this component is that it has a programmable gain amplifier and it can run from 2V to 5V power and logic. Talk about awesome!
Specifications:
- Input Voltage: 2.0V to 5.5V
- Low Current Consumption
- Programmable Data Rate: 128SPS to 3.3kSPS
- Internal Low-Drift Voltage Reference
- Internal Oscillator and PGA
- I2C interface
- Four Single-Ended or Two Differential Inputs
- Programmable Comparator
- This board/chip uses I2C 7-bit addresses between 0x48-0x4B, selectable with jumpers
Inclusions:

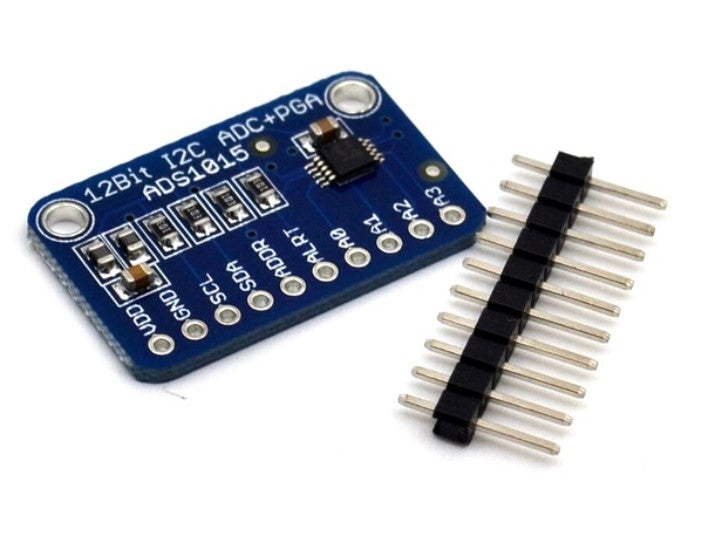

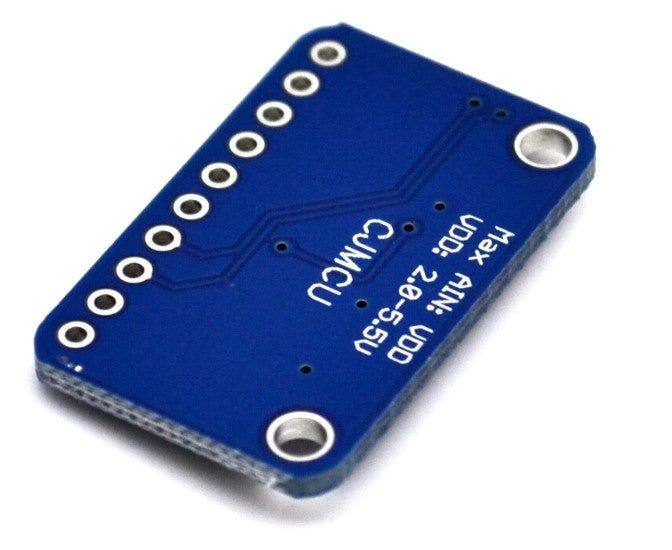

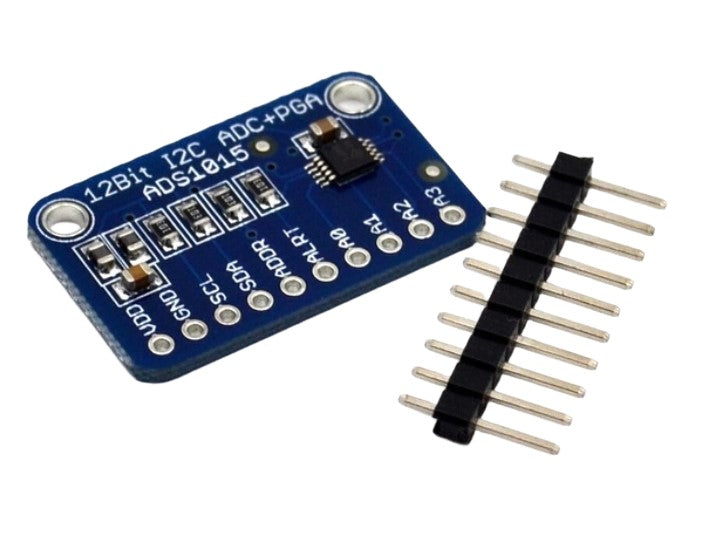

- ADC ADS1015 12-Bit 4 Channel with Programmable Gain Amplifier
- Header pins
Manila stock. Order before 16:00 PHT, ships today via J&T or LBC. Provincial: 1–3 working days.
Schools / class POs: we accept Purchase Orders for accredited schools and universities. contact us with your PO details.
Returns: 7-day inspection window for DOA units. Email proof of issue and we ship a replacement.
