Accelerometer Triple Axis Breakout MMA7361

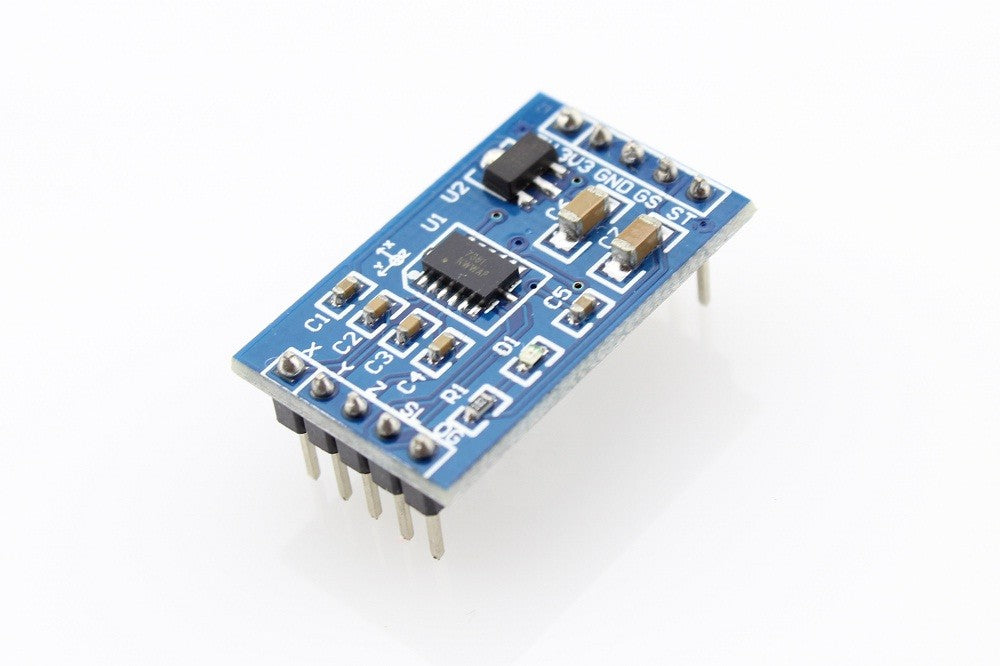

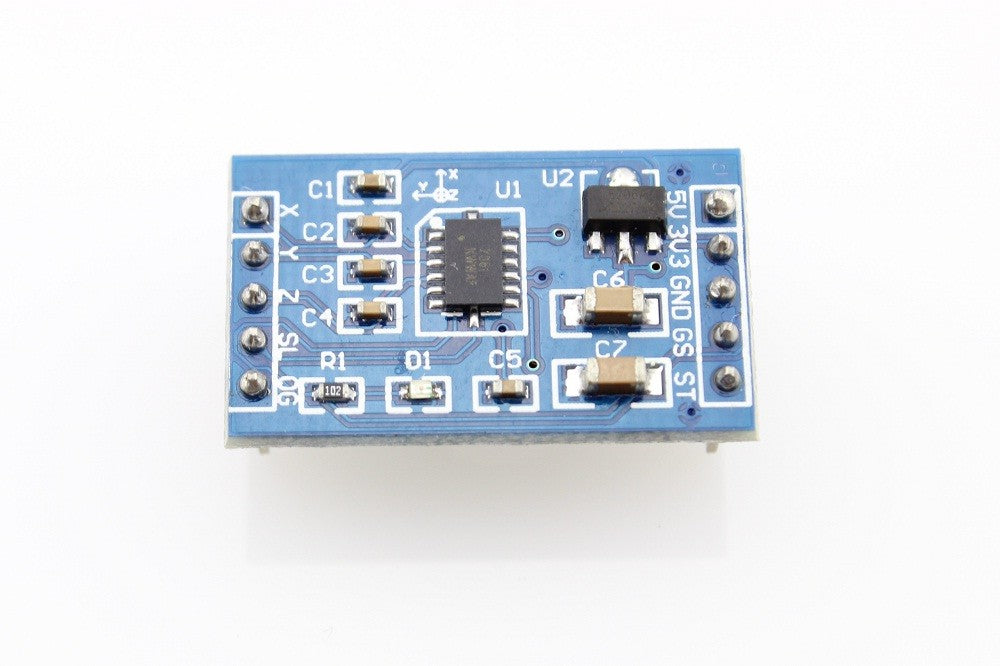

Accelerometer Triple Axis Breakout MMA7361 is a breakout board for Freescale's MMA7361L three-axis analog accelerometer. The Accelerometer Triple Axis Breakout MMA7361 requires a very low amount of power and has a g-select input which switches the accelerometer between ±1.5g and ±6g measurement ranges. Other features include a sleep mode, signal conditioning, a 1-pole low pass filter, temperature compensation, self test, and 0g-detect which detects linear free fall. Zero-g offset and sensitivity are factory set and require no external devices.

Specification

• Two selectable measuring ranges (±1.5g, ±6g)

• Low current consumption: 400 µA sleep mode: 3 µA

• Low voltage operation: 2.2 V - 3.6 V

• High sensitivity (800 mV/g at 1.5g)

• Fast turn on time (0.5 ms enable response time)

• Dimensions: 28 * 17mm
