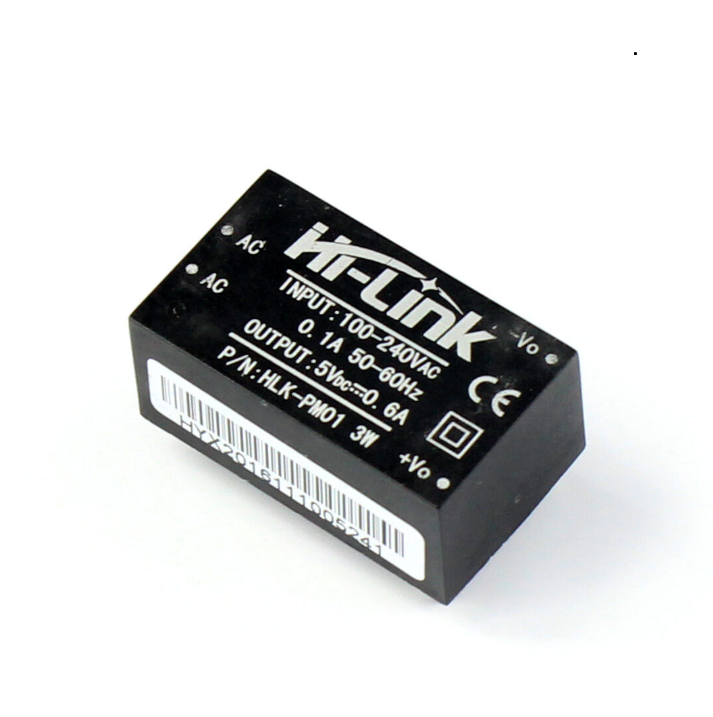

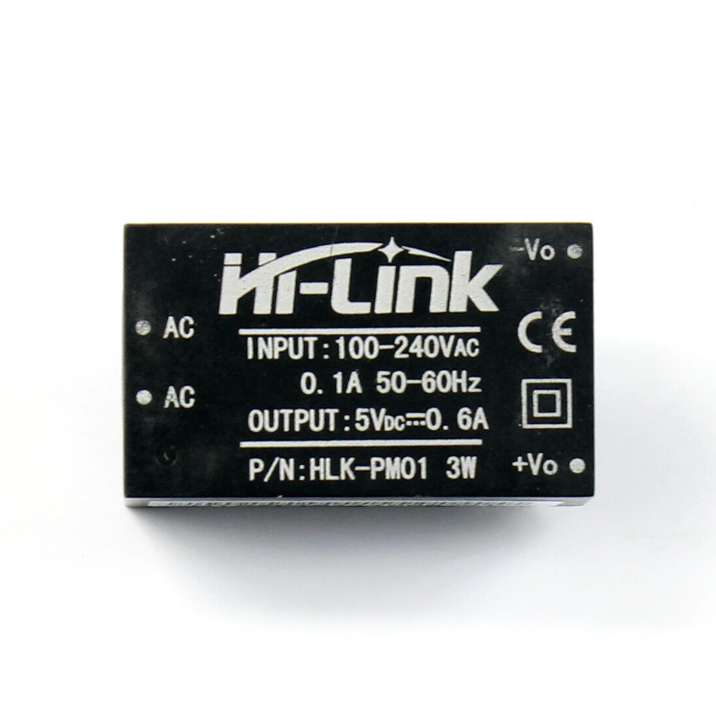

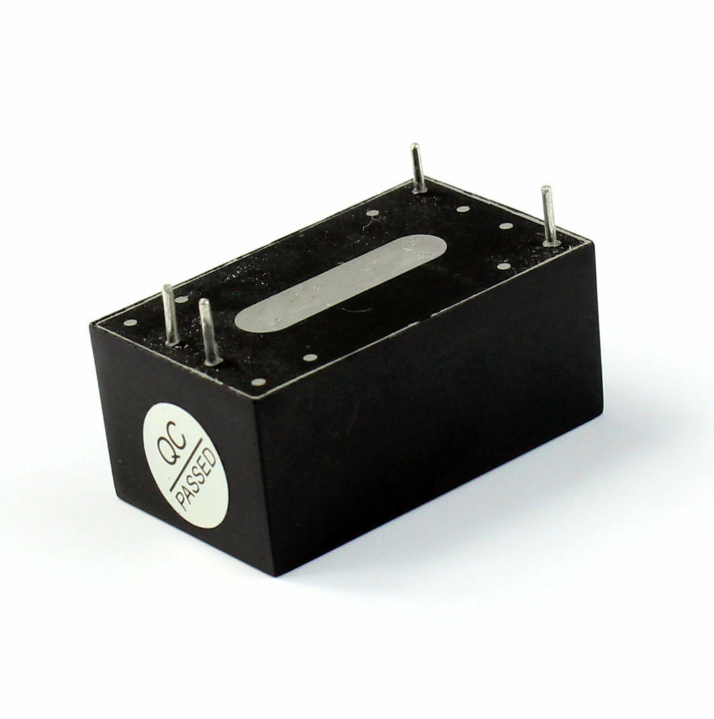

AC DC Power Module HLK PM01


The HLK-PM01 is a isolated power supply module with input range of 100 volt to 240 volt AC and output of DC 5 volt and power rating of 2 watt. Its ultra compact size makes it perfect to use in places where size is a constraint. It is a compact PCB mountable plastic enclosed power supply module. It replaces lots of parts from the traditional power supply like diodes, voltage regulator, transformer. There are many advantage of these modules, such as: Global input voltage range, low temperature rise, low power, high efficiency, high reliability, high security isolation, etc. It has been widely used in smart home, automation and control, communications equipment, instrumentation And other industries, when applied to electromagnetic compatibility relatively harsh environment.

  • Meet UL, CE requirements,
  • Ultra-thin, ultra-small
  • All voltage input (AC: 90 ~ 264V)
  • Low ripple and low noise
  • Output overload and short circuit protection
  • High efficiency, high power density
  • The product is designed to meet the requirements of EMC and Safety Test
  • Low power consumption, environmental protection, no-load loss <0.1W
  • Operation Temperature -20—+60 ?
  • Store Temperature -40—+80 ?
  • Relative humidity 5—95 %
  • Cooling way by radiation
  • Atmospheric pressure 80—106 Kpa
  • Sea level elevation =2000 m
  • Rated input voltage 100-240 VAc
  • Input voltage range 90-264 VAc
  • Maximum input current =0.2 A

AC DC Power Module HLK PM01

AC DC Power Module HLK PM01

147 in stock

Product Code

SKU:AM229

Regular price ₱ 245.00
Regular price Sale price ₱ 245.00
