Jumper Wire 4Pin Dual Female 70cm

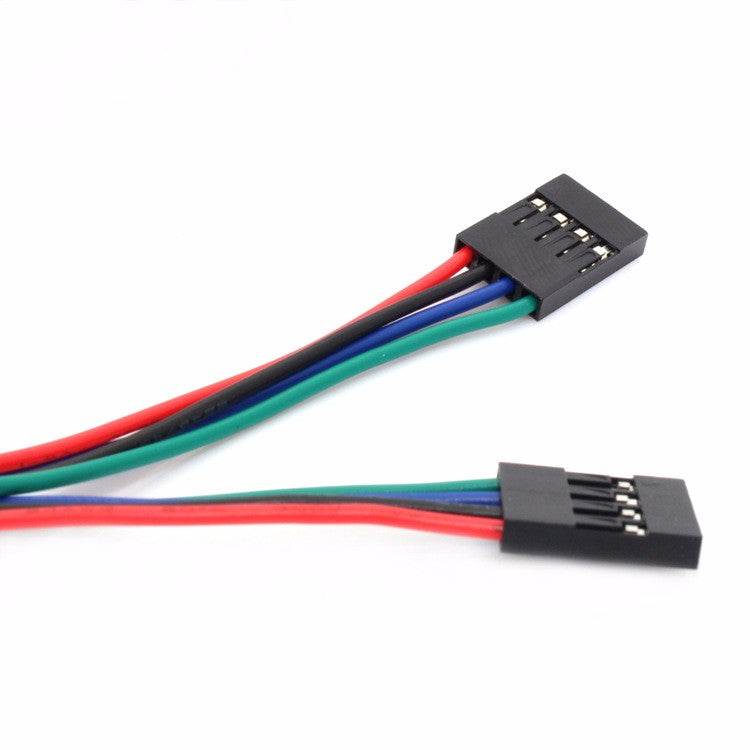

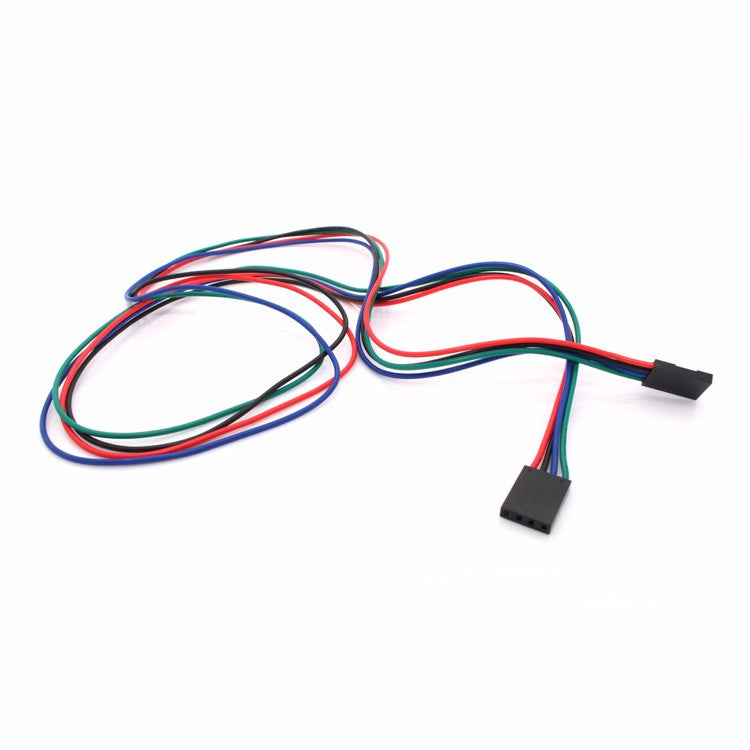

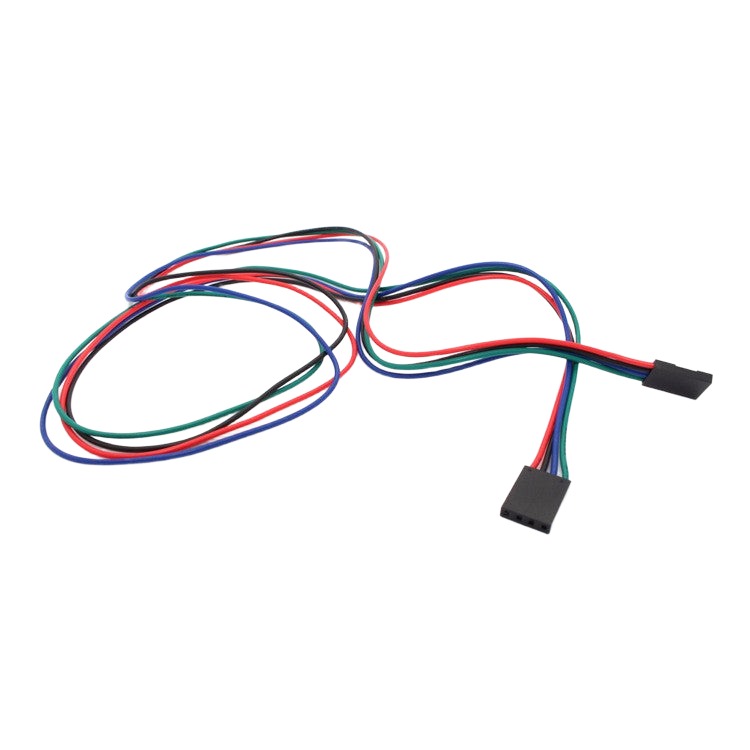

Jumper Wire 4Pin Dual Female 70cm - If you're looking for a way to connect your male header equipped boards, this one is for you. This female-to-female jumper wire connector lets you connect 4 male pins (either from a jumper wire or an equivalent header) to each head. It is 70cm long so it's perfect for embedded applications. For instance, if you want to burn or erase a bootloader from a 3D printer, you can easily connect these wires to the ICSP of your device and external programmer without that much trouble.

Specifications:

• Length: 70cm
• Wire Gauge: AWG 26
• Spacing: 0.1" standard breadboard spacing

Library: None

Inclusions: 1 x Jumper Wire 4Pin Dual Female 70cm

Documents: None

Frequently asked questions about Jumper Wire 4Pin Dual Female 70cm

Q1: What is a 4Pin Dual Female 70cm Jumper Wire?

A form of electrical wire with two female connections called a Jumper Wire 4Pin Dual Female 70cm can be used to join modules or components in a circuit. It is 70 cm long and features four wires or pins.

Q2: What are the wires and pins used for?

To transport electrical messages or power between modules or components in a circuit, pins or wires are utilised. Typically, the four wires or pins are color-coded according to their purpose, such as power (red), ground (black), and signal (usually yellow or green).

Q3: Use of a Jumper Wire 4Pin Dual Female 70cm: What's the point?

A Jumper Wire 4Pin Dual Female 70cm is used to link modules or components in a circuit in a practical and adaptable manner. It enables simple addition and removal of components without the need for soldering or crimping wires.

Q4: What kinds of circuits are compatible with a Jumper Wire 4Pin Dual Female 70cm?

Jumper Wire 4Pin Dual Female 70cm is suitable for use in a variety of circuits, including those for robots, IoT (Internet of Things), and many other projects.

Q5: A Jumper Wire 4Pin Dual Female 70cm: How Do I Use It?

One end of a Jumper Wire 4Pin Dual Female 70cm must be plugged into a component or module with a female connection, and the other end must be plugged into another component or module with a female connector to utilise it. To connect all the components or modules in your circuit, repeat this procedure as necessary.

Q6: Can I shorten or alter a 70cm Jumper Wire 4Pin Dual Female?

The length of a Jumper Wire 4Pin Dual Female 70cm may be altered to meet your needs. Yet, it's crucial to make sure you have the resources and expertise necessary to do so securely and successfully.

Q7: A Jumper Wire 4Pin Dual Female 70cm is available where?

Electronics stores, internet marketplaces, and specialist stores that offer electronic parts and accessories all sell Jumper Wire 4Pin Dual Female 70cm.

Q8: What further jumper wire varieties are there?

Male-to-male, male-to-female, and female-to-female combinations with various numbers of pins or wires and differing lengths are additional varieties of jumper cables.
