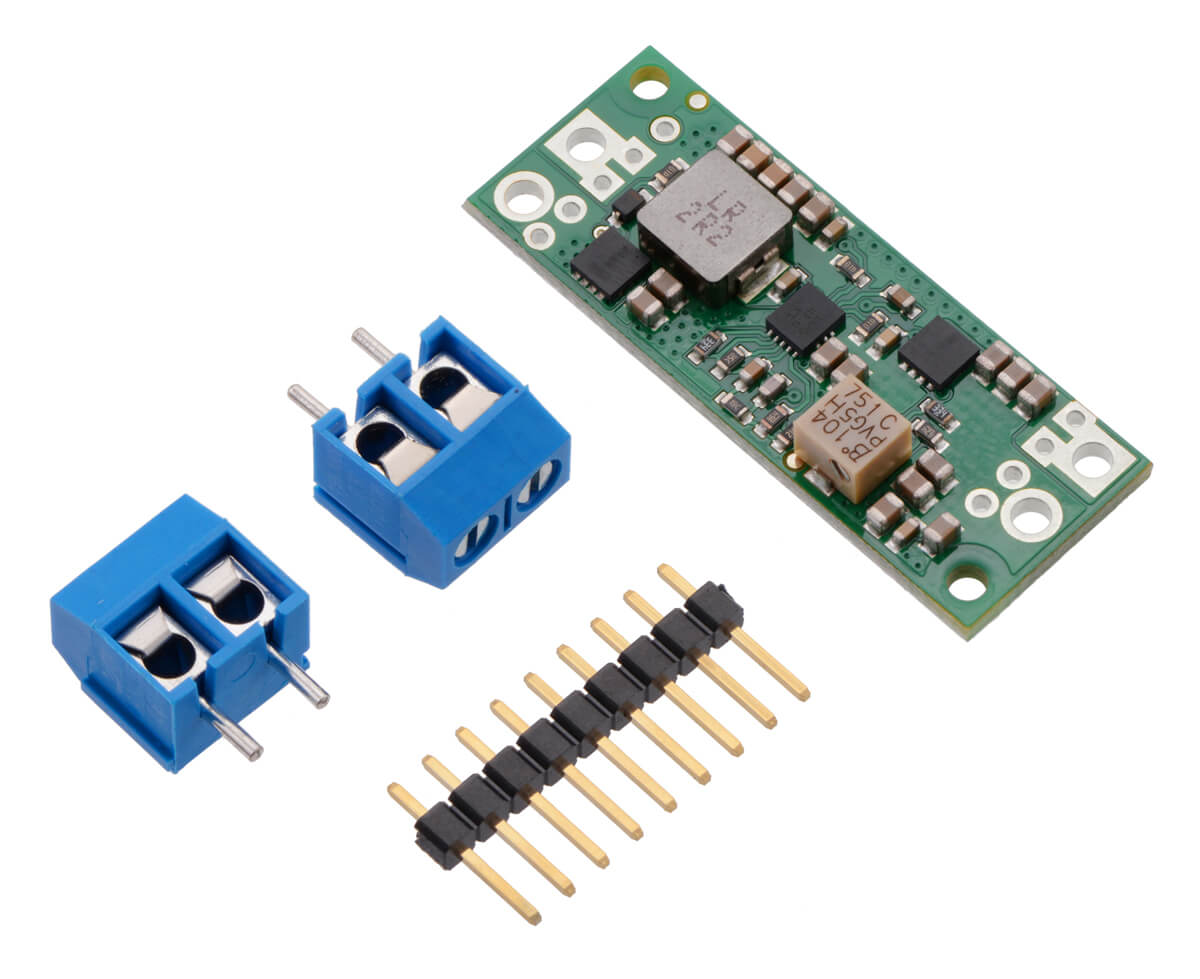

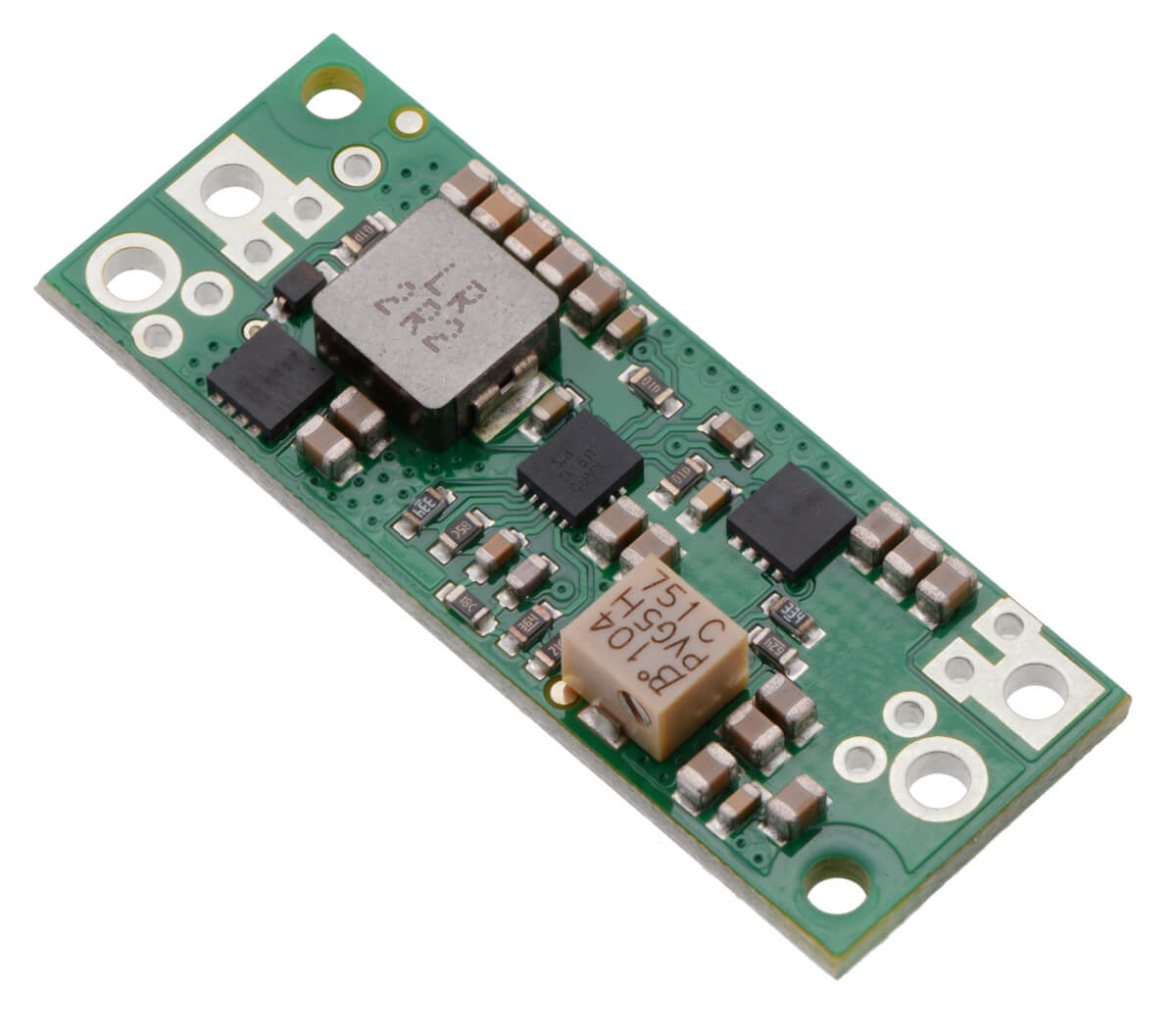

4.5-20V Fine-Adjust Step-Up Voltage Regulator U3V70A

The series of U3V70x are step-up voltage regulators. They are high-current, high-efficiency synchronous switching regulators that generate higher output voltages from input voltages from 2.9 V. The regulators inside promptly limits the input currents to 10 A.

Dimensions

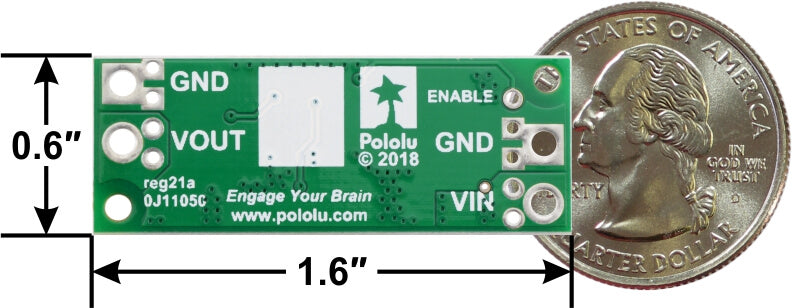

• Size: 0.6″ × 1.6″ × 0.22″1
• Weight: 3.9 g2
• Minimum operating voltage: 2.9 V
• Maximum operating voltage: 20 V3
• Maximum input current: 10 A4
• Minimum output voltage: 4.5 V5
• Maximum output voltage: 20 V5
• Reverse voltage protection?: Y

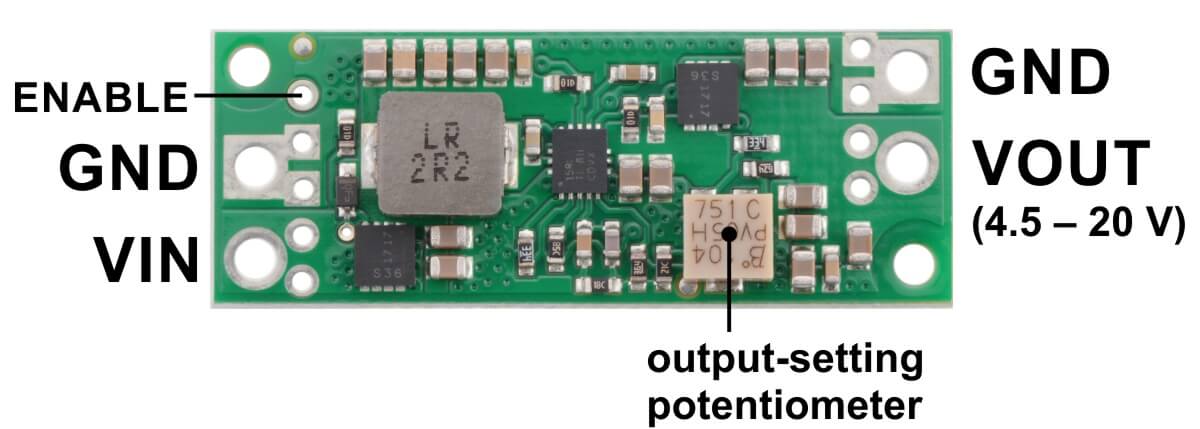

• Output type: adjustable 4.5-20V5
