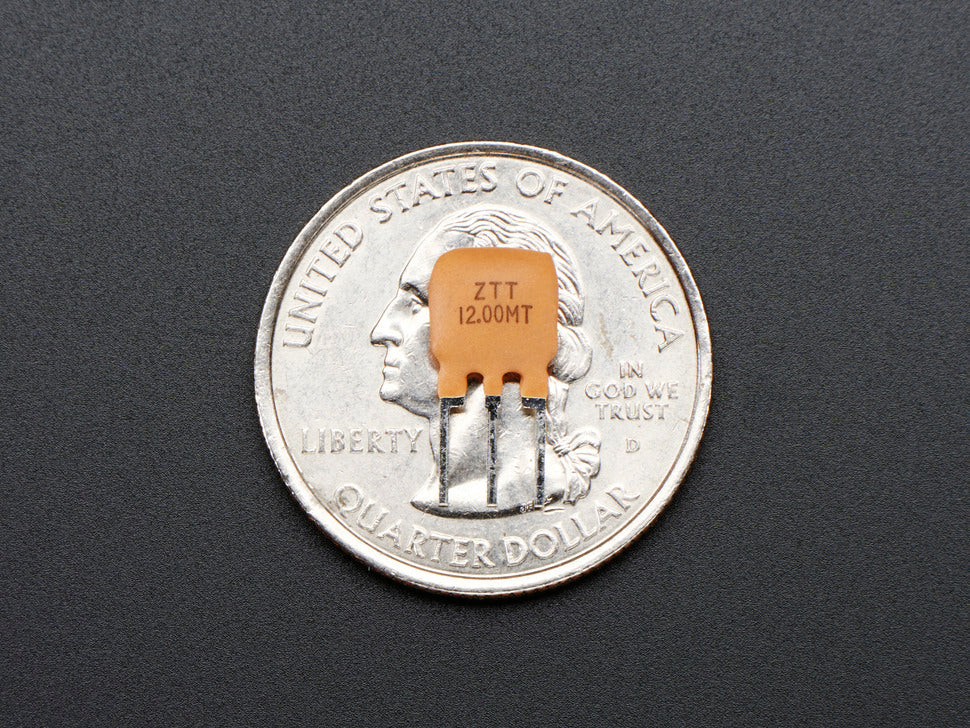

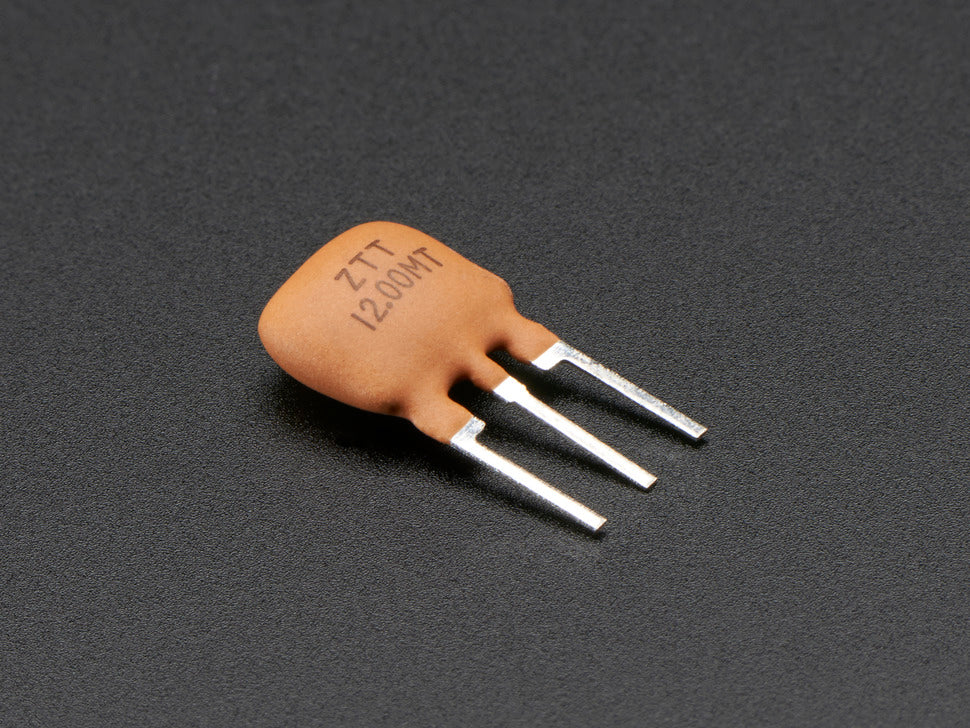

12 MHz Ceramic Resonator / Oscillator


Keep your microcontroller tickin' with a ceramic oscillator. These little devices are bread-board friendly (0.1" pin spacing) and easy to use. They act much like crystals with the 'stability' capacitors inside. They have 0.5% accuracy, great for every day electronics and microcontroller work and certainly precise enough for UART or other baud-rate generation. For ultra-high precision needs (Certain USB timing, long-term time-keeping, RF/PLL/VCO driving) you may need a crystal or temperate-compensated oscillator.

To use, connect the two outer pins to XTAL-in and XTAL-out on your circuit (they package is symmetric so use whichever outer pin) and the inner pin to ground. Check the datasheet for more specs.

TECHNICAL DETAILS

Total Dimensions: 14mm x 7mm x 4mm / .6" x .3" x .2"

Pin Length: 6mm / .24"

Datasheet


12 MHz Ceramic Resonator / Oscillator

12 MHz Ceramic Resonator / Oscillator

17 in stock

Product Code

SKU:1874

Regular price ₱ 59.00
Regular price Sale price ₱ 59.00
