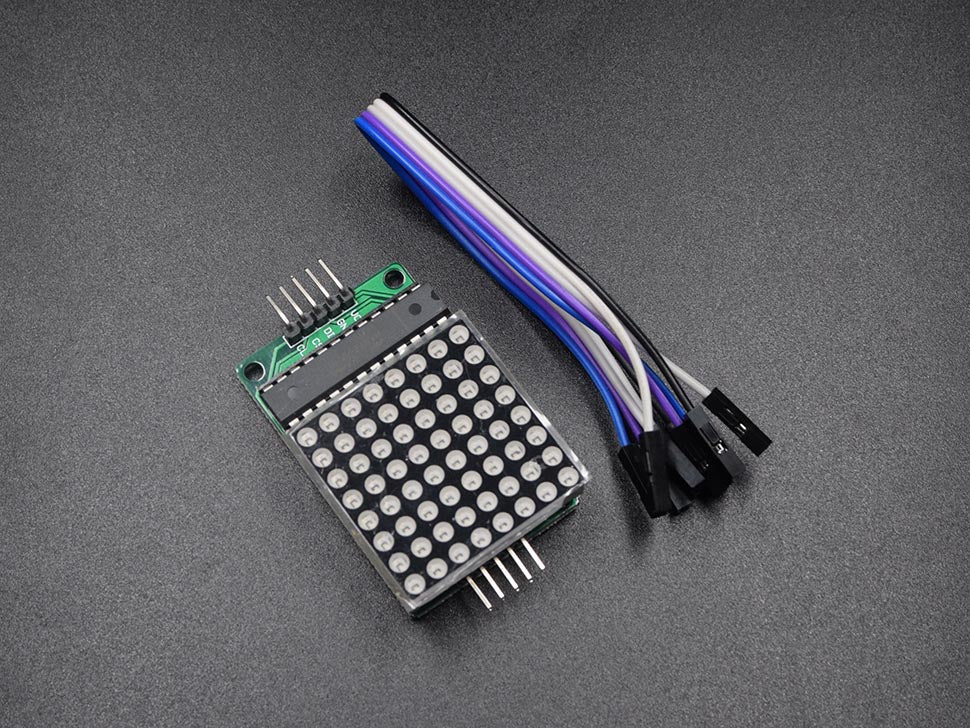

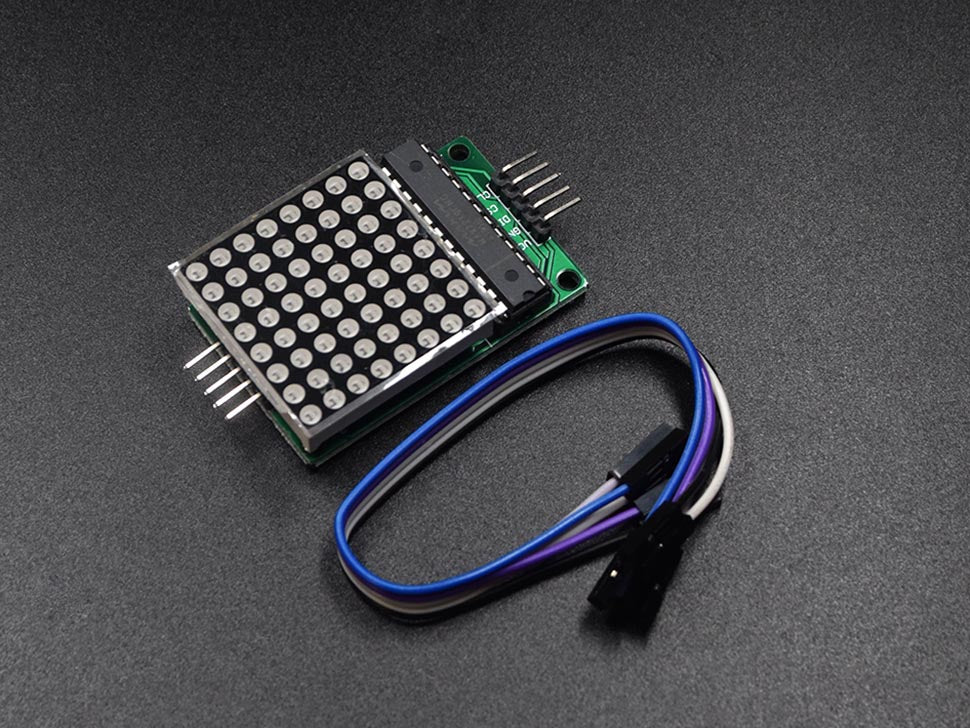

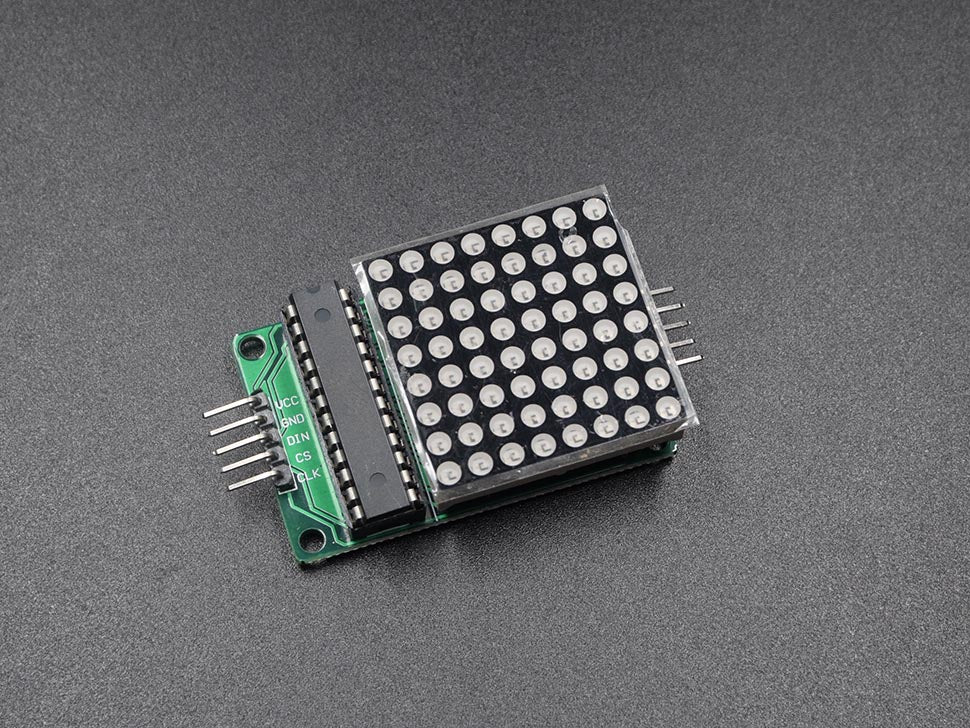

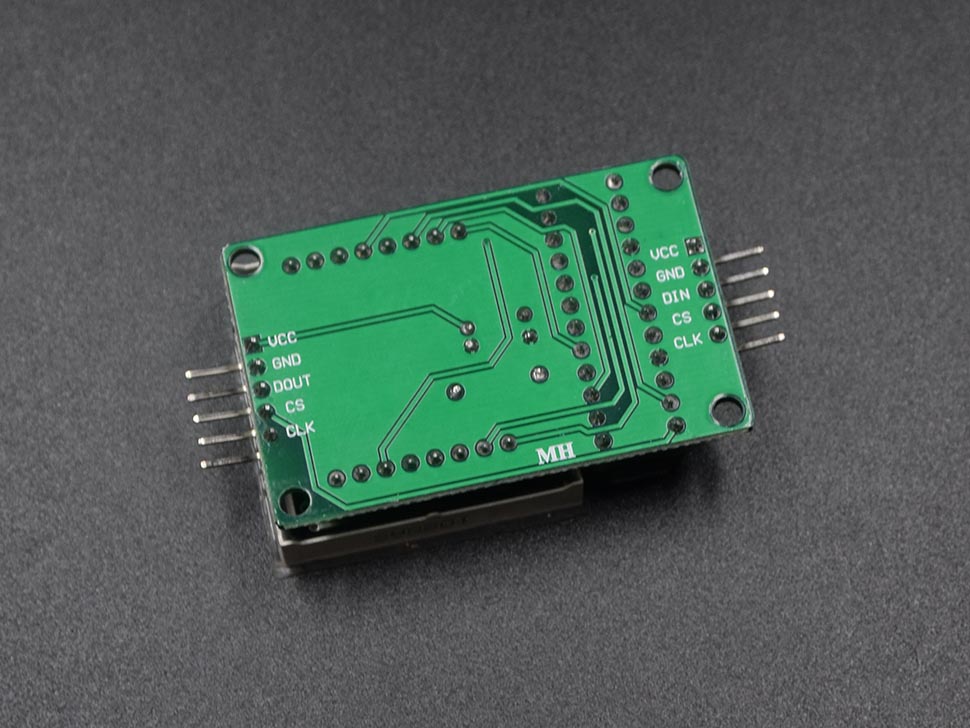

LED MAX7219 8x8 Matrix Display Module


Fancy adding a display to your projects? This 8x8 LED Matrix is for you. It is based on a MAX7219 LED driver chip, which is capable of controlling 64 LEDs with only 3 data lines from the Arduino. Also, since it is a serially driven device, you can link multiple of these modules together and still work with only three data lines.

Specifications:
  • Operating Voltage: DC 4.7V~5.3V
  • Operating Current: 320mA
  • Max Operating Current: 2A
  • Operating Temperature: 0~50 Degree
Library: https://github.com/AndreasBur/MaxMatrix
Inclusions: 1 x LED MAX7219 8x8 Matrix Display Module
Documents:

LED MAX7219 8x8 Matrix Display Module

LED MAX7219 8x8 Matrix Display Module
